HPE ProLiant MicroServer Gen10 Plus User Manual

Subsystem LED behavior
System board 1 flash
Processor 2 flashes
Memory 3 flashes
Riser board PCIe slots 4 flashes
FlexibleLOM 5 flashes
Removable HPE Smart Array SR Gen10 controller 6 flashes
System board PCIe slots 7 flashes
Power backplane or storage backplane 8 flashes
Power supply 9 flashes

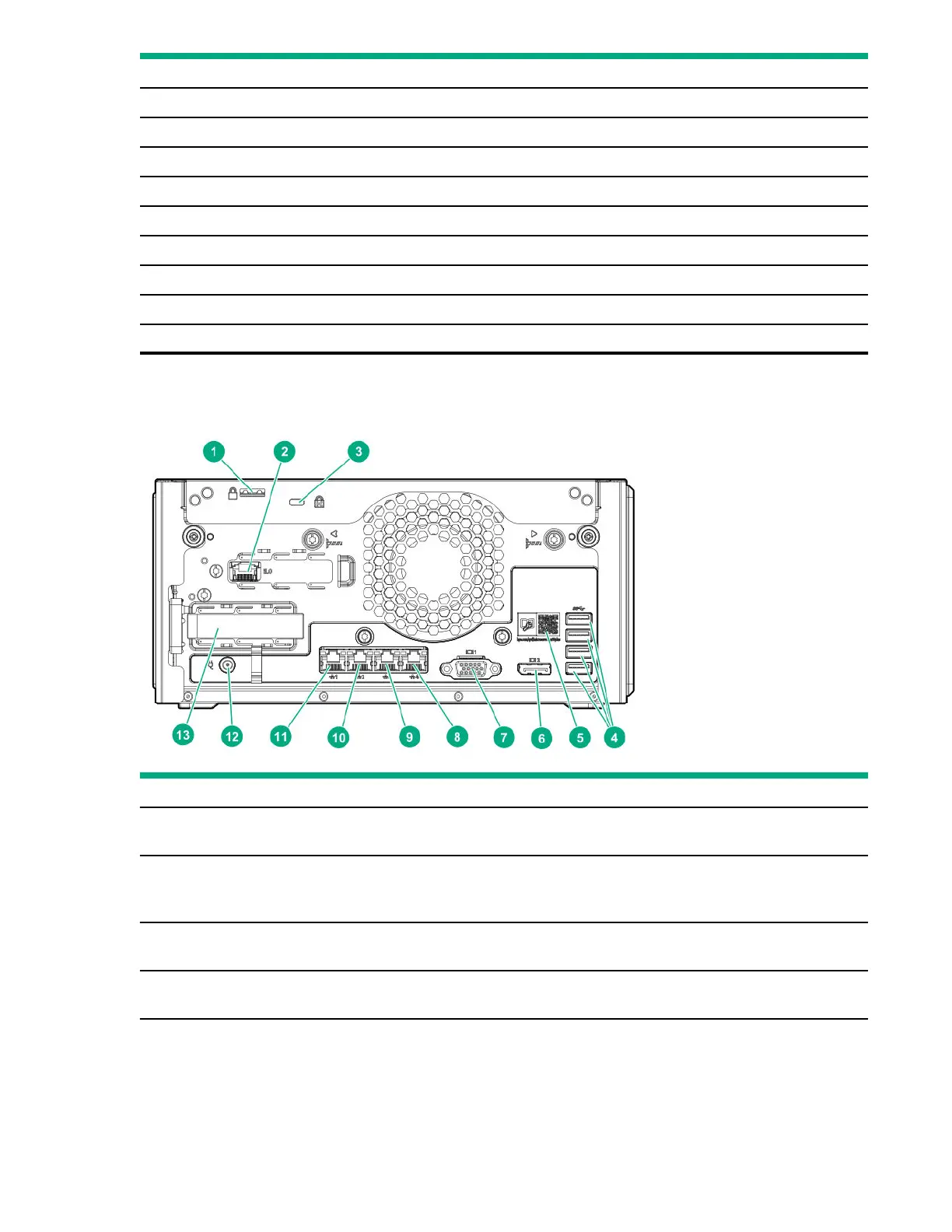

Rear panel components
Item Component Description
1 Padlock eye To lock the chassis cover and prevent access to the internal
components, attach a padlock here.
2 iLO dedicated network port To connect iLO to a dedicated management network, connect a
standard Ethernet cable here. This port requires the installation of the
iLO enablement option.
3 Kensington security slot To secure the server to a heavy or immovable object, connect an
antitheft security cable here.
4 USB 32 Gen 1 Type-A ports
1
Connect USB devices. These ports are backwards compatible with
earlier USB Type-A version devices.
Table Continued
8 Component identification

HPE ProLiant MicroServer Gen10 Plus Specifications

General

Processor Cores	4
Memory Slots	2
Network	2 x 1GbE ports
Processor	Intel Xeon E-2224
Processor Base Frequency	3.4 GHz
Storage	4 LFF SATA HDD bays
Storage Controller	Embedded SATA controller
Expansion Slots	1 PCIe 3.0 x16 slot
Form Factor	Ultra-micro tower
Remote Management	HPE iLO 5
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi
Dimensions	22.97 x 24.5 x 24.5 cm (8.98 x 9.65 x 9.65 in)
