HPE ProLiant MicroServer Gen10 Plus User Manual

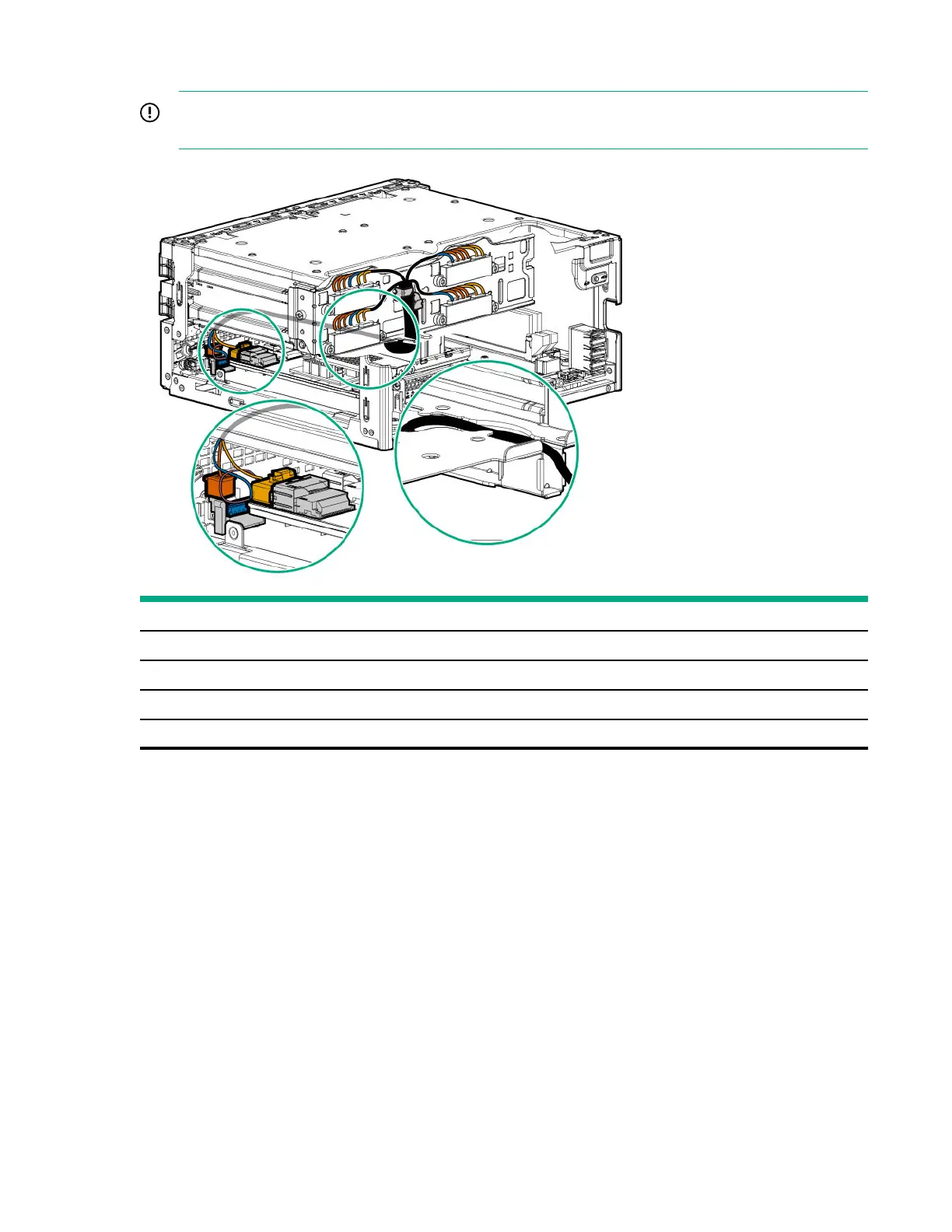

Four-bay drive cabling: Smart Array controller cabling
IMPORTANT: The four-bay non-hot-plug drive cable assembly consists of the drive and ambient sensor cables. If
any of these cables becomes defective, the entire cable assembly will need to be replaced.
Cable color Description
Orange Drive power cable
Blue Drive sideband signal cable
Gold Drive data cable
Pink Thermal ambient sensor cable
Cabling 63

HPE ProLiant MicroServer Gen10 Plus Specifications

General

Processor Cores	4
Memory Slots	2
Network	2 x 1GbE ports
Processor	Intel Xeon E-2224
Processor Base Frequency	3.4 GHz
Storage	4 LFF SATA HDD bays
Storage Controller	Embedded SATA controller
Expansion Slots	1 PCIe 3.0 x16 slot
Form Factor	Ultra-micro tower
Remote Management	HPE iLO 5
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi
Dimensions	22.97 x 24.5 x 24.5 cm (8.98 x 9.65 x 9.65 in)
