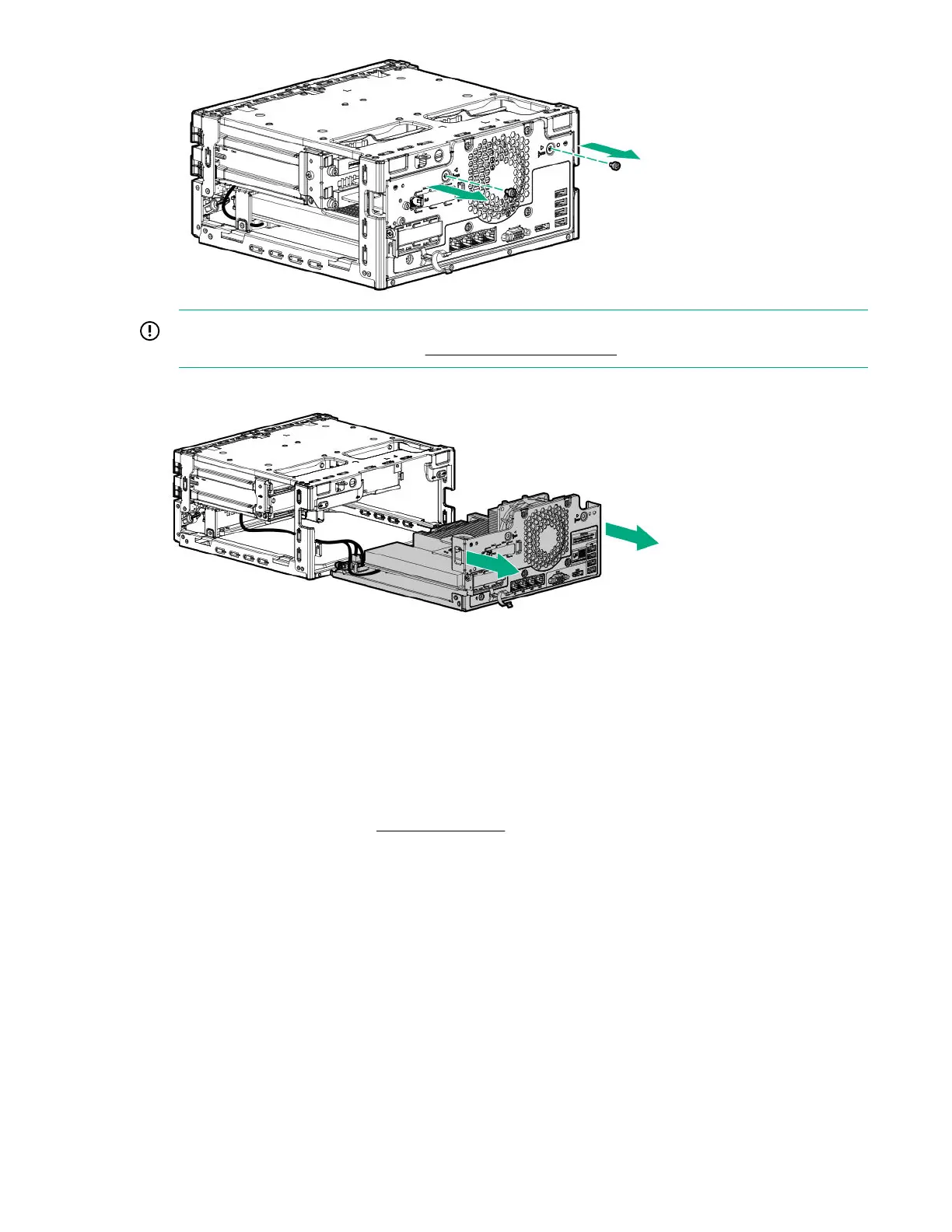

IMPORTANT: The storage cables connect the system board to the chassis. If you are completely separating the

system board assembly from the chassis, disconnect the storage cabling.

9. Use the blue touchpoints on both sides of the tray to pull out the system board assembly from the chassis.

Installing the system board assembly

Prerequisites

Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.

Procedure

If the storage cables were removed, reconnect the cables.

2. Install the system board assembly:

a. Slide the system board assembly into the chassis (callout 1).

b. Install the system board assembly screws (callout 2).

Operations
