HPE ProLiant MicroServer Gen10 Plus User Manual

Installing a DIMM
The server uses memory to perform almost all its operations. Upgrading the server memory capacity leads to faster boot-
up, processing period, and timely responses to promote optimum system performance.
In a single-DIMM configuration, install the DIMM in the DIMM slot 2A.
Procedure
1. Power down the server.
2. Disconnect the power cord from the AC source.
3. Remove the power adapter cord from the power cord clip, and then disconnect the power adapter from the server.
4. Disconnect all peripheral cables from the server.
5. If installed, unlock and remove the security padlock and/or the Kensington security lock.
For more information, see the lock documentation.

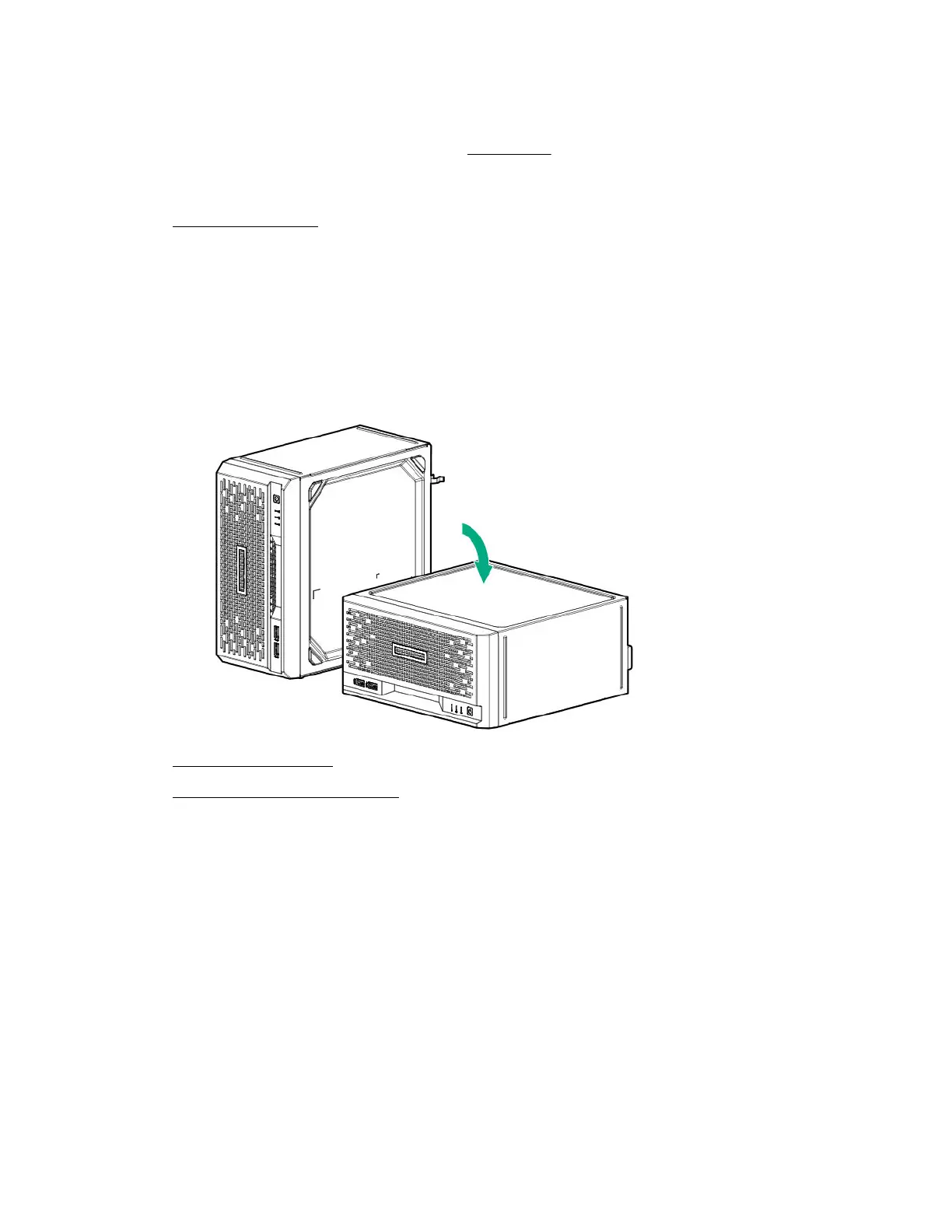

6. If the server is in a vertical orientation, position the server in a horizontal orientation.
7.
Remove the chassis cover.
8.
Remove the system board assembly.
9.
Install the DIMM:
a. Open the DIMM slot latches (callout 1).
b. Align the notch on the bottom edge of the DIMM with the keyed surface of the DIMM slot, and then fully press
the DIMM into the slot until the latches snap back into place (callout 2).
44
Hardware options installation

HPE ProLiant MicroServer Gen10 Plus Specifications

General

Processor Cores	4
Memory Slots	2
Network	2 x 1GbE ports
Processor	Intel Xeon E-2224
Processor Base Frequency	3.4 GHz
Storage	4 LFF SATA HDD bays
Storage Controller	Embedded SATA controller
Expansion Slots	1 PCIe 3.0 x16 slot
Form Factor	Ultra-micro tower
Remote Management	HPE iLO 5
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi
Dimensions	22.97 x 24.5 x 24.5 cm (8.98 x 9.65 x 9.65 in)
