Cabling
Cabling overview
This section provides guidelines that help you make informed decisions about cabling the server and hardware options to
optimize performance.
CAUTION: When routing cables, always be sure that the cables are not in a position where they can be pinched or
crimped.
Storage cabling

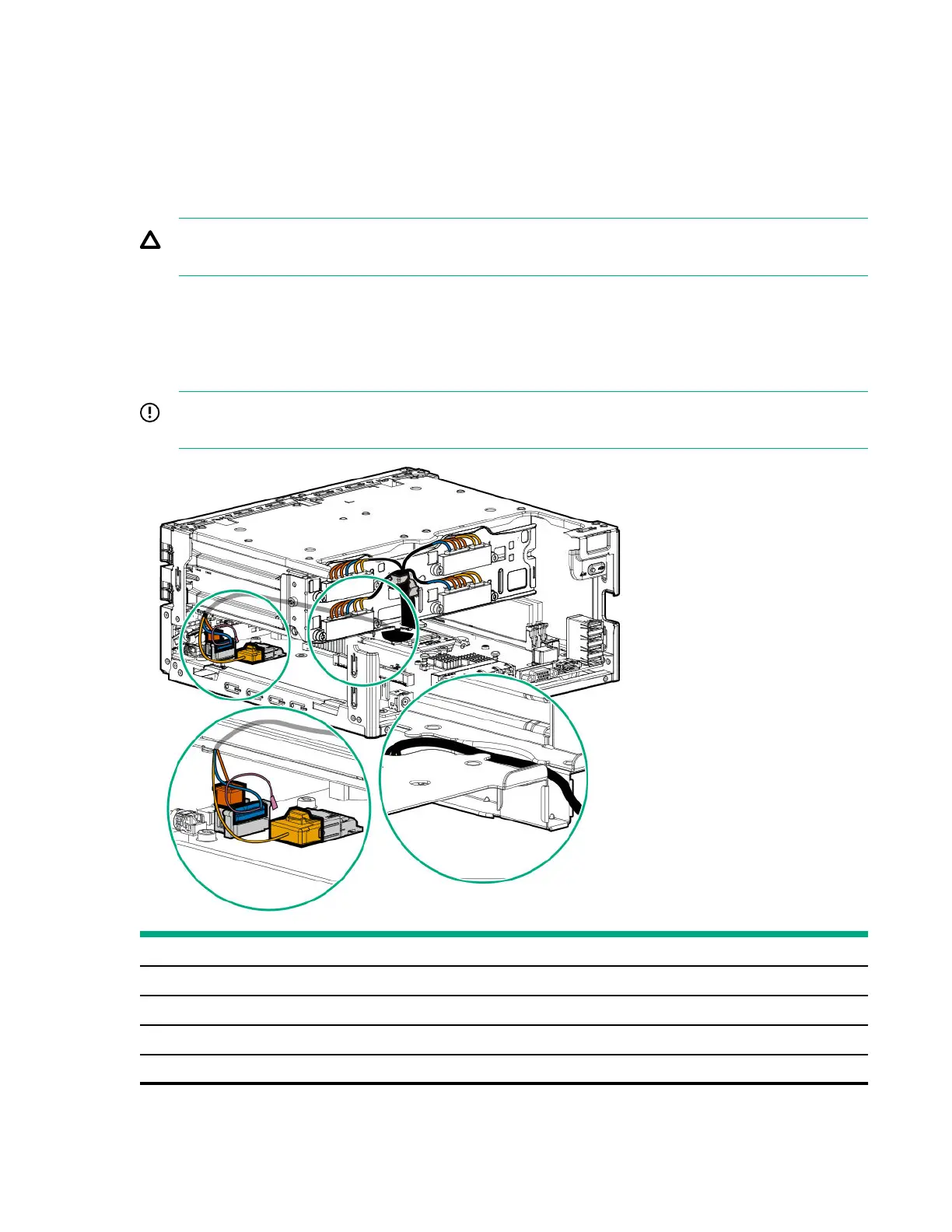

Four-bay drive cabling: Onboard SATA controller cabling
IMPORTANT: The four-bay non-hot-plug drive cable assembly consists of the drive and ambient sensor cables. If
any of these cables becomes defective, the entire cable assembly will need to be replaced.
Cable color Description
Orange Drive power cable
Blue Drive sideband signal cable
Gold Drive data cable
Pink Thermal ambient sensor cable
