HPE ProLiant MicroServer Gen10 Plus User Manual

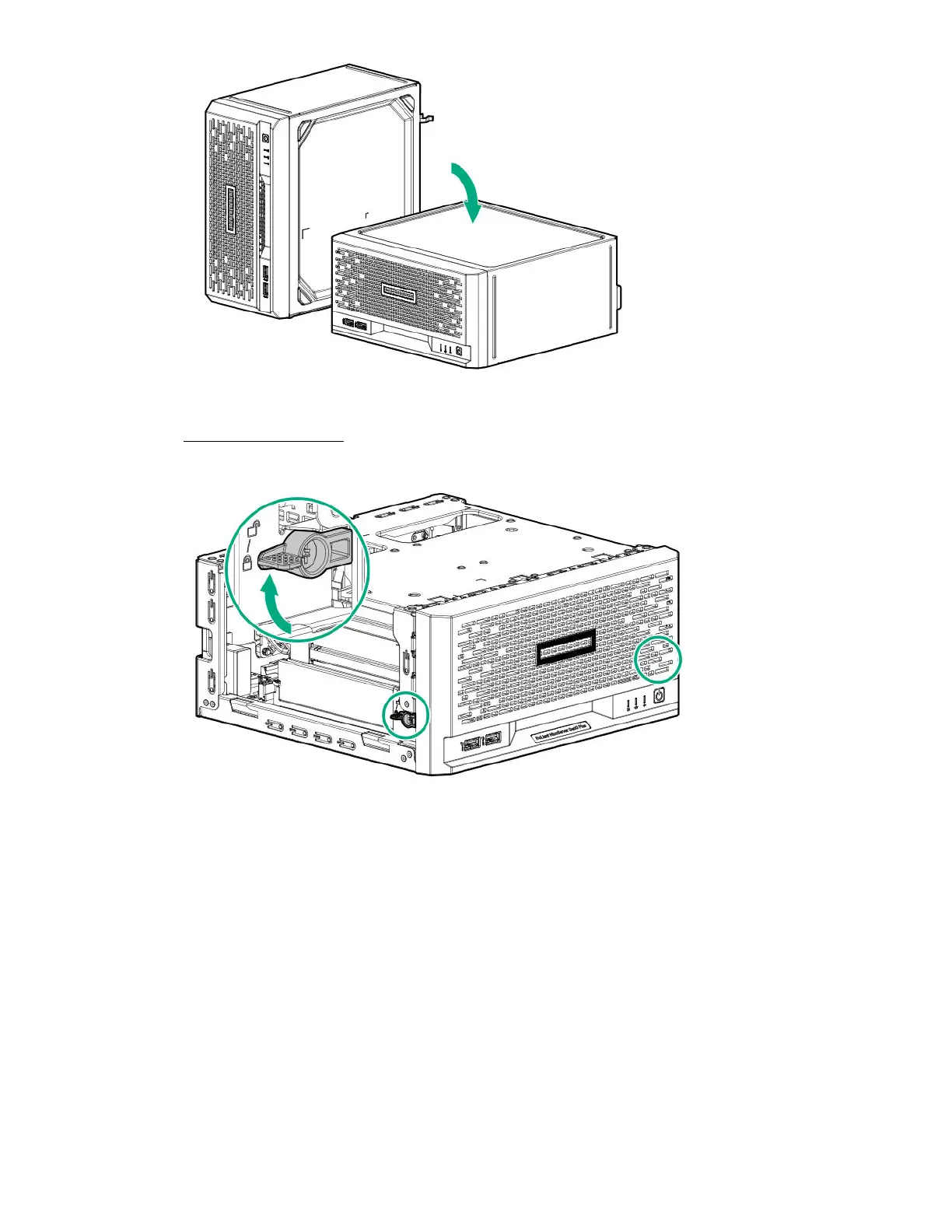

6. If the front bezel is locked, do the following:
a. Remove the chassis cover.
b.
Switch the bezel locks upward.
7.
To remove an unlocked front bezel, do the following:
a. Pivot the bottom part of the bezel upward (callout 1).
b. Release the bezel tabs from their chassis openings (callout 2).
16
Operations

HPE ProLiant MicroServer Gen10 Plus Specifications

General

Processor Cores	4
Memory Slots	2
Network	2 x 1GbE ports
Processor	Intel Xeon E-2224
Processor Base Frequency	3.4 GHz
Storage	4 LFF SATA HDD bays
Storage Controller	Embedded SATA controller
Expansion Slots	1 PCIe 3.0 x16 slot
Form Factor	Ultra-micro tower
Remote Management	HPE iLO 5
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi
Dimensions	22.97 x 24.5 x 24.5 cm (8.98 x 9.65 x 9.65 in)
