HPE ProLiant MicroServer Gen10 Plus User Manual

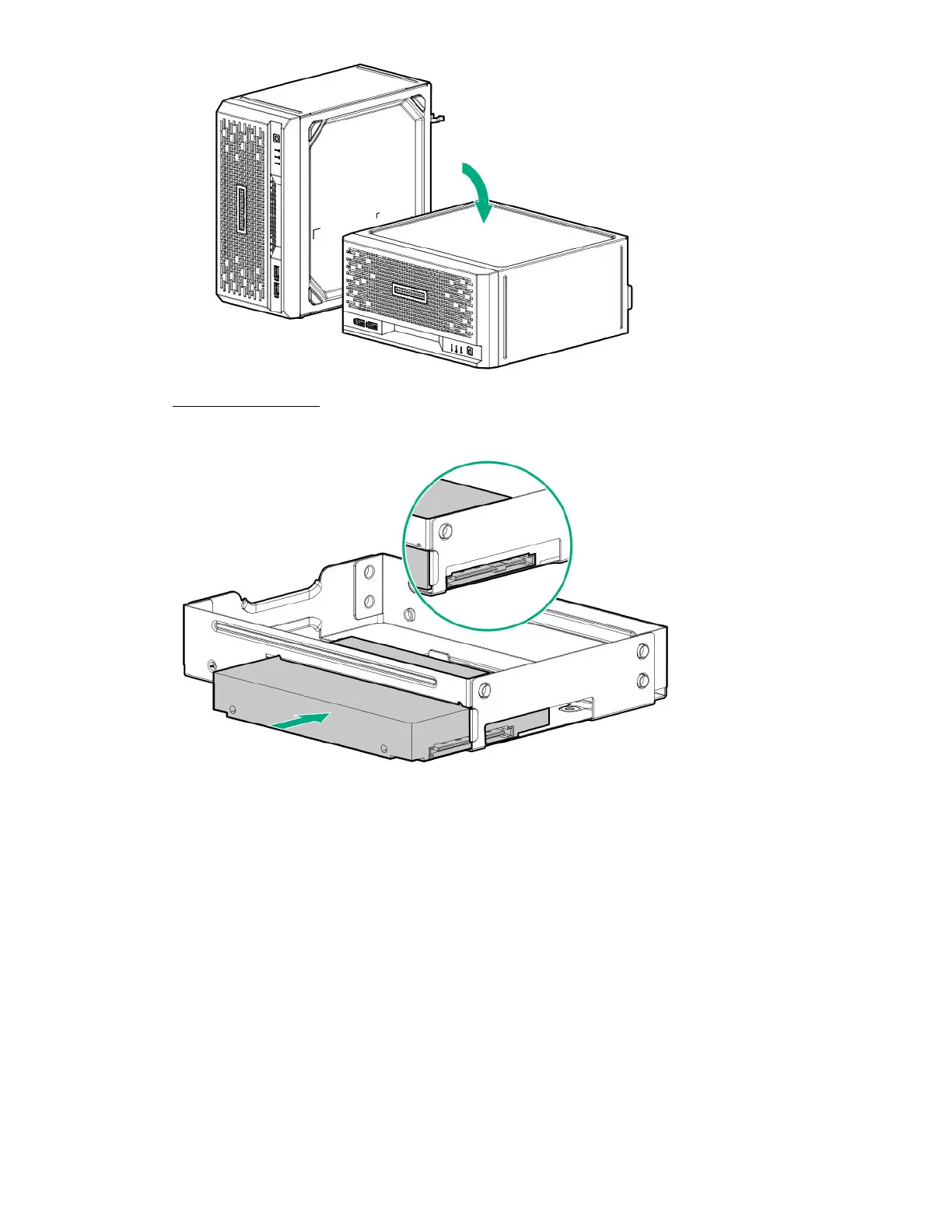

7. Remove the front bezel.
8. Install the SFF drive in the drive converter tray.
9.
Follow the callout sequence in the following illustration to install the screws included in the converter kit on the
bottom side of the drive converter tray.
40
Hardware options installation

HPE ProLiant MicroServer Gen10 Plus Specifications

General

Processor Cores	4
Memory Slots	2
Network	2 x 1GbE ports
Processor	Intel Xeon E-2224
Processor Base Frequency	3.4 GHz
Storage	4 LFF SATA HDD bays
Storage Controller	Embedded SATA controller
Expansion Slots	1 PCIe 3.0 x16 slot
Form Factor	Ultra-micro tower
Remote Management	HPE iLO 5
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi
Dimensions	22.97 x 24.5 x 24.5 cm (8.98 x 9.65 x 9.65 in)
