If the server is in rack mode, remove the server from the rack .
5. Remove the access panel.

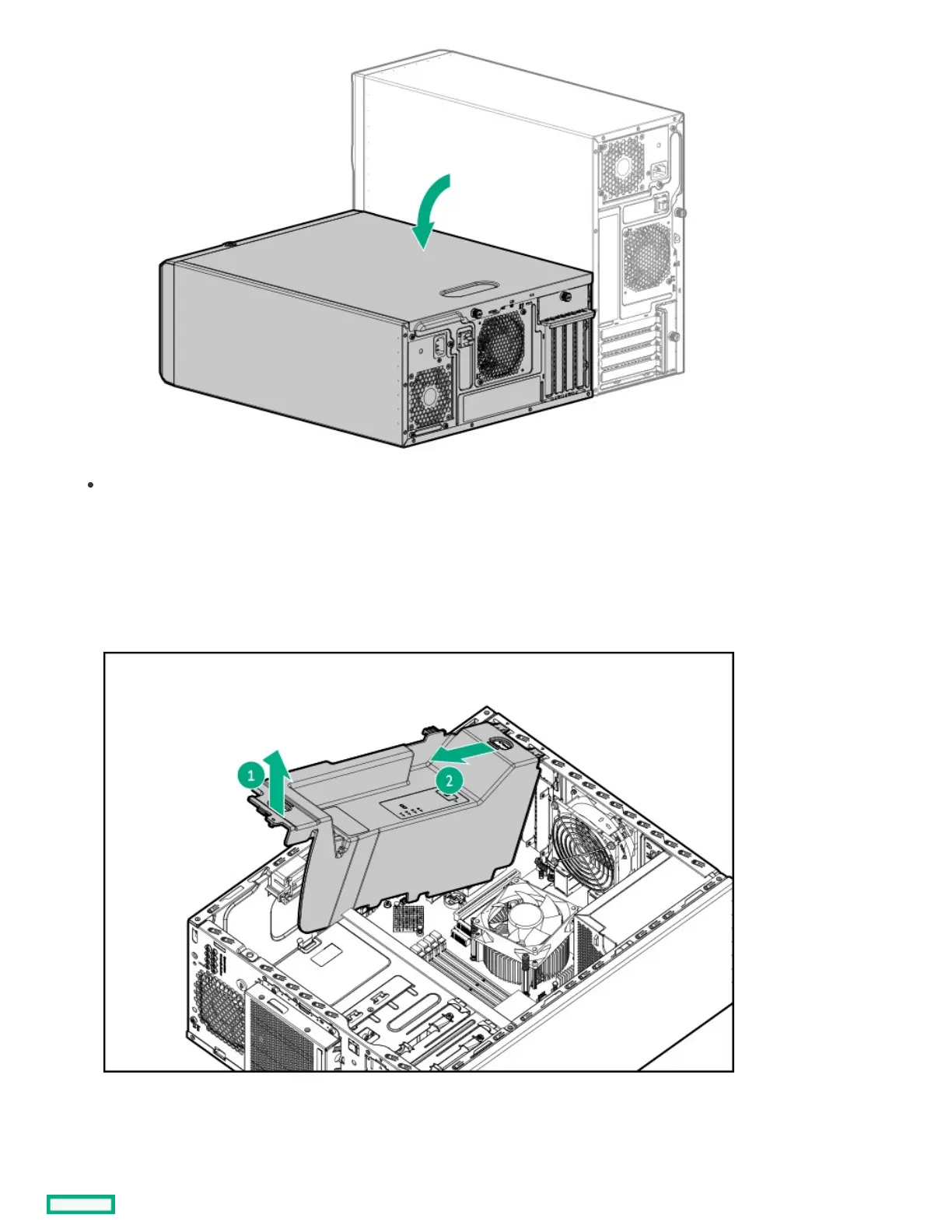

6. Remove the air baffle:
a. Lift the front end of the baffle from the chassis (callout 1).
b. Remove the baffle tabs from its rear chassis slots (callout 2).
ResultsResults
To replace the component, reverse the removal procedure.
