Storage controller cablingStorage controller cabling
SubtopicsSubtopics
4 LFF non-hot-plug drive controller cabling4 LFF non-hot-plug drive controller cabling
4 LFF / 8 SFF hot-plug drive controller cabling4 LFF / 8 SFF hot-plug drive controller cabling

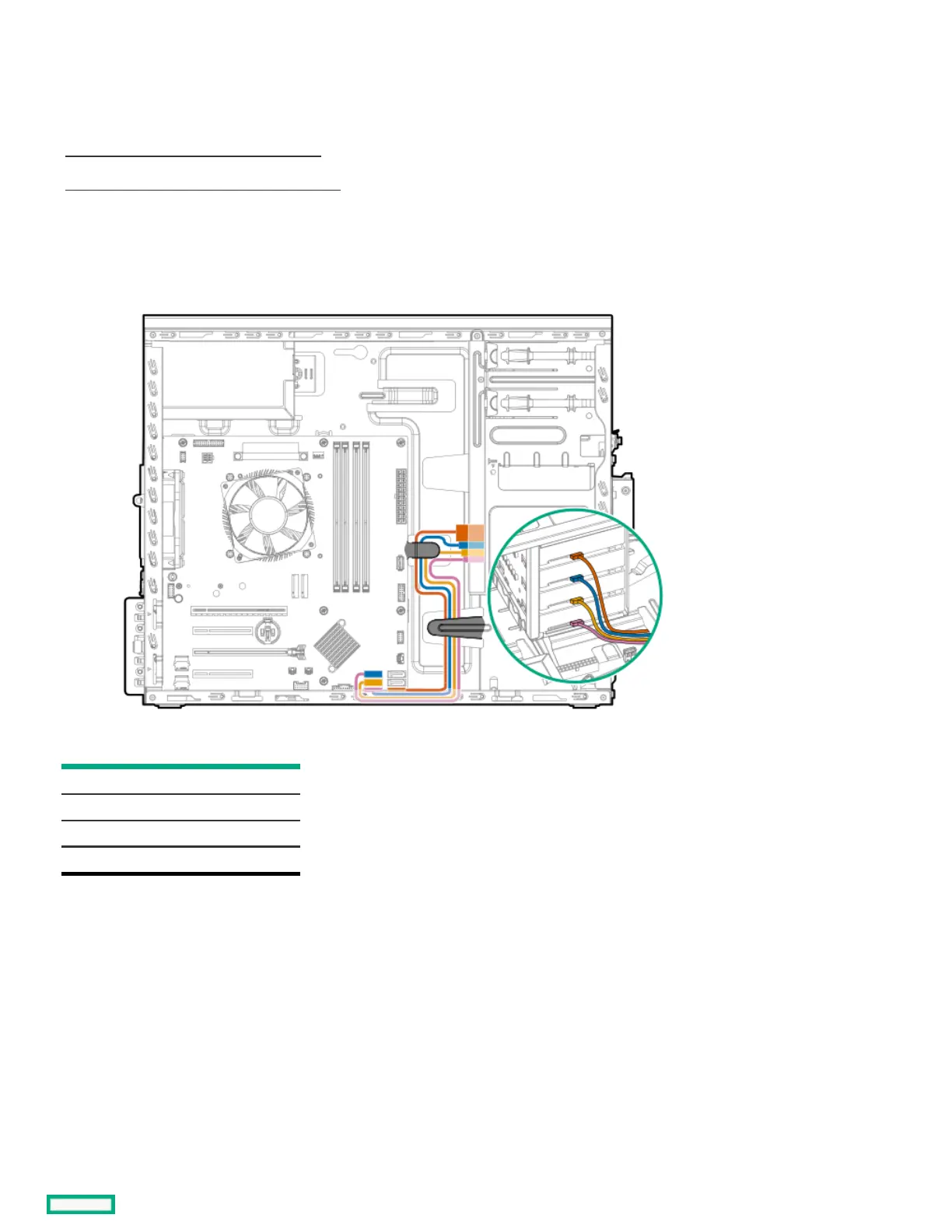

4 LFF non-hot-plug drive controller cabling4 LFF non-hot-plug drive controller cabling
ColorColor DescriptionDescription
Orange Onboard SATA port 1 cable
Blue Onboard SATA port 2 cable
Gold Onboard SATA port 3 cable
Pink Onboard SATA port 4 cable
4 LFF / 8 SFF hot-plug drive controller cabling4 LFF / 8 SFF hot-plug drive controller cabling
4 LFF / 8 SFF hot-plug drive: Onboard SATA cabling4 LFF / 8 SFF hot-plug drive: Onboard SATA cabling
The onboard SATA cabling for the 4 LFF and 8 SFF drive configurations use a single Mini-SAS splitter cable.
HPE ProLiant ML30 Gen10 Plus Server Maintenance and Service Guide 161
