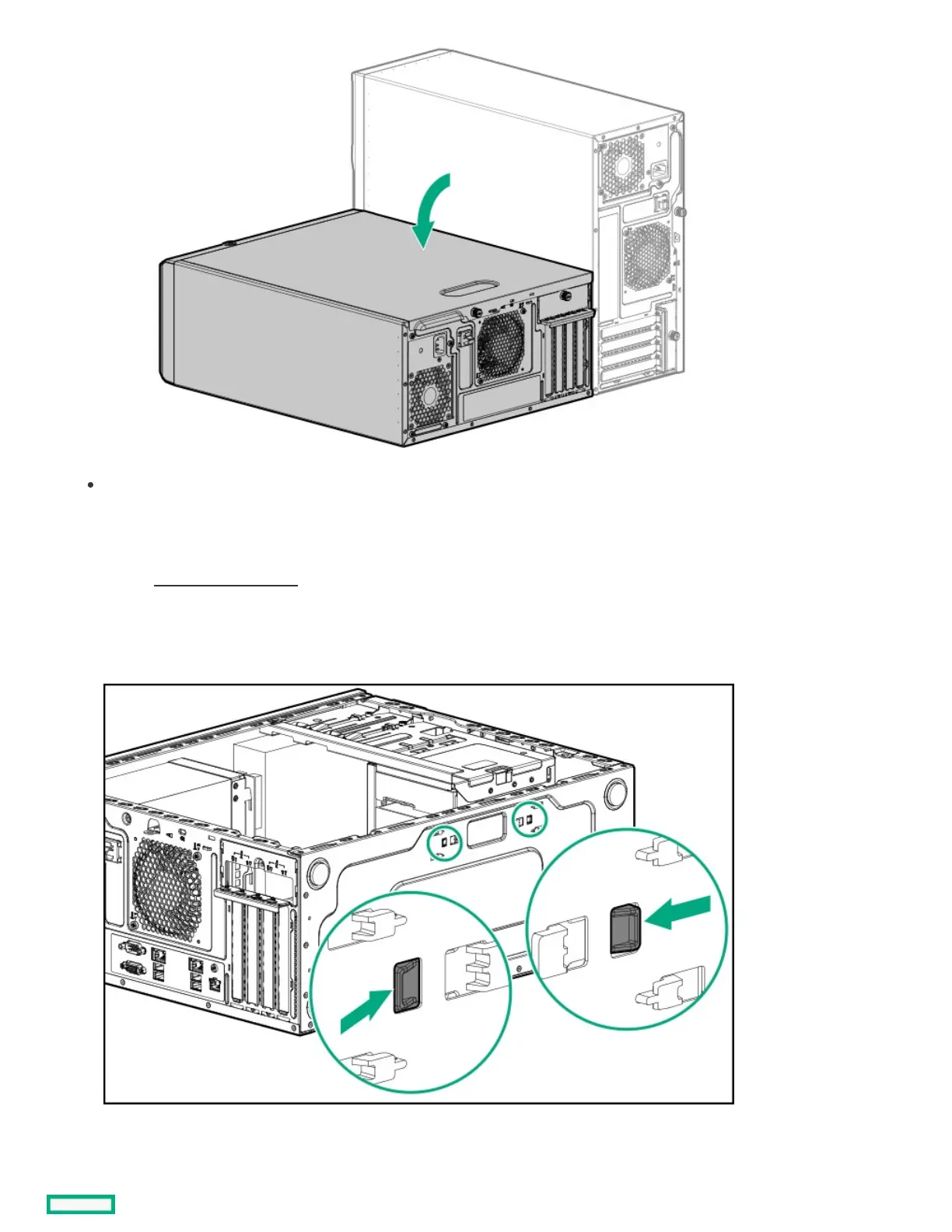

If the server is in rack mode, remove the server from the rack .
5. Remove the access panel.
6. If installed, remove the air baffle .
7. If installed, remove the energy pack.
8. Remove the energy pack holders:
a. Push the latches inwards to release the holders on the bottom of the chassis.
b. Remove the energy pack holders from the chassis.
