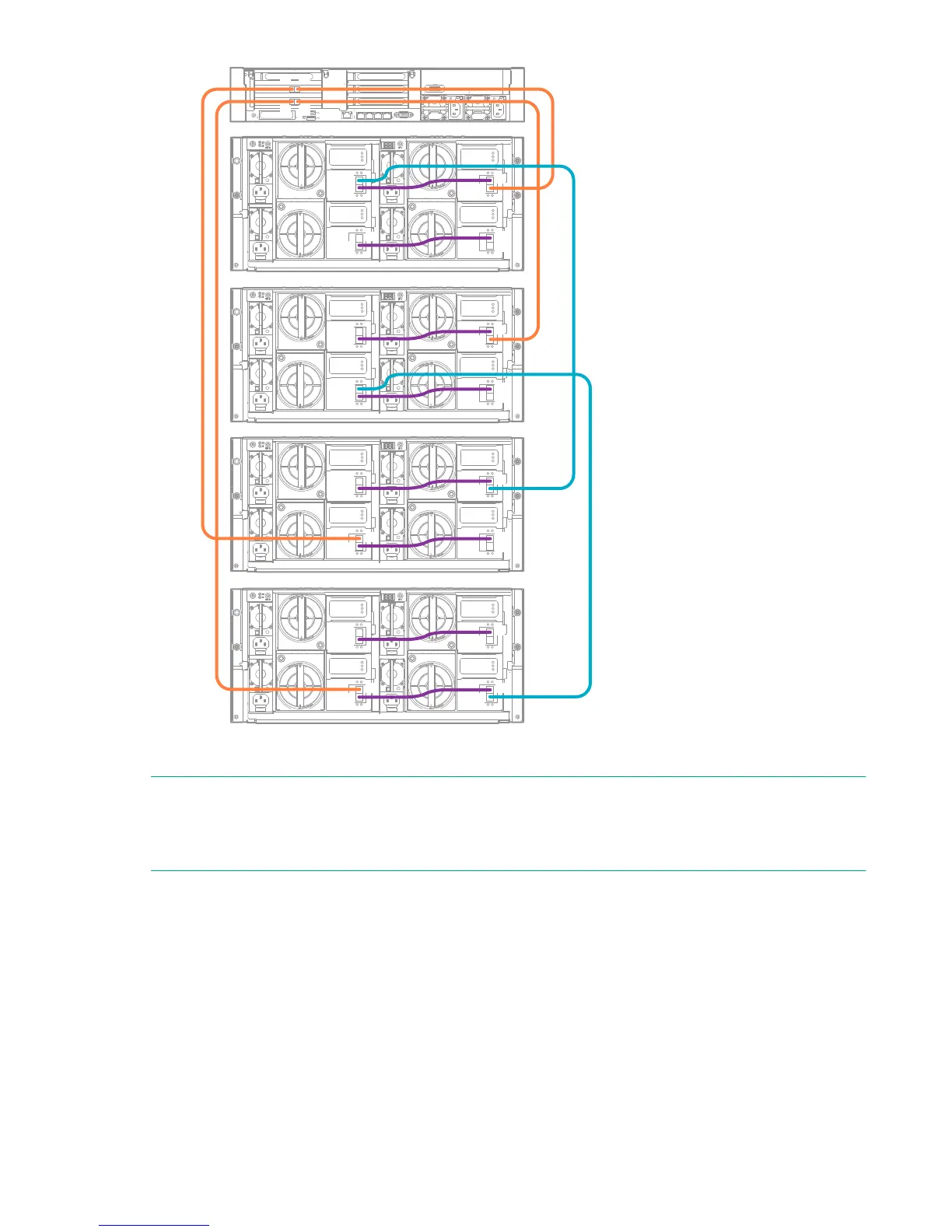

Figure 12: Cabling showing four enclosures installed below the server
NOTE:
Enclosure #1 and Enclosure #3 are in Storage Cluster 1, connected to the RAID controller card in slot 2.
Enclosure #2 and Enclosure #4 are in Storage Cluster 2, connected to the RAID controller card in slot 3.
36 Disk enclosures
