HPE STOREONCE 5500

StoreOnce 5500 LEDs
Server LEDs
SID
1 2 3 4 5 6 7 8
1 2
4 5321

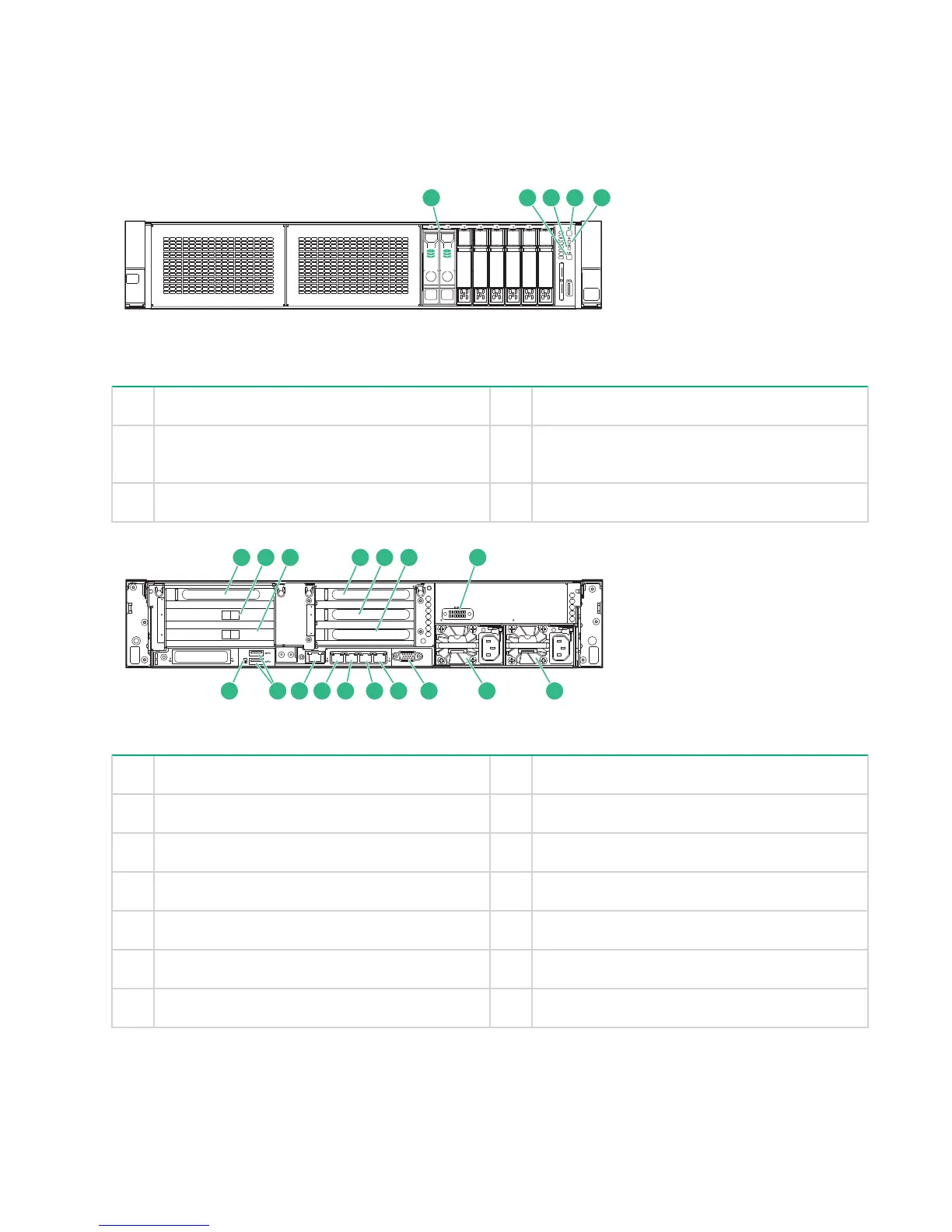

Figure 17: StoreOnce 5500 System server front view
1 OS disks 2 UID button LED
3 NIC status LED 4 Power on/standby button and system power
LED
5 Health LED
1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
111213151617 14 9 810
71 2 3 4 5 6
Figure 18: StoreOnce 5500 System server rear view
1 Slot 1, available for Optional Hardware 2 Slot 2, first RAID controller card
3 Slot 3, second RAID controller card 4 Slot 4, available for Optional Hardware
5 Slot 5, available for Optional Hardware 6 Slot 6, available for Optional Hardware
7 Optional serial port 8 Power supply 1 (PS1)
9 Power supply 2 (PS2) 10 Video connector
11 1Gb RJ45 Port 4 12 1Gb RJ45 Port 3
13 1Gb RJ45 Port 2 14 1Gb RJ45 Port 1 (eth0)
Table Continued
44 StoreOnce 5500 LEDs
