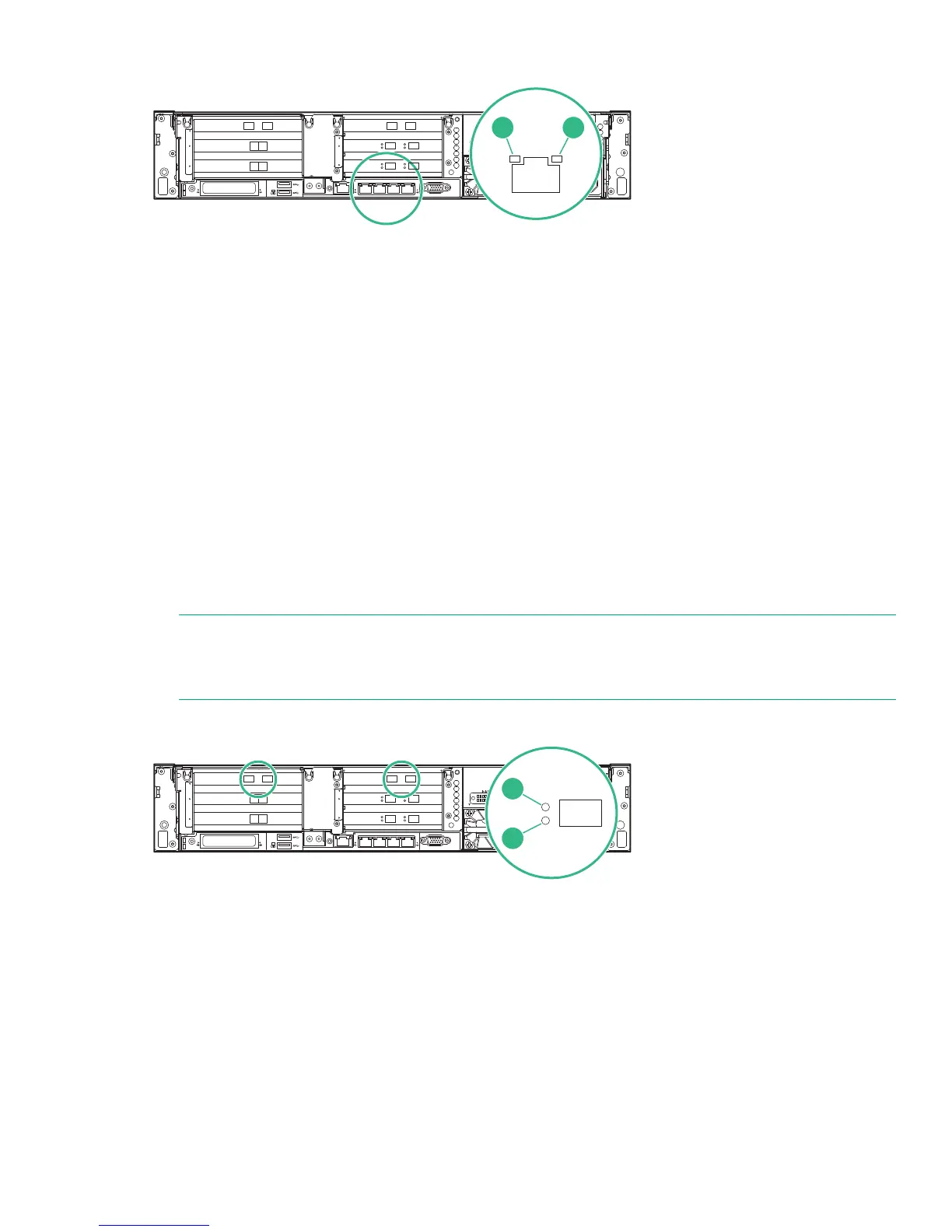

Figure 23: 1 GbE LAN port LEDs
1. LAN network speed LED indicator Steady green: The LAN connection is using 10
Mbps/100 Mbps link.
Steady amber: The LAN connection is using a 1 GbE
link.
Off: No connection.
2. LAN activity status LED indicator Flashing green: Ongoing network data activity.
Off: No network data activity or no connection.
10 GbE card LEDs
Each 10 GbE card has two LEDs, as illustrated below.
NOTE:
The drawing is of a StoreOnce System with two 10 GbE cards and two FC cards installed in the
Optional Hardware PCIe slots.
1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
1
2
Figure 24: 10 GbE card LEDs
