hpmont HD3N Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 6 Function Introduction
HD3N Series User Manual V1.1 - 85 -
Ref. code Function Description Setting Range [Default]
F16.19
AO1 function
0 - 21 [2]
F16.20 AO2 function 0 - 21 [0]
F16.21
High-speed pulse output function
0 - 20 [0]
0: Unused.
1,2: Output frequency / setting frequency (0 - max. output frequency).
3: Motor RPM (0 - max. output frequency corresponding to RPM).
4: Output current (0 - twice rated current of HD3N).
5: Output current (0 - twice rated current of motor).
6: Torque command (0 - 3 times rated torque of motor).
10: Output torque (0 - 3 times rated torque of motor).
11: Output torque (0 – 1.2 times rated voltage of HD3N).
12: Bus voltage (0 - 2.2 times rated voltage of HD3N).
13: Output power (0 - twice rated power of motor).
14: AI1 input (0 – max. AI1 after calculating).
15: AI2 input (0 - max. AI2 after calculating).
18,19: Output frequency, setting frequency (-1 - 1 times max. output frequency).
20: Setting frequency (0 - max. output frequency).
21: SCI data output (communication data 0 - 1000 corresponding to AO output 0.00 - 10.00V).
F16.22
AO1 bias
-100.0 - 100.0 [0.0%]
F16.23 AO1 gain 0.0 - 200.0 [100.0%]

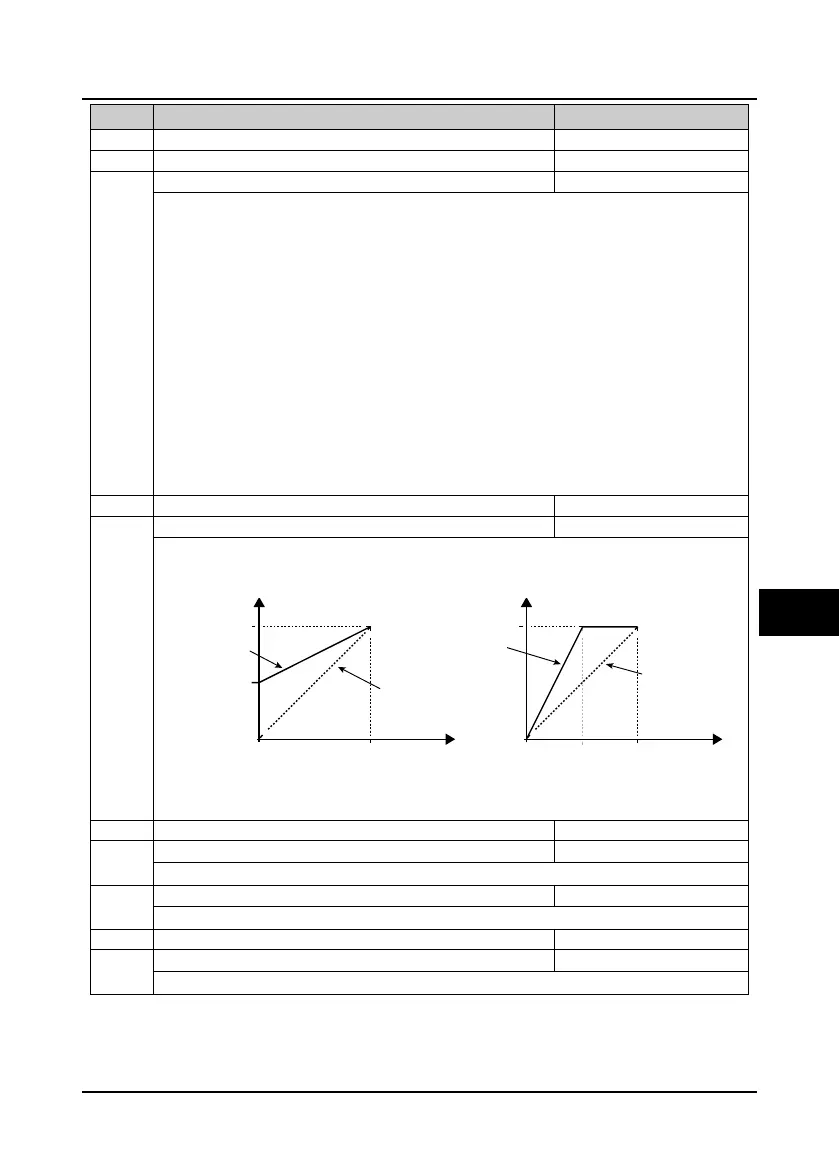

User can use output gain to adjust AO1 output.Below is a figure shows curve relationship between AO and
F16.22, F16.23.
• AO gain and bias formula: actual output (%) = F16.23×value before calculating (%)+ F16.22
• By short-connecting pin 2&3 in CN7 and CN8, AO1 analogue output can achieve 0 - 20mA output.
• To achieve 4 - 20mA output: set F16.22 = 20.0%, F16.23 = 80.0% (4mA corresponds to 0%, 20mA
corresponds to100%).
F16.24 AO2 bias -100.0 - 100.0 [0.0%]
F16.25
AO2 gain
0.0 - 200.0 [100.0%]
Refer to F16.22, F16.23.
F16.26
DO2 max. output pulse frequency
0.1 - 10.0 [10.0kHz]
Defines max. frequency that DO2 can output.
F16.27
Bias of potentionmeter
-100.0 - 100.0 [0.0%]
F16.28 Gain of potentionmeter 0.00 - 10.00 [1.00]
Note: F16.27 - F16.28 are valid only when LED keypad is adopted.
Value after calculating (V)
100%
F16.23=100%
F16.22=0
F16.22=0
F16.23=200%
Value after calculating (V)
F16.22=0
F16.23=100%
F16.22=50%
F16.23=50%
50%
100%
0V 10V 0V 5V 10V
Value before
calculating (V)
Value before
calculating (V)
6
