Shenzhen Hpmont Technology Co., Ltd. Chapter 6 Function Introduction
HD3N Series User Manual V1.1 - 61 -

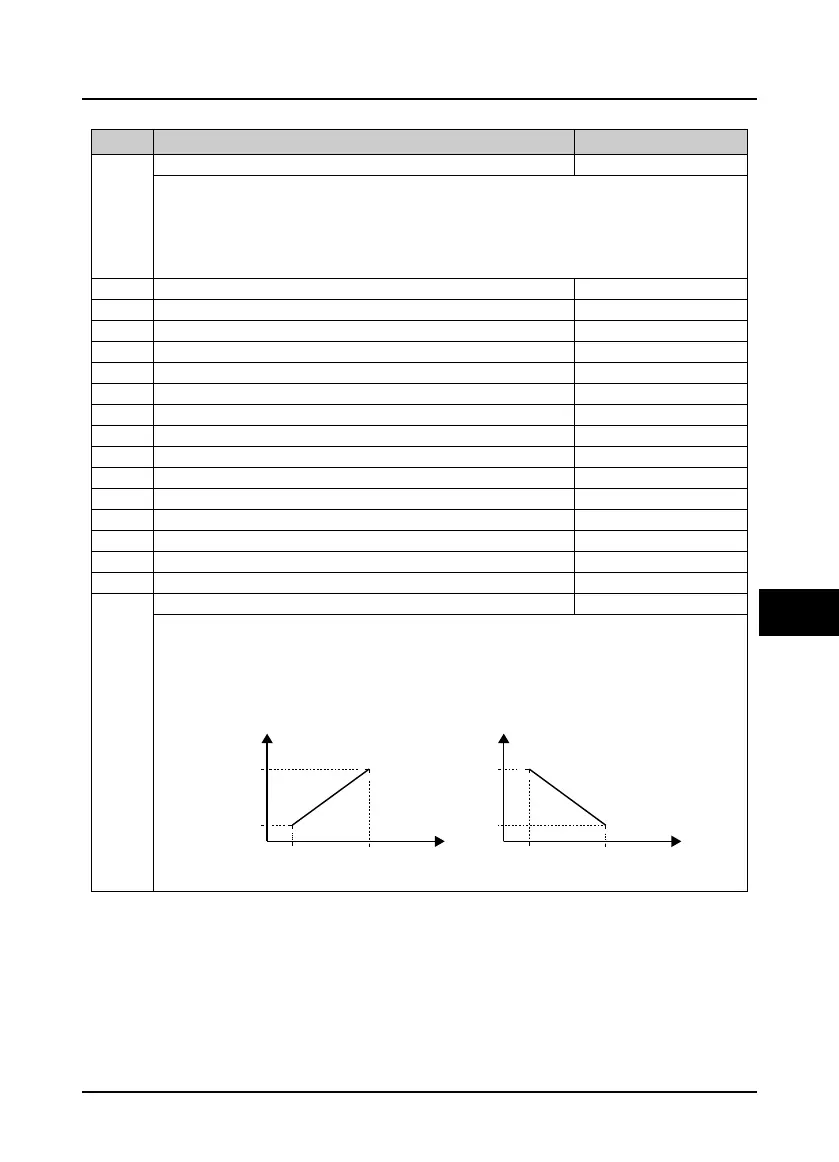

6.2.6 F05: External Setting Curve Parameter
Ref. code Function Description Setting Range [Default]
External setting curve selection
Unit: AI1 curve
Ten: AI2 curve
Hundreds, Thousand: Unused
Tens thousands: Pulse curve
Each bit sets below:
• 0: Line 1.
• 1: Line 2.
• 2: Polyline.
• 3: Do not dispose.
F05.02 Corresponding value of line 1 min. setting 0.0 - 100.0 [0.0%]
F05.04 Corresponding value of line 1 max. setting 0.0 - 100.0 [100.0%]
F05.06 Corresponding value of line 2 min. setting 0.0 - 100.0 [0.0%]
F05.08 Corresponding value of line 2 max. setting 0.0 - 100.0 [100.0%]
F05.10 Max. setting corresponding value of polyline 0.0 - 100.0 [100.0%]
Inflection point 2 setting of polyline
F05.12 Inflection point 2 corresponding value 0.0 - 100.0 [100.0%]
Inflection point 1 setting of polyline
F05.14 Inflection point 1 corresponding value 0.0 - 100.0 [0.0%]
F05.16 Min. setting corresponding value of polyline 0.0 - 100.0 [0.0%]
F05.01 - F05.04 define line 1. F05.05 - F05.08 define line 2. F05.09 - F05.16 define the polyline.
• Line 1, line 2 and the polyline can independently achieve positive and negative characteristics as shown
in following figure.
• If the curve min. setting is the same as max. setting, it is a line. The default frequency is the
corresponding frequency of the curve min. setting.
F05.01
F05.05
F05.03
F05.07
F05.04
F05.08
F05.02
F05.06
Setting
corresponding value
F05.01
F05.05
F05.03
F05.07
F05.02
F05.06
F05.04
F05.08
Setting
corresponding value
Positive and negative characteristic of line
P/A(setting) P/A(setting)
