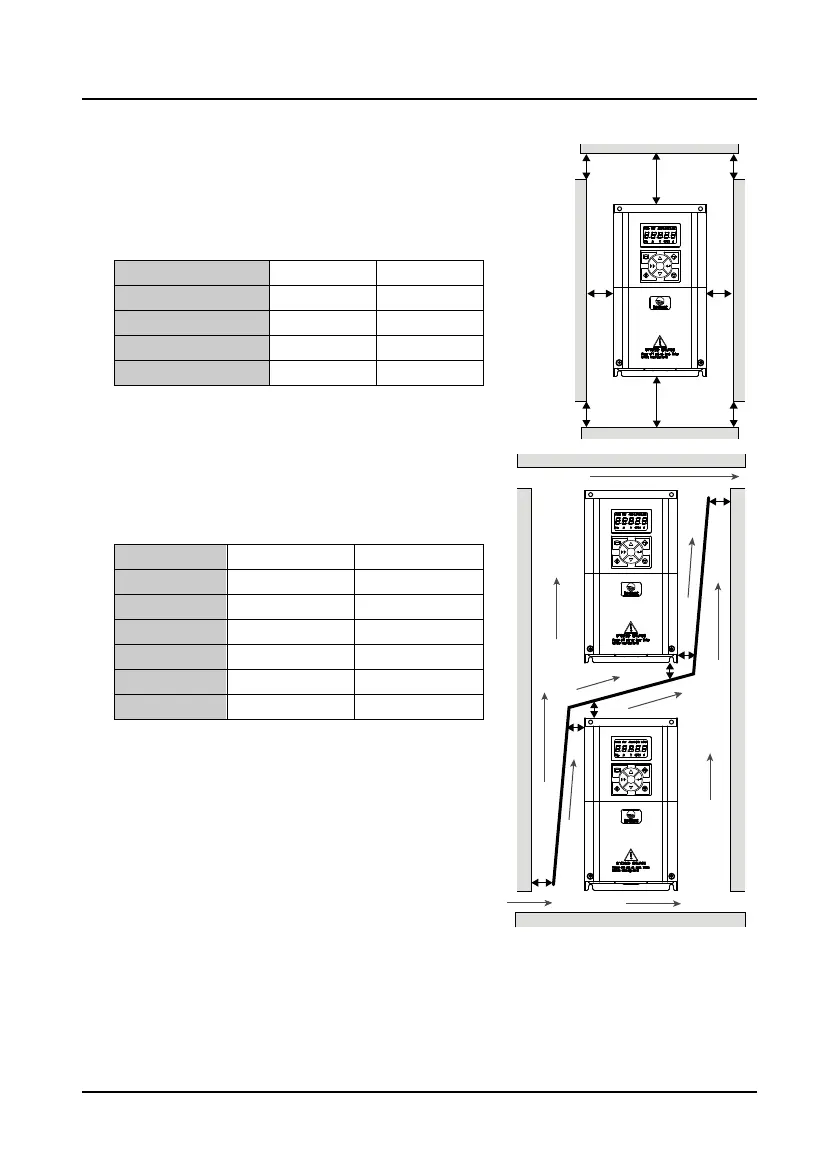

3.3 Installation Direction and Space
To achieve good cooling efficiency, install HD3N
perpendicularly and always provide the following space
to allow normal heat dissipation.
The space are shown in Table 3-1.
Table 3-1 Installation space
Inverter power ≤55kW ≥75kW
A (Left/Right) ≥50mm ≥150mm
B (UP/Down) ≥100mm ≥350mm
C (Upper air-vent )
≥50mm ≥100mm
D (Lower air-vent) ≥50mm ≥100mm
123
When one inverter is mounted on top of another, an air flow
diverting plate should be fixed between them. Just as shown
in Table 3-2.
Table 3-2 Installation of several inverters
Inverter power ≤55kW ≥75kW
A
≥50mm ≥100mm
B ≥50mm ≥100mm
C ≥50mm ≥100mm
a ≥50mm ≥100mm
b ≥50mm ≥100mm
c ≥50mm ≥100mm
123
C C
B
D D
B
A A
C
B
a
b
c
A
