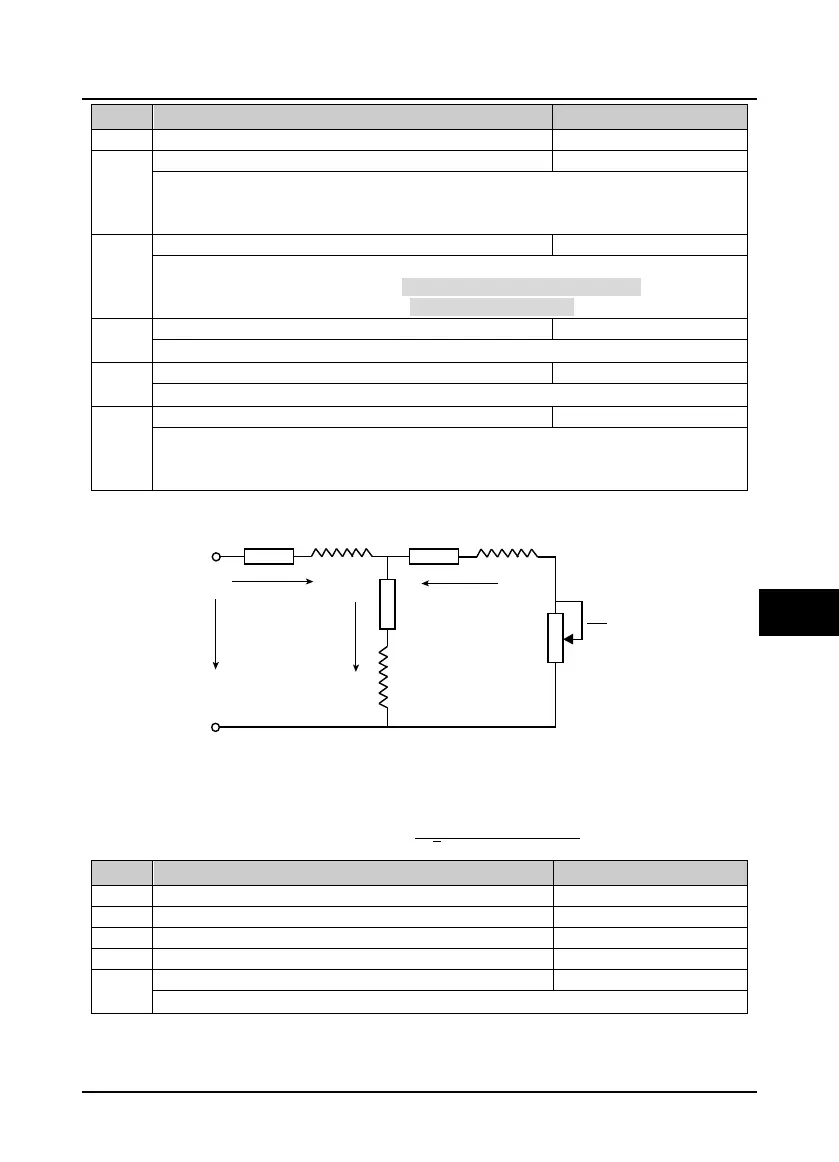

Shenzhen Hpmont Technology Co., Ltd. Chapter 6 Function Introduction
HD3N Series User Manual V1.1 - 67 -
Ref. code Function Description Setting Range [Default]
F07.03 Waiting time for wobble preset frequency 0.0 - 999.9 [0.0s]
F07.02 defines running frequency of HD3N before entering wobble sate.
F07.03 defines the duration of F07.02 before entering wobble state.
Valid when F07.01 units = 0.
F07.04 Wobble value 0.0 - 50.0 [0.0%]
Calculated from wobble centric frequency: F
W
= centric frequency × F07.04.
• Wobble centric frequency is a value set by F00.10 (frequency setting channel selection).
Calculated from max. Output frequency: FW = max. Output frequency F00.06 × F07.04.
F07.05 Skip frequency 0.0 - F07.04 [0.0%]
It is percentage from wobble value. F07.05 = 0, there is no skip frequency.
Defines the time during which wobble goes up and down.
Triangular wave rising time
Defines the running times that wobble rise and fall. It relates to F07.06. Unit: s.
• Running time at rising = F07.06 × F07.07.
Running time at falling = F07.06 × (1 - F07.07).
6.2.9 F08: Asyn. Motor Parameters
Formula of mutual inductance:
Mutual inductance F08.10 =
F08.01
2
√
3
π × F08.03 × F08.11
− F08.09
Ref. code Function Description Setting Range [Default]
0.2 - 500.0kW [Depend on HD3N]
0 - 999V [Depend on HD3N]
0.1 - 999.9A [Depend on HD3N]
1 - 24000rpm [Depend on HD3N]
F08.00 - F08.04: Set rated value of motor according to motor nameplate.
L
m
R1=F08.07 (Stator resistance)
R2=F08.08 (Rotor resistance)
Io=F08.11 (Excitation current)
R1 R2LI
I1 I2
S
1-S
R2
LI
LI=F08.09 (Leakage inductance)
Lm=F08.10 (Mutual inductance)
S=Slip ratio
U1
Io
