hpmont HD3N Series User Manual

Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd.
- 66 - HD3N Series User Manual V1.1
6.2.8 F07: Wobble Function Parameter
Wobble process:
Accelerate according to acc time to wobble pre-set frequency (F07.02) and waiting time (F07.03), then
transit to wobble centric frequency according to Acc. / Dec. time.
Then circle runs according to wobble value (F07.04), skip frequency (F07.05), wobble period (F07.06)
and wobble increase time (F07.07).
It will not stop until stop command outputs and decelerated to stop according to dec time.

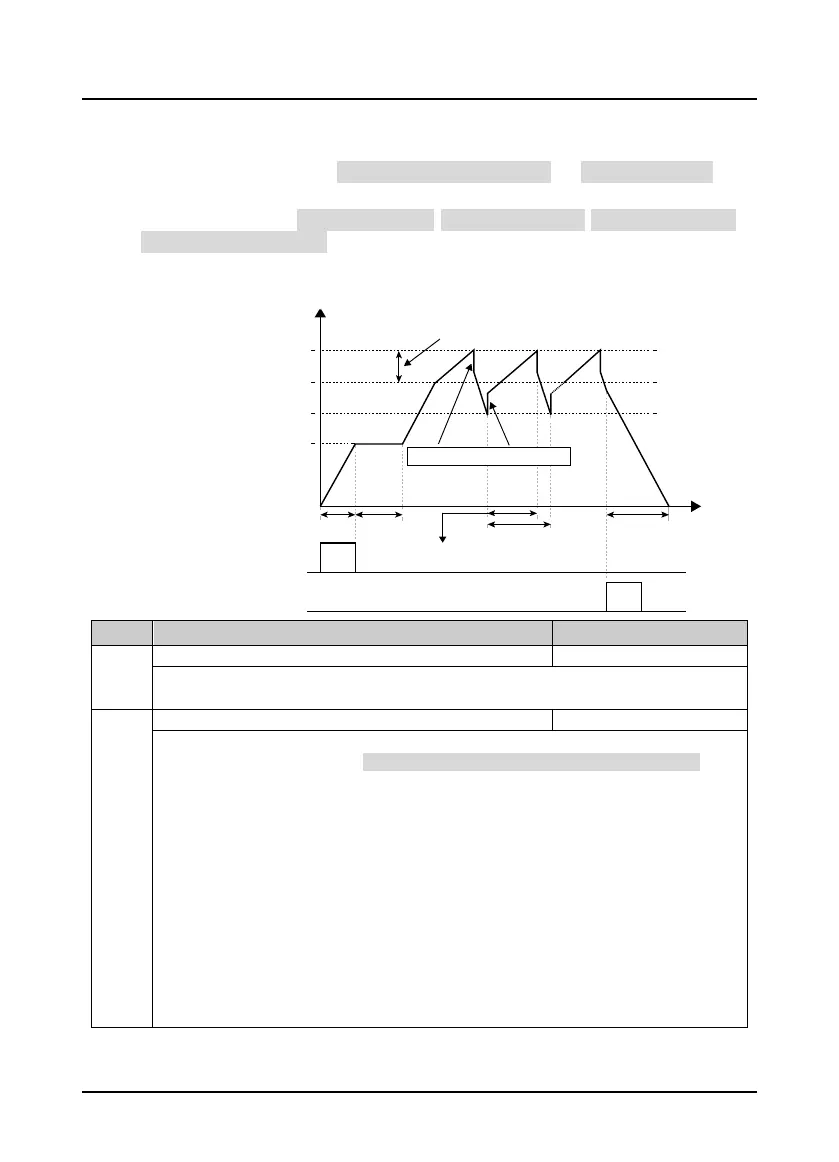

Below is figure of wobble process:
Ref. code Function Description Setting Range [Default]
F07.00
Wobble function selection
0,1 [0]
0: Disable.
1: Enable.
F07.01
Wobble running mode
0000 - 1111 [0000]
Unit: Entry way
• 0: Auto entry. HD3N started, it runs the waiting time (F07.03) at wobble pre-set frequency (F07.02), and
then enter wobble running.
• 1: Manually terminal entry way. Set DI = No. 36 function (wobble entry function) and when this signal is
valid, HD3N enters wobble statue. When invalid, HD3N exits wobble state and the running frequency
remains (F07.02).
Ten: Wobble control (refer to 07.04)
• 0: Relate to wobble centric frequency.
• 1: Relate to max. Output frequency.
Hundred: Start when HD3N stops during wobbling
• 0: Start according to memory before it stops.
• 1: Restart.
Ten thousand: Save selection at power failure
• 0: Save wobble state at power failure. Valid only when F07.01 tens = 0.
• 1: Do not wobble state at power failure.
F07.03
F07.06
Dec.time
Uptime: F07.06 x F07.07
F07.02
Running command
Running frequency
Time
Stop command
Wobble down limit frequency F L
Wobble centre frequency F
set
Wobble up limit frequency F H
F H = F set + F w
F L = F set - F w
Swing frequency value F w = F set x F07.04
Acc. time
Jump frequency =F
w x F07.05
