hpmont HD3N Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 8 Accessories
HD3N Series User Manual V1.1 - 107 -
Chapter 8 Accessories
8.1 Extension Keypad and Accessories
Optional LED keypad (HD-LED-P/HD-LED-P-S) can be installed on panel of control cabinet.
Extension cable
The extension cables are:
• 1m extension cable to keypad: HD-CAB-1M
• 2m extension cable to keypad: HD-CAB-2M
• 3m extension cable to keypad: HD-CAB-3M
• 4m extension cable to keypad: HD-CAB-6M
Install HD-LED-P
Keypad HD-LED-P is configured with mounting base (HD-KMB). Install the base on panel of control
cabinet, then install HD-LED-P to the base.

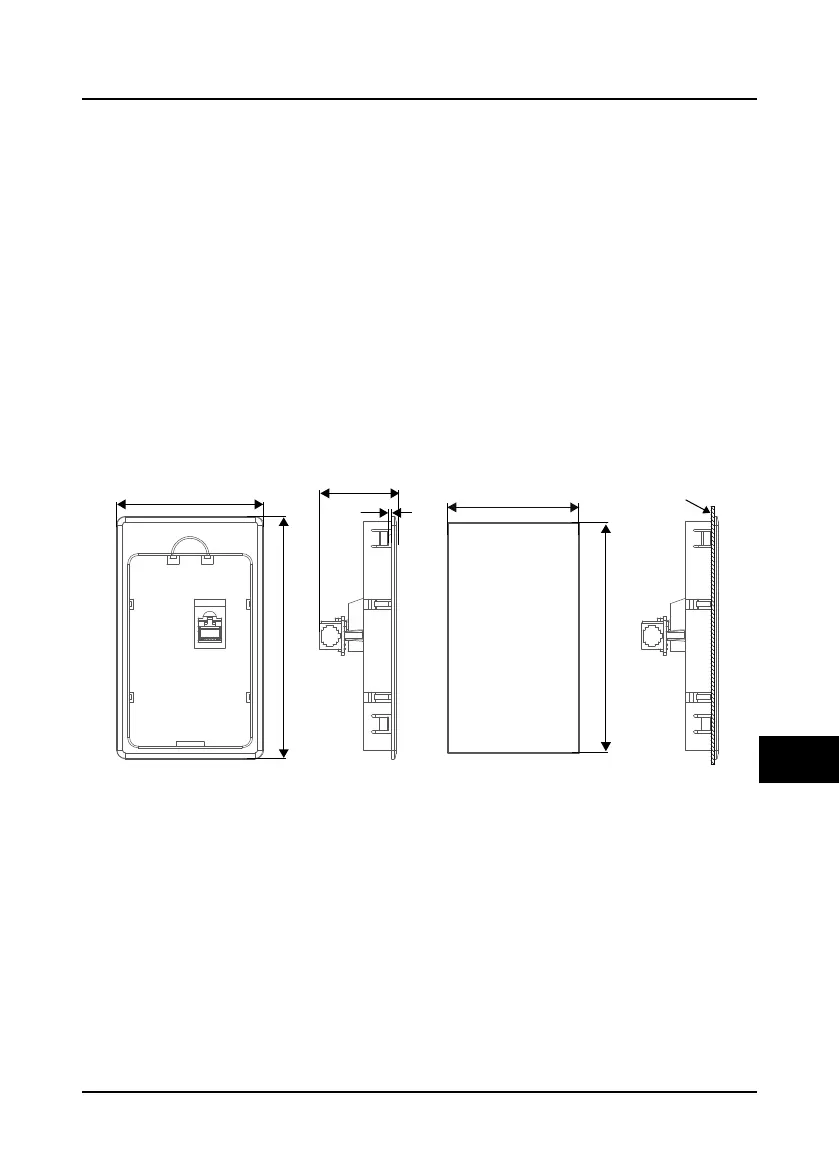

Mounting base (HD-KMB) and its size are in Figure 8-1, unit: mm.
Figure 8-1 HD-KMB
Installation
Door cabinet
76.5±0.2
134.5±0.2
142
86
44.8
1.8
Mounting aperture sizeHD-KMB size
8
