9.

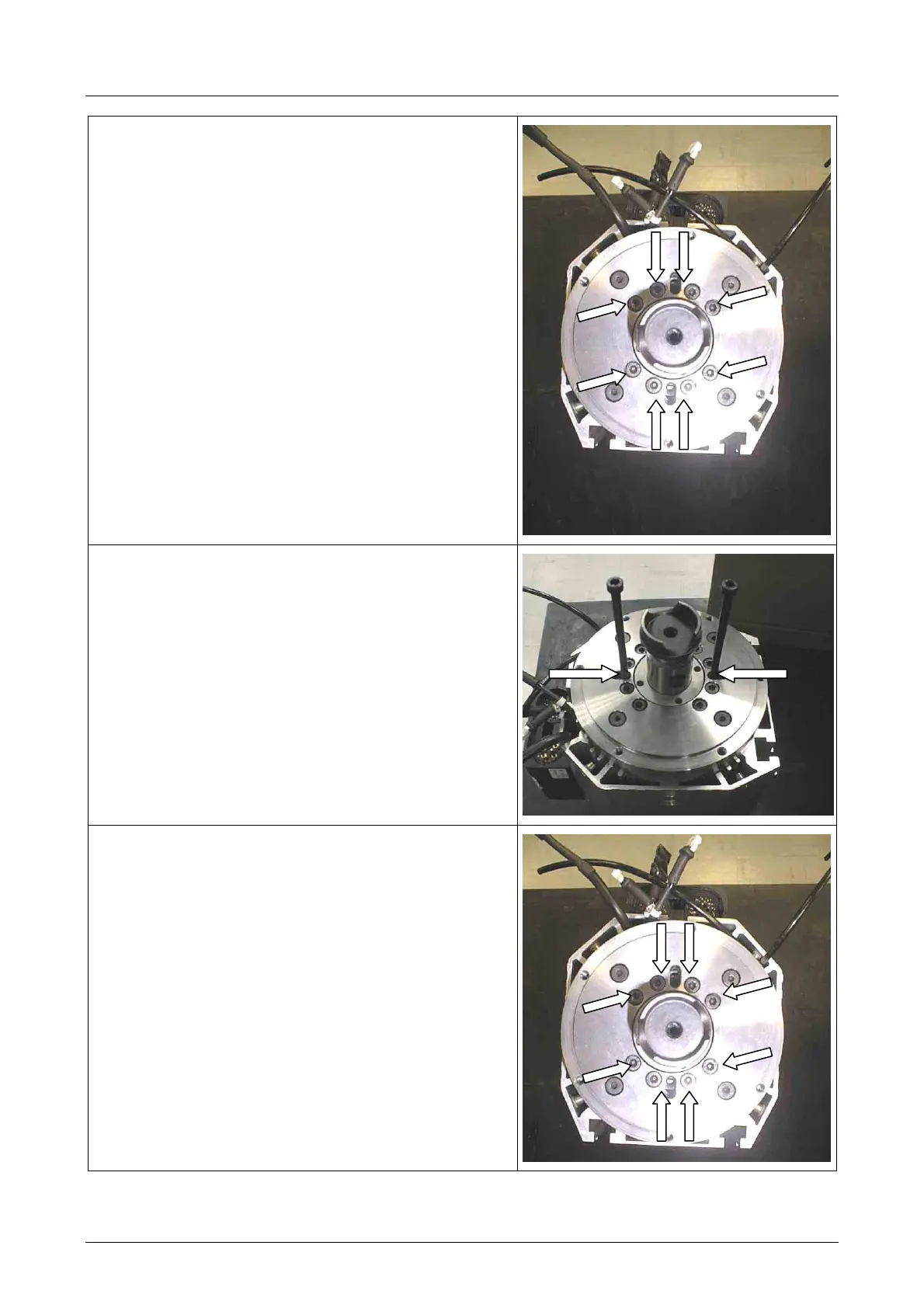

Rear view of the electrospindle. In the
foreground, the reaction system with the eight
fixing screws
10.
Partly tighten the two long screws (TCEI M5x90
UNI 5931) as shown in the figure
Variation ES939: operation not necessary
11.
Remove the eight fixing screws from the
reaction system
Variation ES939: on models ES939 the semi-
rings can be removed; loosen the eight screws
and remove the semi-rings
