12.

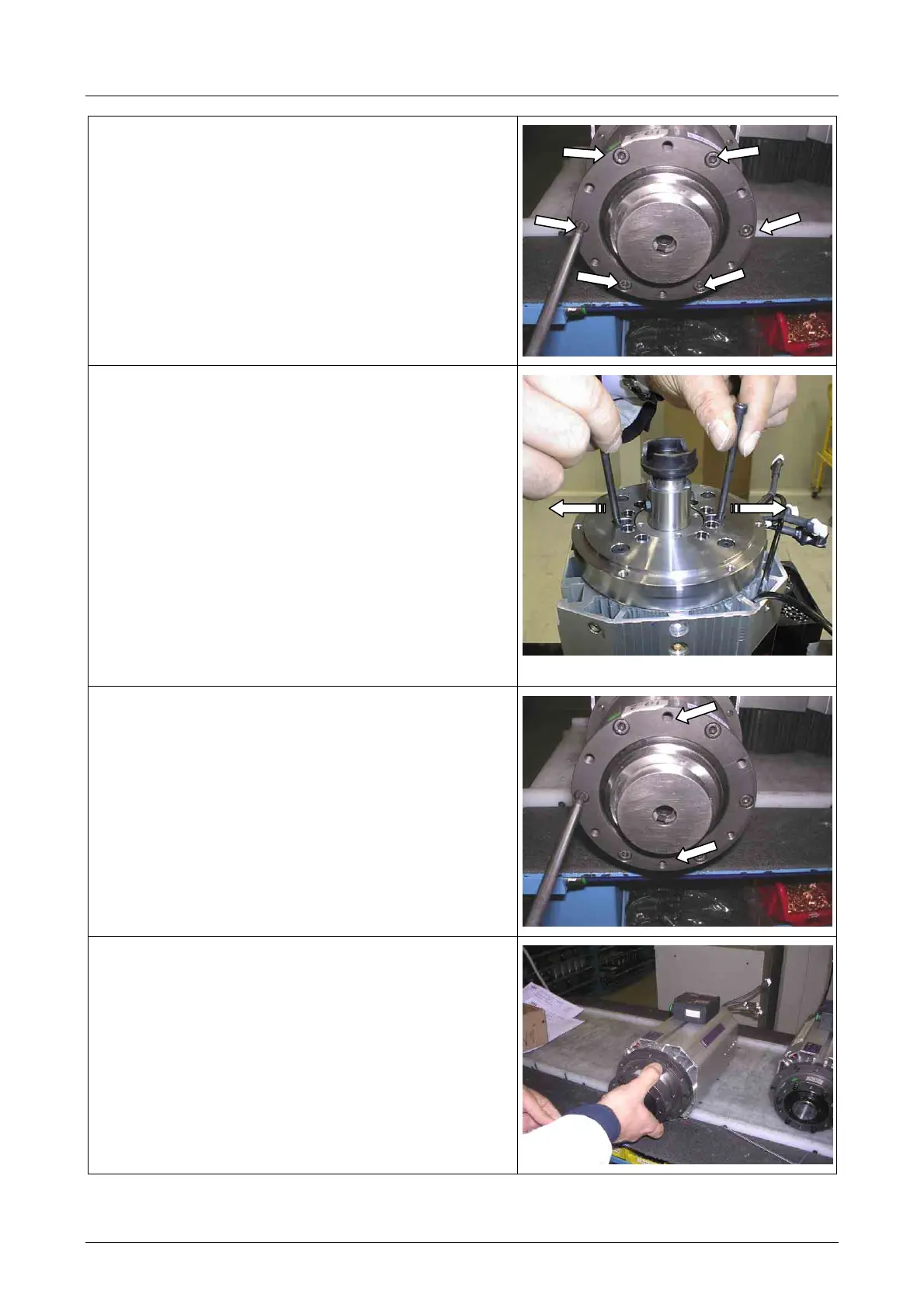

Remove the six fixing screws of the shaft
13.
Simultaneously with operations 14 and 15
below, open the reaction system, working in a
radial direction as shown in the figure
Variation ES939: operation not necessary
14.
Use a fixing screw of the shaft unit to facilitate
its extraction from the spindle sleeve, tightening
it in one of the bores.
Do not use any bores not shown in the figure
alongside.
15.
Carefully extract the shaft unit from its seat in
the sleeve
