I-V600
EN
- 9

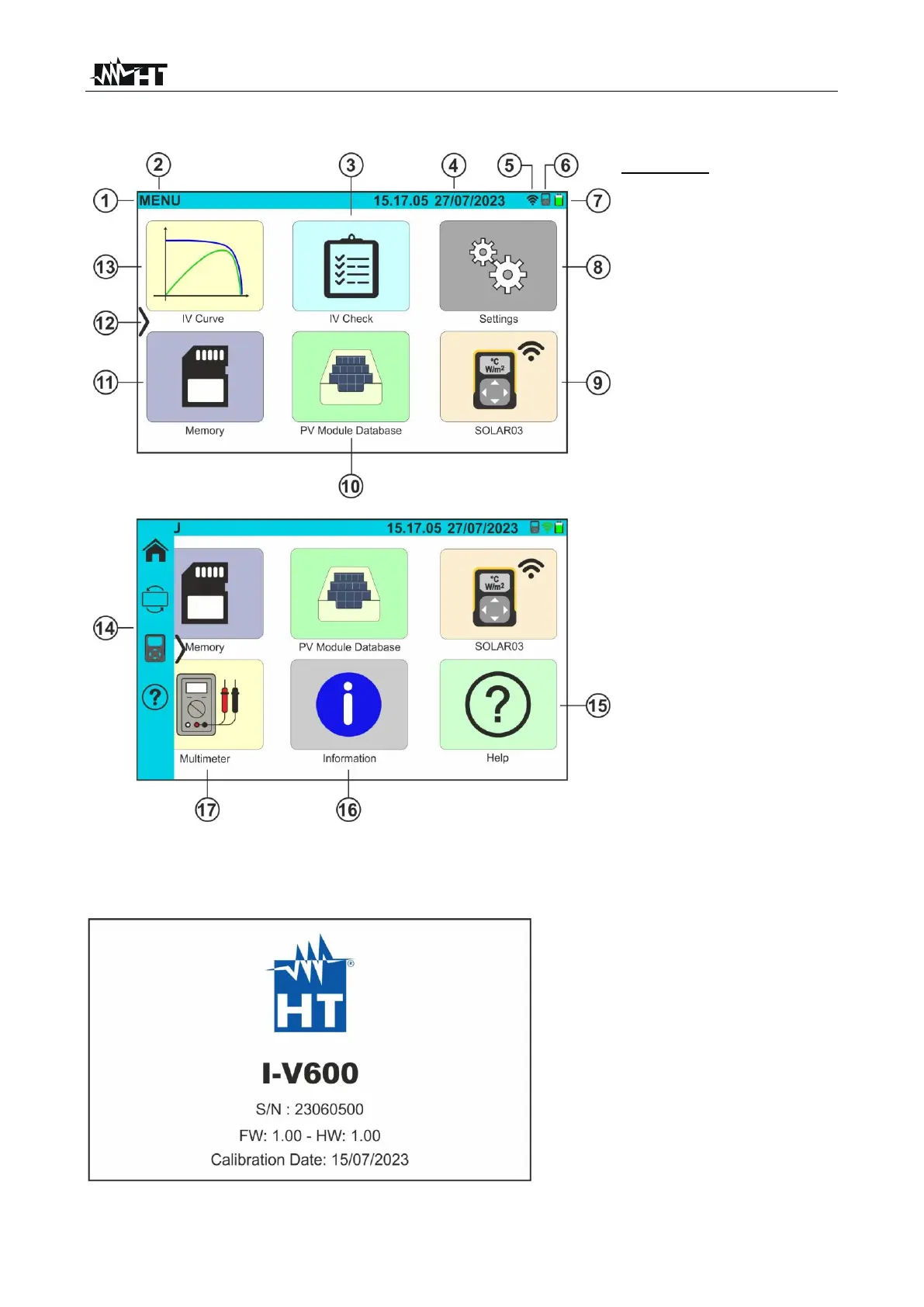

4.3.
DISPLAY DESCRIPTION
CAPTION:
1.
System
bar
2.
Active
menu
indication
3.
IV
Check
function
icon
4.
System
date/time
indicator
5.
WiFi
connection
active indicator
6.
SOLAR03
connected
indicator
7.
Battery
level indicator
8.
Setti
ngs
icon
9.
SOLAR03
icon
10.
PV
Modules
DataBase
icon
11.
Memory
icon
12.
Side
menu
bar
enable/disable icon
13.
IV Curve
icon
14.
Side menu bar
15.
Help
icon
16.
Information
icon
17.
Multimeter
icon
Fig. 4: Display description
4.4.
INITIAL SCREEN
When
switched
on,
the
instrument
briefly
displays
the
initial
screen
before
switching
to
the
main
menu.
It shows:
•
The manufacturer's logo
•
The instrument’s model
•
The
serial
number
of
the
instrument (S/N:)
•
The
internal
firmware
(FW)
and
hardware (HW) versions
•
The
date
of
the
last
calibration
carried
out
on
the
instrument
(Calibration Date:)
9
11
Table of Contents
Table of Contents
2
Safety Measures and Precautions
4
Preliminary Instructions
4
During Use
5
After Use
5
Definition of MEASUREMENT Category (Overvoltage)
5
General Description
6
Foreword
6
Instrument Functions
6
Preparation for Use
7
Initial Checks
7
Instrument Power Supply
7
Storage
7
Description of Parts
8
Instrument Description
8
Description of Function Keys
9
Display Description
10
Initial Screen
10
Side Menu
11
Description of the States of the SOLAR03 Remote Unit
11
Using Instrument While It Is Hanging and Attached to a Strap
12
Main Menu
14
Help
14
Instrument Settings
15
Information
16
Operating Instructions
17
DMM - Multimeter Function
17
SOLAR03 - Remote Unit
18
DB - PV Modules Database Management
23
How to Define a New PV Module
25
Modification of a PV Module
26
Searching for PV Modules in the Database
27
Deleting a PV Module
28
I-V - Measuring the I-V Curve
29
General Information
29
I-V Curve Measurement with SOLAR03 Unit Not Recording
30
I-V Curve Measurement with Recording by the SOLAR03 Remote Unit
36
Meaning of Measurement Results
40
Anomalous Situations
41
IVCK - Commissioning Test on PV Modules and Strings
44
General Information
44
IVCK Test Without Remote Unit
45
Meaning of Measurement Results
49
IVCK Test with Remote Unit
50
Meaning of Measurement Results
59
Mem - Storage of Results
60
Saving Measures
60
Displaying Results
64
Deleting Results
67
Anomalous Situations
69
Connecting the Instrument to the Pc
71
Maintenance
72
General Information
72
Replacing or Recharging Internal Batteries
72
Instrument Cleaning
72
Technical Specifications
73
Technical Characteristics
73
General Characteristics
74
Environmental Conditions for Use
75
Accessories
75
Appendix
76
Theoretical Aspects of the I-V Curve Measurement
76
Theoretical Aspects of I-V Curve Measurement
76
Typical Errors on I-V Curves and Troubleshooting
77
Service
79
Warranty Conditions
79
