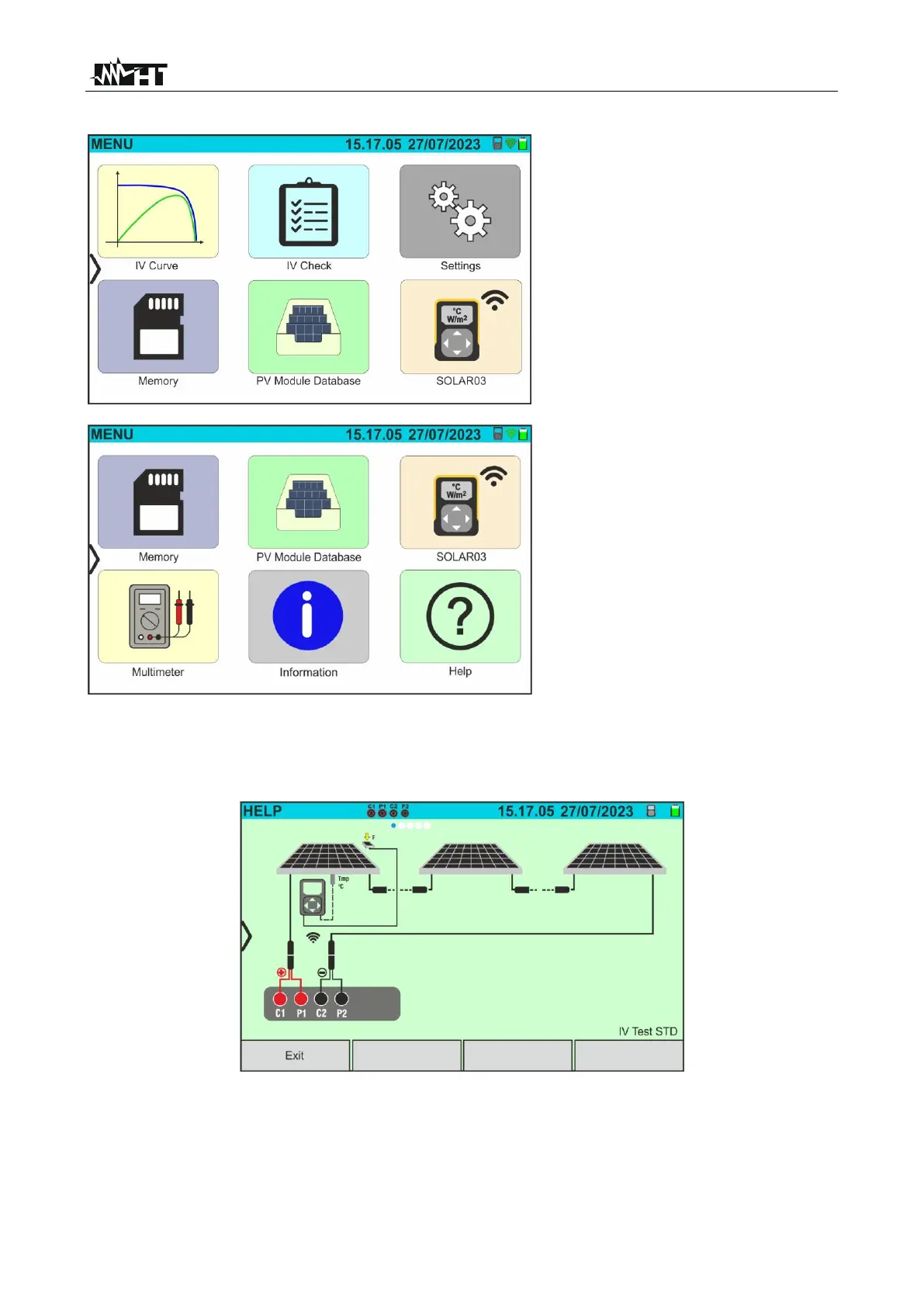

The instrument's main menu
contains a series of icons used to
access the internal measurements
and settings.
The instrument is controlled and
programmed using the touch-
screen display only, with no
external function keys.
The main menu consists of two
pages. The first page is always
displayed when the instrument is
switched on.
Slide your finger up and down the
screen to access the second page,
as shown in the screen on the side
5.1. HELP
1. Tap on the "Help” icon on the main menu. The following screen will be displayed:
Fig. 9: Help screen for connecting to the instrument
2. Scroll left to view the help screens for the various measurements performed by the
instrument
3. Tap on the "Exit” key to exit and return to the main menu
