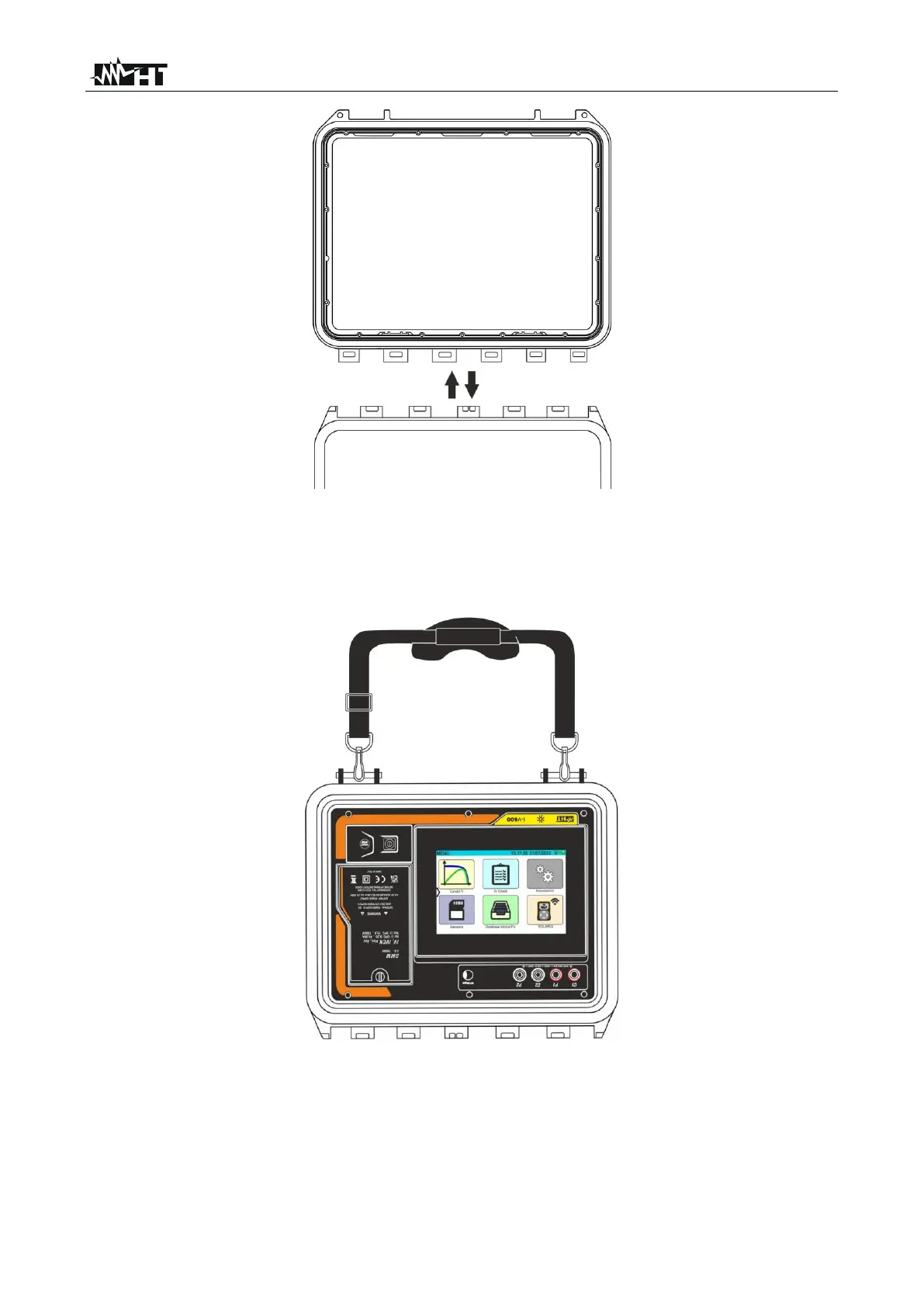

Fig. 7: Removing the cover from the instrument case - Step 3
4. Connect the SP-2003 strap (supplied) to the instrument as shown in Fig. 8. In this case,
it is useful to rotate the display by 180° by tapping on the REVERSE key in the side
menu (see § 4.5) or by activating the "Rotate display” option (see § 5.2)
Fig. 8: Using the instrument with strap attached and display rotated
5. Repeat steps 3), 2), 1) in reverse order to put back the case cover
