HUAWEI TE80 Videoconferencing Endpoint
Administrator Guide
4 Display Device and Camera
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

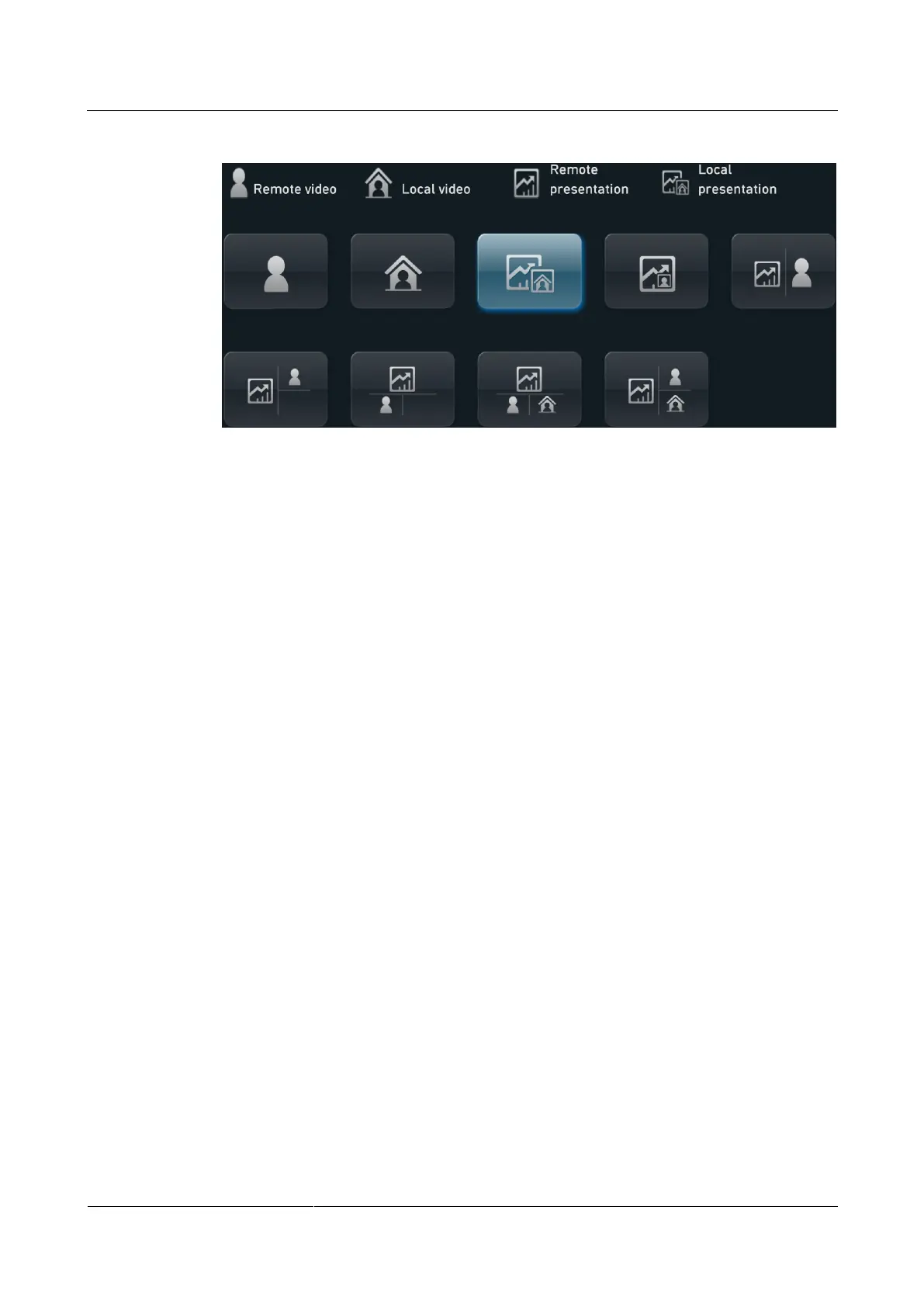

Figure 4-1 Screen layout example
Figure 4-1 is for your reference. Icons displayed in the rectangle vary according to endpoint
status. For example, the local and remote presentation icons are displayed only when the
following conditions are met:
A presentation source is connected to your site. When this happens, the icon for the local
presentation is displayed.
Your site receives a presentation shared by a remote site. When this happens, the icon for
the remote presentation is displayed.
The icon for the local presentation disappears if the local presentation source is disconnected
from the endpoint. The icon for the remote presentation disappears if the remote presentation
sharing stops.
Before a conference starts, you can set the position of the PiP window on the screen. For
details, see Table 4-9 in 4.2.1 Configuring Video Output.
4.3 Connecting a Camera
You can view the video delivered by a camera only after correctly connecting the camera to
the endpoint and setting the required video input parameters.
The endpoint supports various camera models, including the HUAWEI VPC600 HD camera
(VPC600), HUAWEI VPC620 HD camera (VPC620), ViewPoint C500 HD camera (C500),
HUAWEI VPC500 HD camera (VPC500), HUAWEI VPC520 HD camera (VPC520),
HUAWEI VPC500S camera (VPC500S), HUAWEI VPC500E camera (VPC500E), SONY
EVI-HD1, SONY EVI-D100, SONY EVI-D70, SONY D30/D31, SONY BRC-300P, SONY
BRC-H700, SONY BRC-Z330, CANON V50, CANON VCC1, CANON VCC4, 3CCD,
C200, GTP CAM, KX, PELCO, PTC100, SYYT, TAC, VCC-SW80P, and VCC-HD90P.
Table 4-13 list the capabilities of the video input ports.
