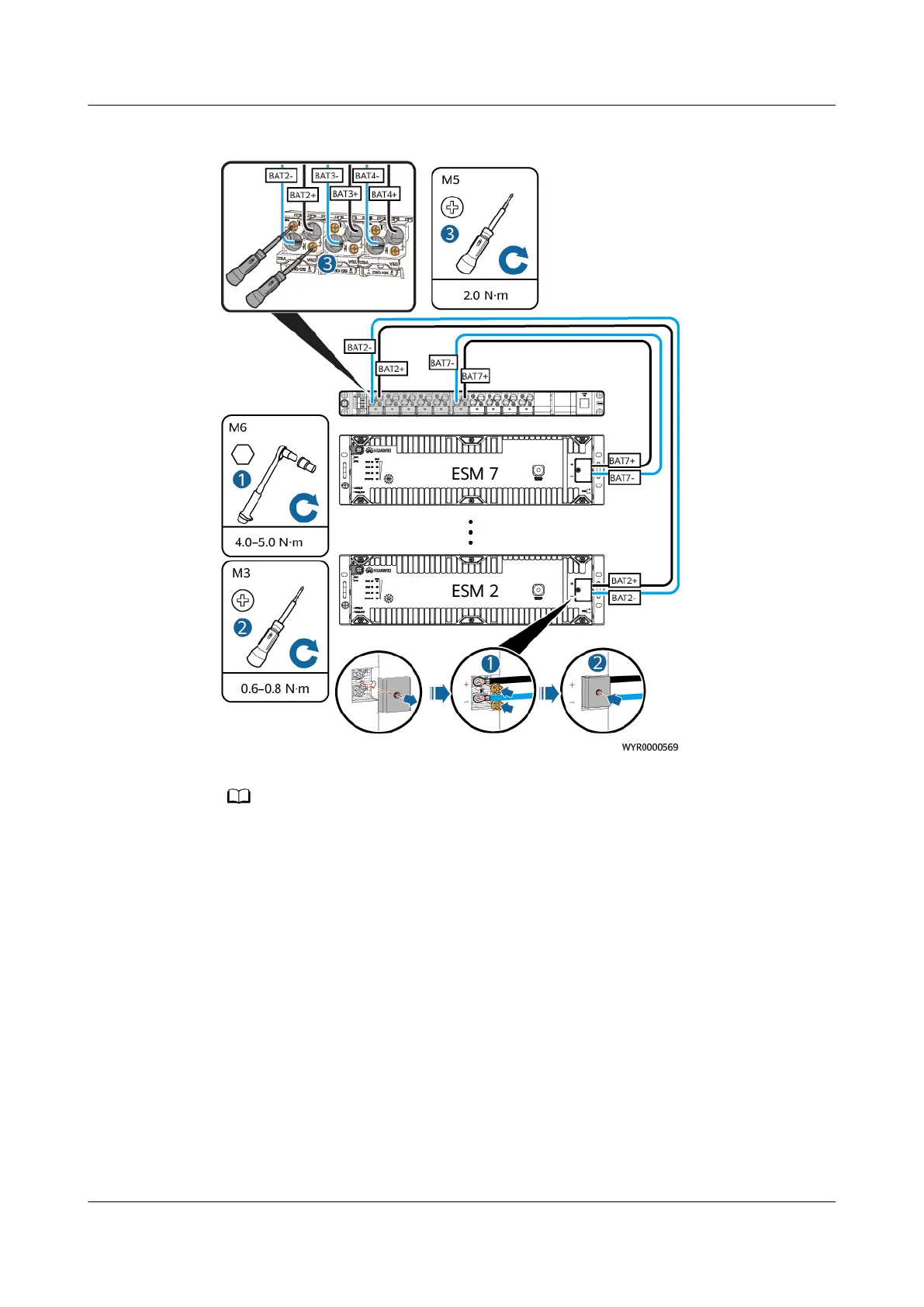

Figure 9-6 Installing power cables in ICC800 (battery 2-7)
Cable connections for batteries in the front and rear doors of the ESC800 are the same. The
following uses cable connections for batteries in the front door as an example.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 9 Installing Batteries and Cables
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 102
To Next Page
