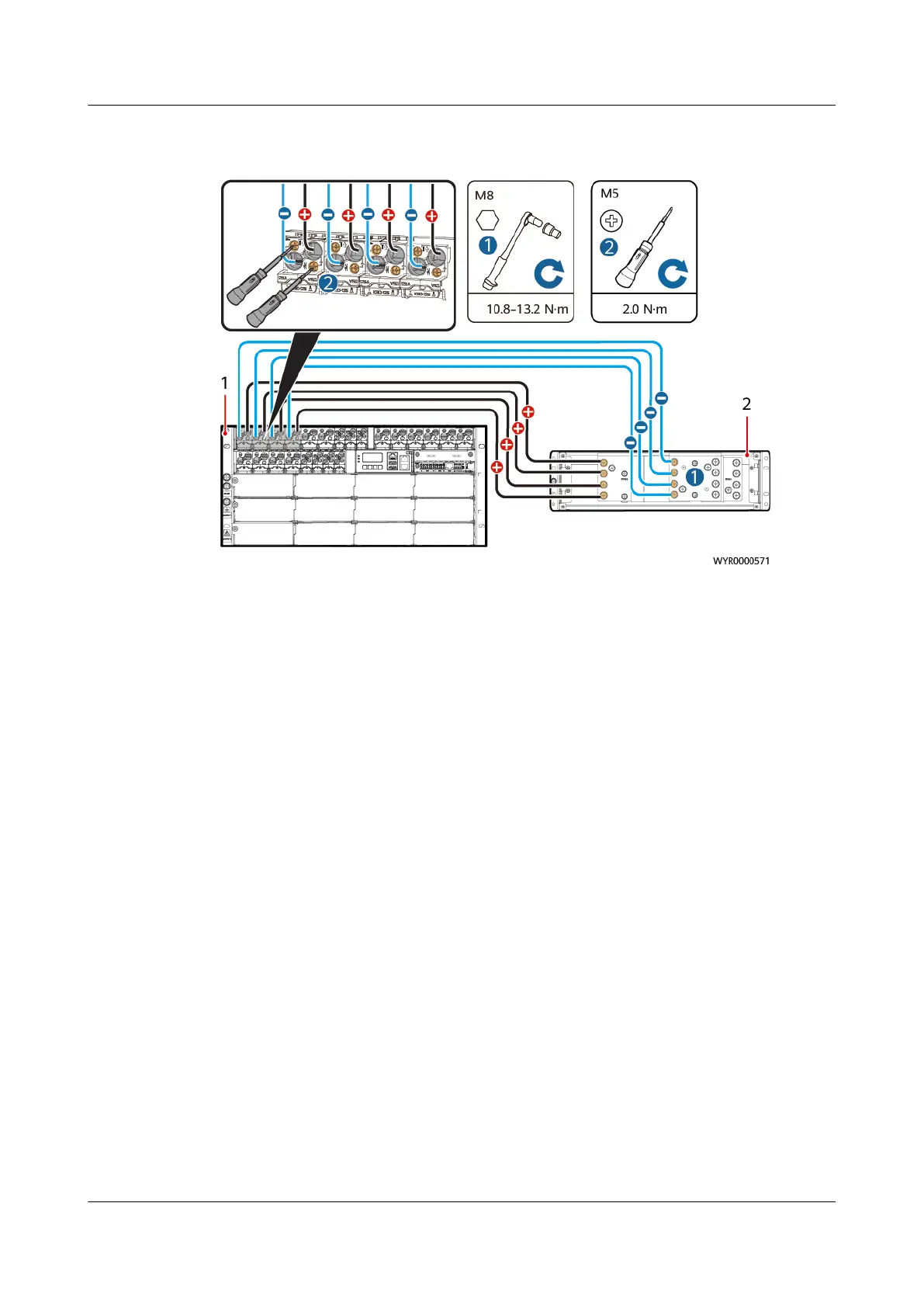

Figure 9-8 Installing battery cables between the battery cabinet and the ICC
cabinet
(1) ETP48600-C5B1 (2) Junction box in the ESC800
Step 2 Cover a PVC corrugated pipe over the cable parts outside the cabinet and secure
the PVC corrugated pipe to the cable hole.
----End
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 9 Installing Batteries and Cables
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 104
