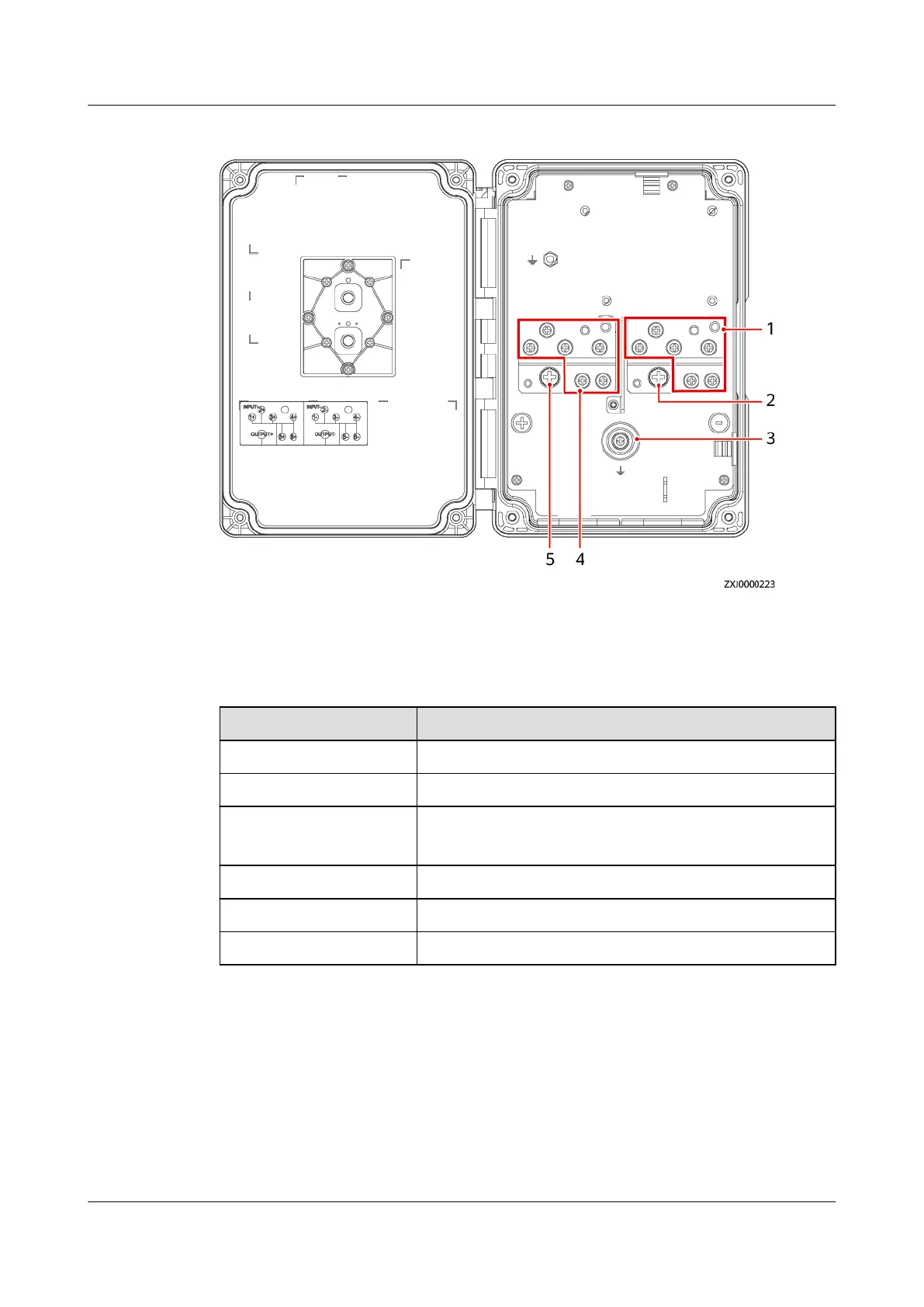

Figure 3-5 SJB-0601A interior
(1) Input– (2) Output– (3) Ground screw
(4) Input+ (5) Output+
Table 3-2 SJB-0601A technical specications
Item
Specications
Dimensions (H x W x D) 220 mm x 158 mm x 65 mm
Ports Six inputs converge into one output.
Operating voltage SJB-0601A (02312VQH): 43.2–58 V DC
SJB-0601A (21204202-001): 60–150 V DC
IP rating IP55
Installation mode Pole-mounted or wall-mounted
Cabling mode Routed in and out from the bottom
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
