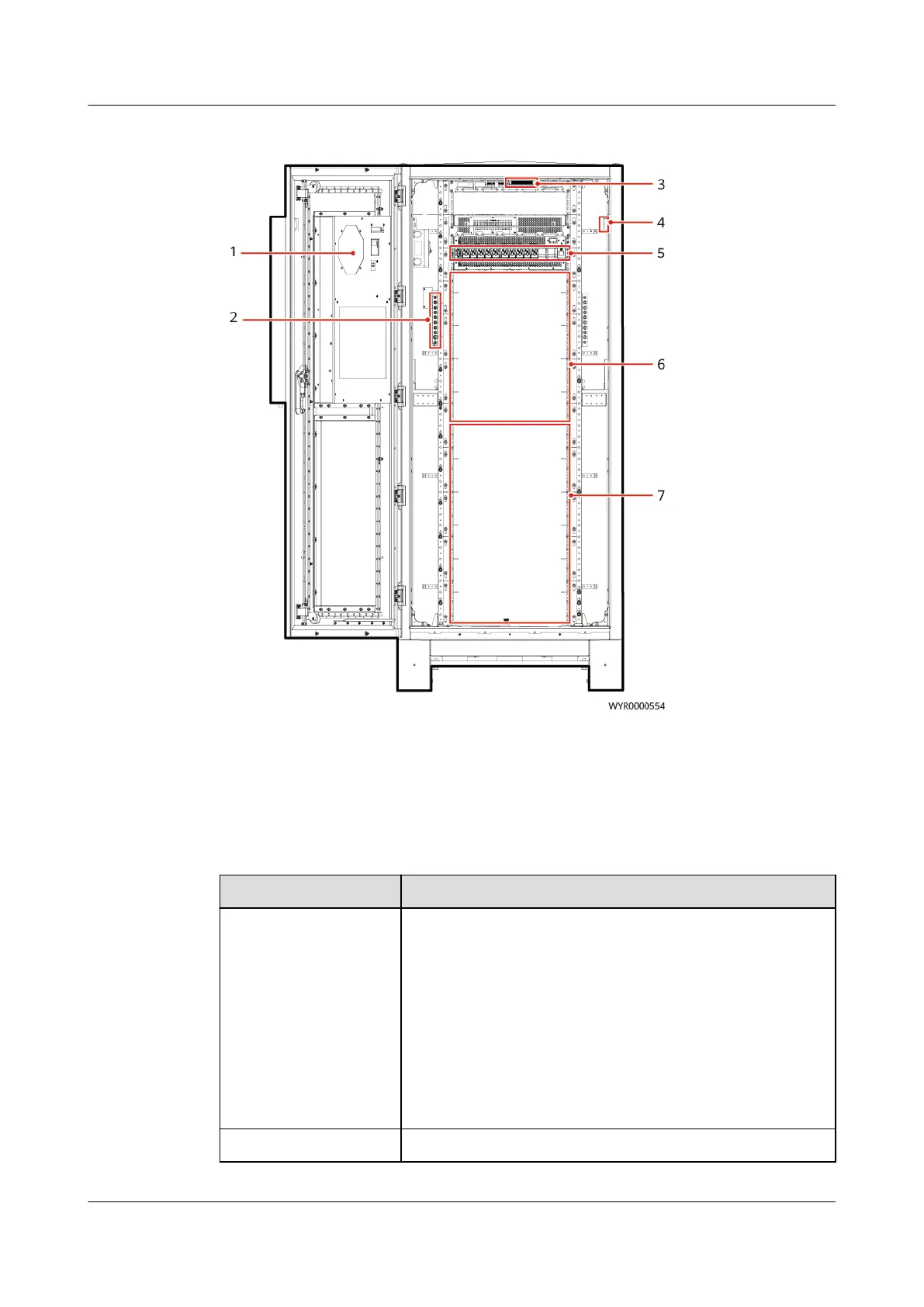

Figure 3-8 ICC800-A1-C2 interior (rear view)
(1) DC air conditioner (2) Ground bar (3) Light
(4) Door status sensor (5) DCDB48-650-13B (6) Space for equipment
(7) Space for batteries
Table 3-3 ICC800-A1-C2 technical specications
Item
Specications
Outdoor cabinet Temperature control: PC3000D-2 DC air conditioners,
3000 W cooling capacity (for the equipment
compartment)
Dimensions (H x W x D): 2100 mm x 900 mm x 1200
mm
Weight: < 500 kg
Installation mode: installed on a
oor
Maintenance mode: maintained from the front and rear
Cabling mode: routed in and out from the bottom
Space for batteries A maximum of 16 ESM lithium batteries
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 3 Component
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 26
