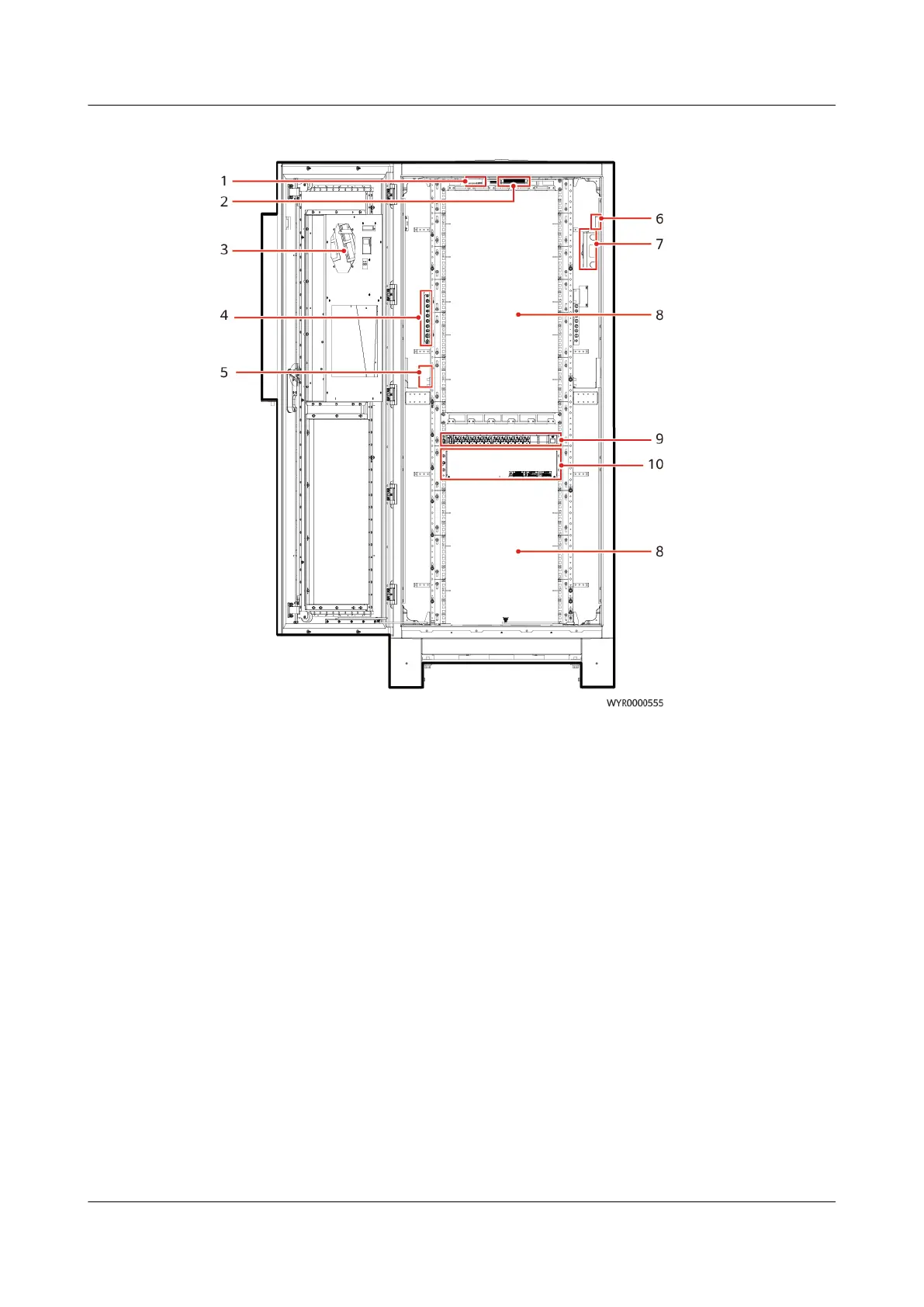

Figure 3-10 Interior (front view)
(1) Smoke sensor (2) Light (3) DC air conditioner
(4) Ground bar (5) Digital temperature and
humidity sensor
(6) Door status sensor
(7) DC output box (8) Space for lithium batteries (9) DCDB48-650-13B
(10) Junction box for lithium
batteries
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
