DIP Switch
The following gure shows the DIP switch on a digital T/H sensor. The following
table describes the DIP switch settings.

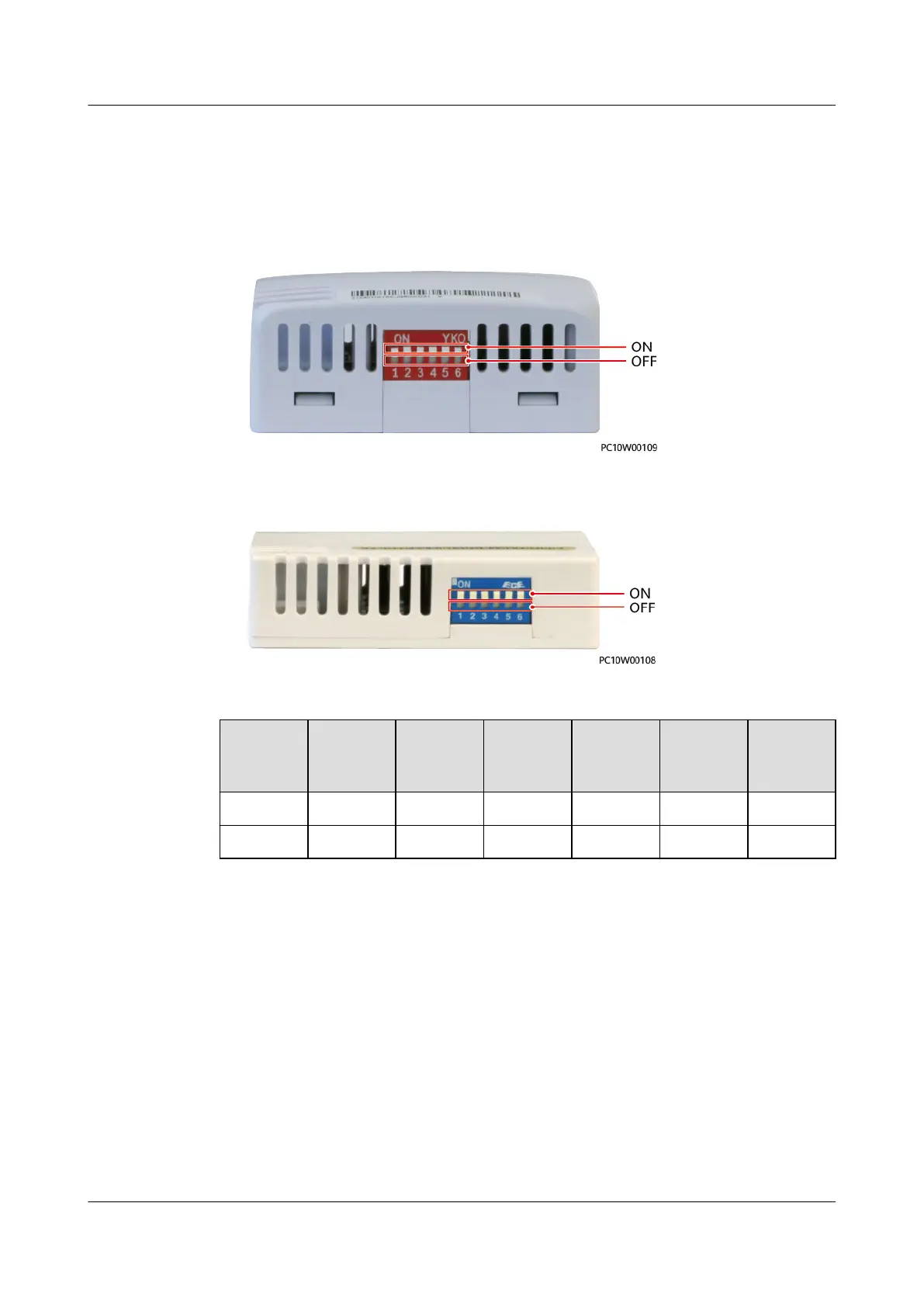

Figure 3-37 DIP switch 1
Figure 3-38 DIP switch 2
Table 3-30 DIP switch settings
Toggle
Switch 1
Toggle
Switch 2
Toggle
Switch 3
Toggle
Switch 4
Toggle
Switch 5
Toggle
Switch 6
T/H
Sensor
Address
ON ON OFF OFF ON ON 51
OFF OFF ON OFF ON ON 52
