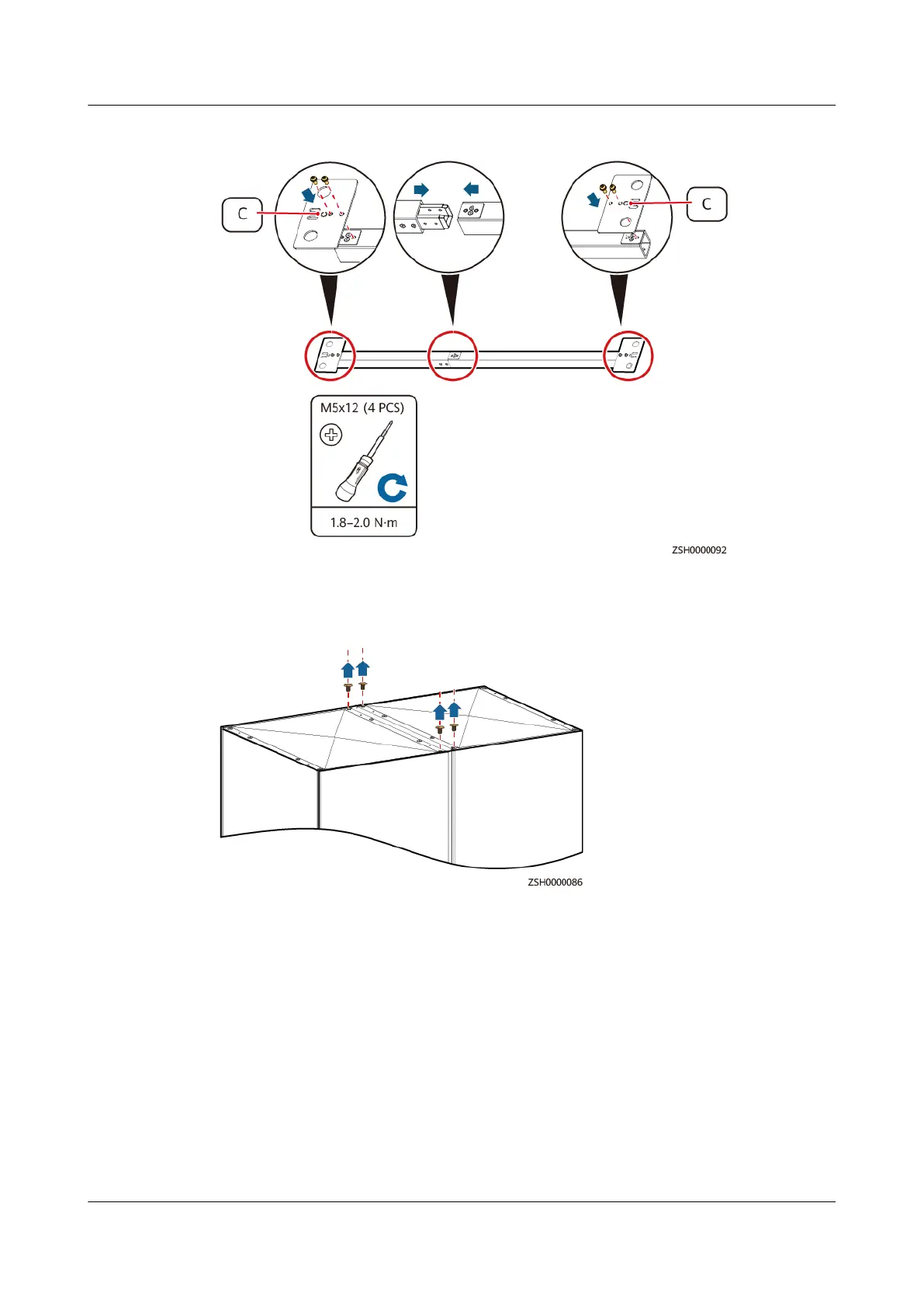

Figure 7-17 Assembling top sealing plate
Step 2 Remove the screws on the top of the combined cabinets.
Figure 7-18 Removing screws
Step 3 Install the waterproof rubber rings for the combined cabinets.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 7 Installing the Cabinet
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 83
