Huawei Quidway S5328C-EI Hardware Description

NOTE
Only S5328C-EI, S5328C-EI-24S, S5352C-EI, S5328C-SI, and S5352C-SI support the 150 W AC power
supply unit.
2.4.2 Panel
Figure 2-5 shows the appearance of the AC power supply unit.
NOTE
The power supply units of S5324TP-SI and S5348TP-SI are integrated on the switch control unit (SCU).
They do not support power modules. The functions of the power supply unit switch are the same as the
functions of the power module switch. The power supply units of S5324TP-SI and S5348TP-SI do not
have the status indicators. For the status and meanings of power indicators, see the PWR indicator
description in section 6.1 Indicators on the Front Panel.

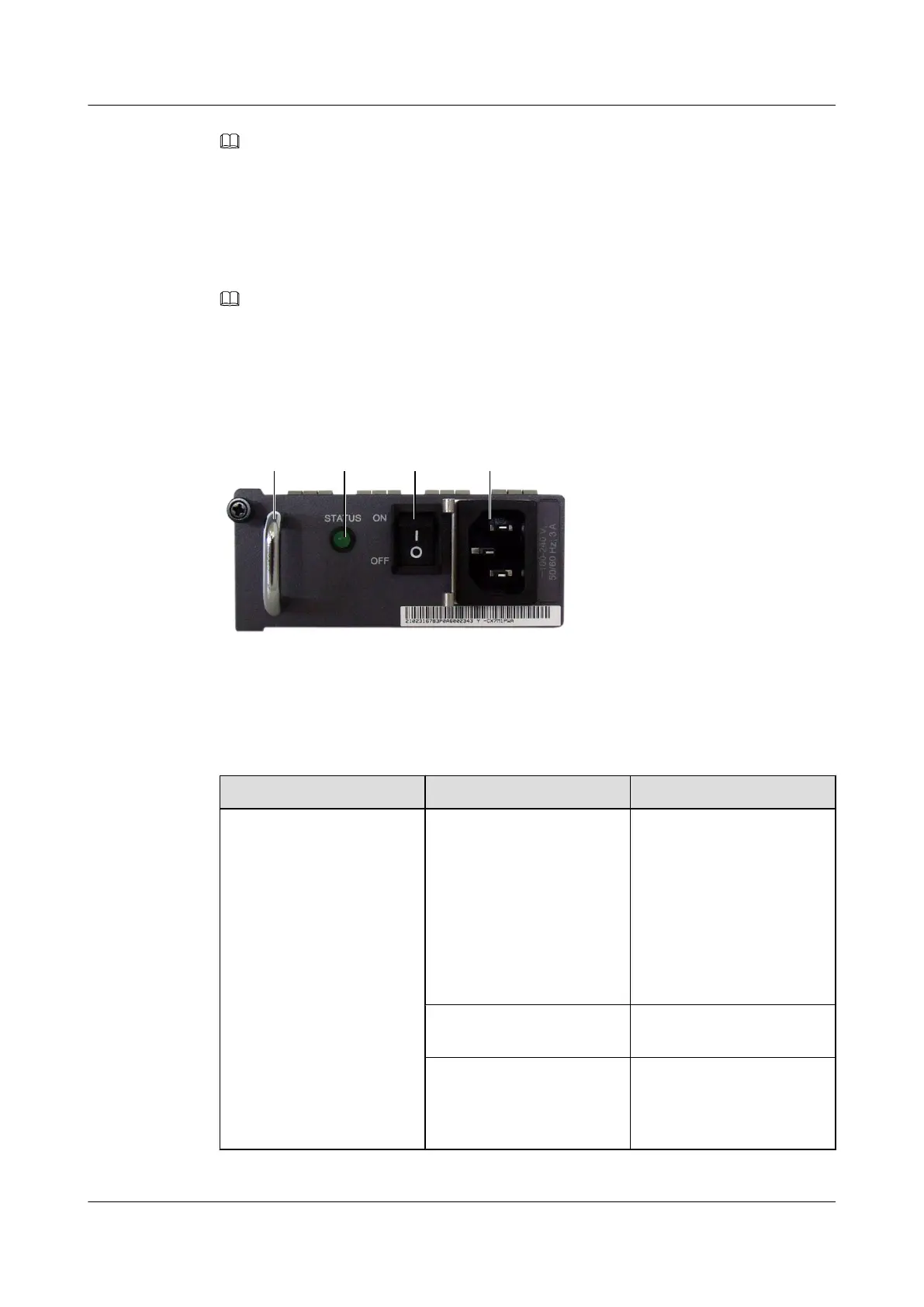

Figure 2-5 Appearance of the AC power supply unit
1 2 3 4
1. Handle
2. Indicator 3. Switch 4. AC jack
Table 2-3 describes the meanings of the indicator.
Table 2-3 Description of the 150 W AC power indicators
Name
Status Description
STATUS Off
l The input power is out of
range, for example, no
AC input power, AC
input overvoltage, and
AC input undervoltage.
l The output power is out of
range, for example,
undervoltage or
overtemperature occurs.
Green
The AC input power is within
range.
Blinking green The output power is out of
range, for example,
overvoltage, overcurrent, or
short circuit occurs.
2 Power Supply Unit
Quidway S5300 Series Ethernet Switches
Hardware Description
2-8 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2011-01-30)
