Huawei Quidway S5328C-EI Hardware Description

The PoE function transmits power together with data to terminals over cables or transmits power
without data over idle lines. The S5300 can transmit power together with data at a rate of up to
1000 Mbit/s.
2.5.2 Panel
The S5300 supports the 250 W PoE power supply unit, as shown in Figure 2-6, and 500 W PoE
power supply unit, as shown in Figure 2-7. The power fan appearances of the two power supply
units are different.

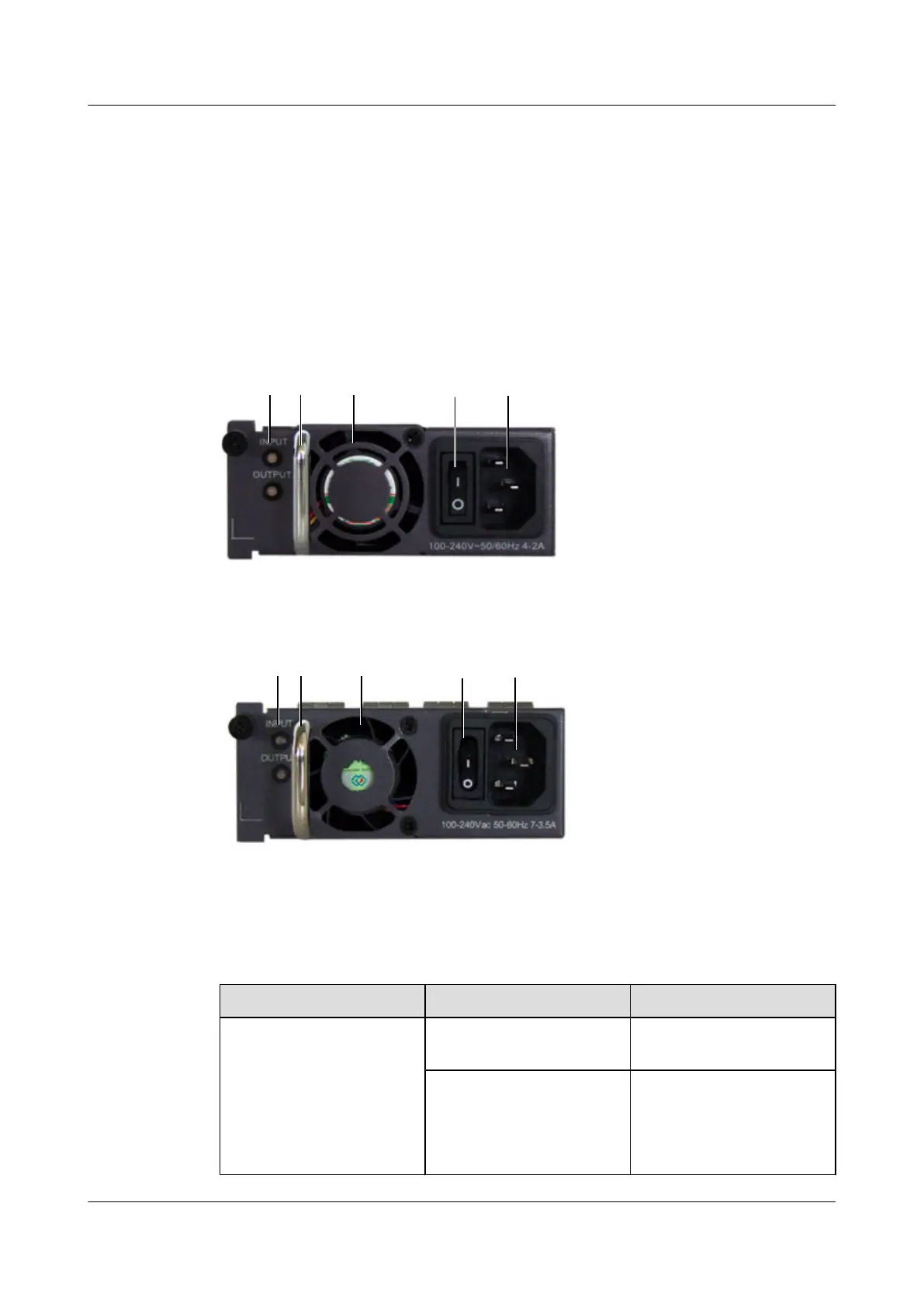

Figure 2-6 Appearance of the 250 W AC PoE power supply unit
1 2 3 5
4
1. Indicator
2. Handle 3. Fan 4. Switch 5. AC jack
Figure 2-7 Appearance of the 500 W AC PoE power supply unit
1 2 3 5
4
1. Indicator
2. Handle 3. Fan 4. Switch 5. AC jack
Table 2-5 describes the meanings of the indicator.
Table 2-5 Description of the AC PoE power indicators
Name
Status Description
INPUT Green The input power is within
range.
Red The input power is out of
range, for example:
l Undervoltage
l Overvoltage
2 Power Supply Unit
Quidway S5300 Series Ethernet Switches
Hardware Description
2-10 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2011-01-30)
