Item Description
Color Green-yellow
Connector type (X1/X2) OT/OT naked crimping terminal
Gauge
10 AWG (cross-sectional area ≈ 5.2 mm
2
)
Cable type
l Standards compliance: UL1015
l Length: 0.3 m
Maximum current 50.0 A
Fireproof level VW-1, CSA FT1
5.4 Console Cables
A console cable is used to debug or maintain a local S5300.
Applications
A console cable connects the console port of the S5300 to the serial port of an operation terminal
to transmit configuration data. A shielded cable or an unshielded cable can be used according
to the onsite situation.
A console cable connects the S5300 and terminal as follows:
l The 8-pin RJ45 connector is inserted into the S5300 console port.
l The DB9 connector is inserted into the terminal serial port.
Appearance and Structure

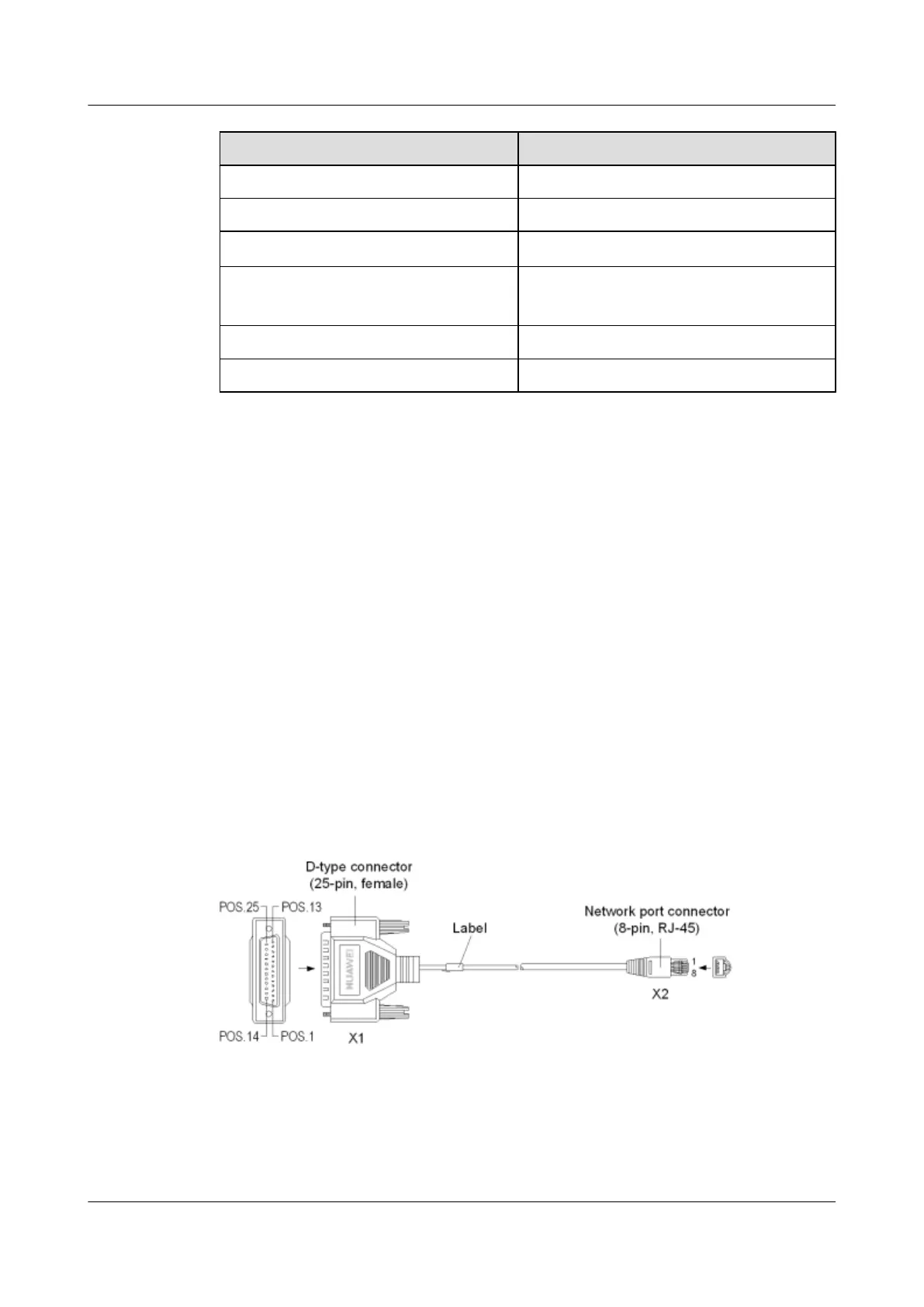

Figure 5-5 shows the structure of a console cable.
Figure 5-5 Structure of a console cable
Pin Assignments
Table 5-4 describes the pin assignments of a console cable.
5 Cables
Quidway S5300 Series Ethernet Switches
Hardware Description
5-6 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2011-01-30)
