6.1 Indicators on the Front Panel
This section describes the indicators on the S5300 front panel.
Indicators of a Non-PoE S5300
S5324TP-SI is non-PoE switche, and has a single power supply unit.
NOTE
Only S5348TP-SI and S5324TP-SI have redundancy power supply (RPS) indicators.

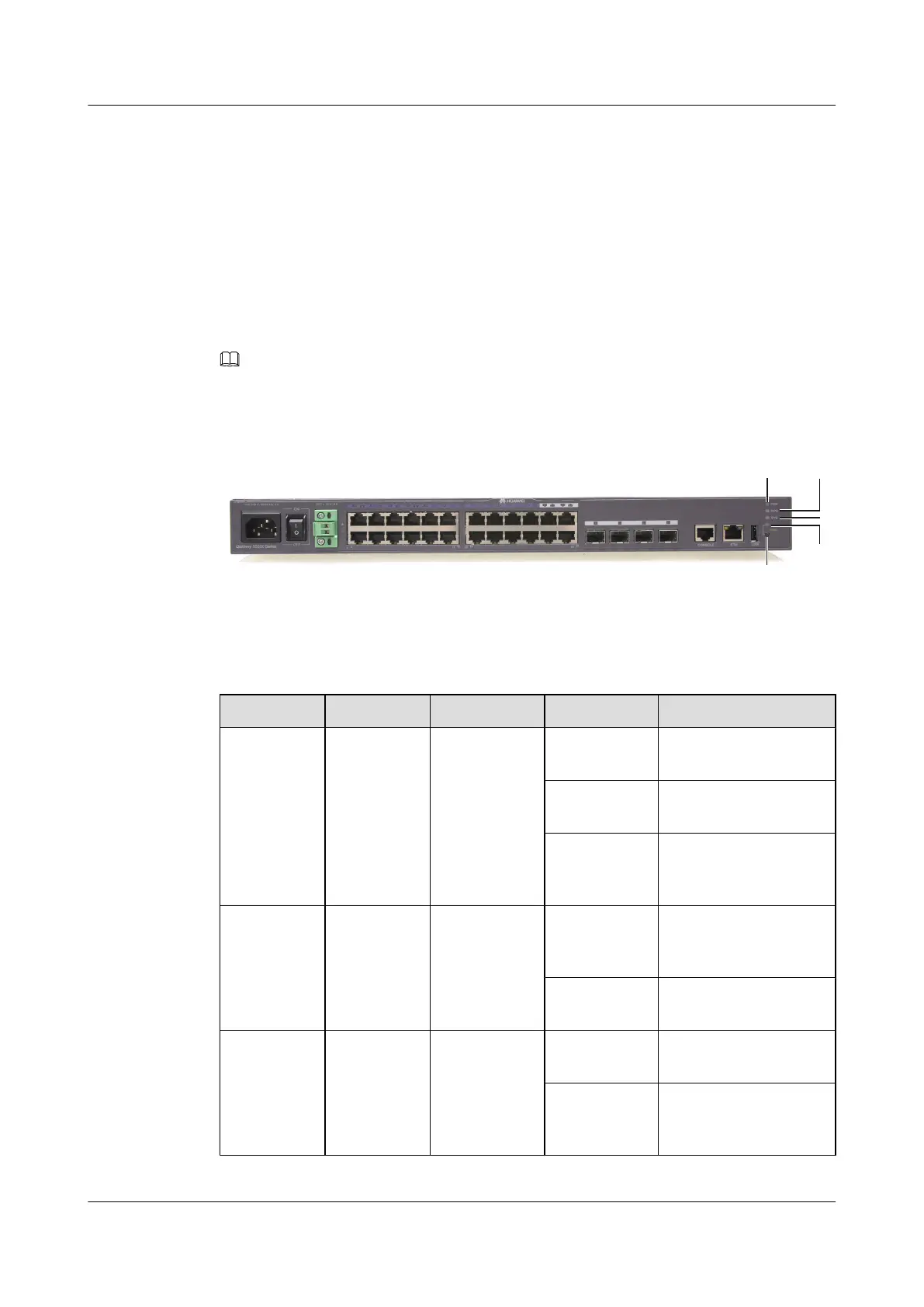

Figure 6-1 S5324TP-SI indicators
2
3
4
5
1
Table 6-1 Description of S5324TP-SI indicators
No.
Indicator Identifier Status Description
1 Power
indicator
PWR Off The switch is powered
off.
Green The switch is powered
on.
Orange The power supply unit is
faulty, and the external
RPS system is started.
2 RPS
indicator
RPS Off The RPS is not
connected to the switch
or the RPS is faulty.
Green The RPS is connected to
the switch.
3 System status
indicator
SYS Off The system is not
operating.
Green The system is not
operating properly or is
starting.
6 List of Indicators
Quidway S5300 Series Ethernet Switches
Hardware Description
6-2 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2011-01-30)
