Huawei Quidway S5328C-EI Hardware Description

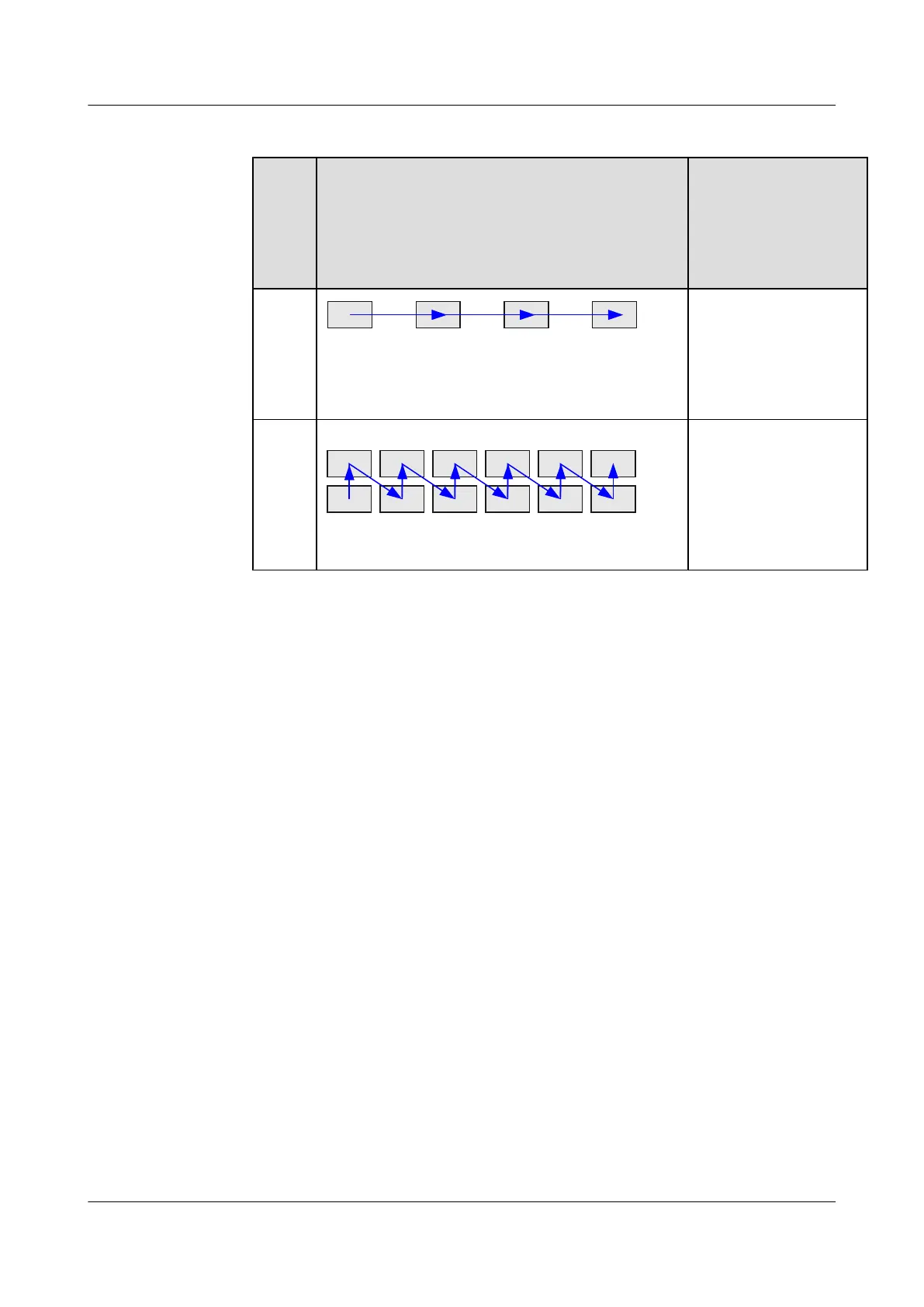

Table 4-2 Interface numbering rules
Num
ber of
Rows
for
Interf
aces
Diagram for Interface Numbering Description
1
1 2 3 4
There is only one row of
interfaces on the
interface card. These
interfaces are numbered
from left to right starting
with 1.
2
1 3 5 7 9 11
2 4 6 8 10 12
There are two rows of
interfaces on the
interface card. These
interfaces are numbered
from bottom to top and
left to right starting with
1.
If an interface does not reside on a front card and is the fifth interface from left to right and top
to bottom, the interface is named Ethernet 0/0/5. If the stacking function is enabled and the stack
ID is 1, the interface is named Ethernet 1/0/5.
If an interface resides on a front card and is the third interface from left to right, the interface is
named Ethernet 0/1/3. If the stacking function is enabled and the stack ID is 1, the interface is
named Ethernet 1/1/3.
4.2 E2XX-2-Port 10GE XFP Optical Interface Card
This section describes the functions, appearance, indicators, interfaces, and technical
specifications of the 2-port 10GE XFP optical interface card.
4.2.1 Functions and Applications
4.2.2 Panel
4.2.3 Interfaces
4.2.4 Interface Attributes
4.2.5 Technical Specifications
4.2.1 Functions and Applications
Functions
The E2XX provides two 10GE XFP optical interfaces to implement data access and line-speed
switching.
4 Interface Cards
Quidway S5300 Series Ethernet Switches
Hardware Description
4-4 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2011-01-30)
