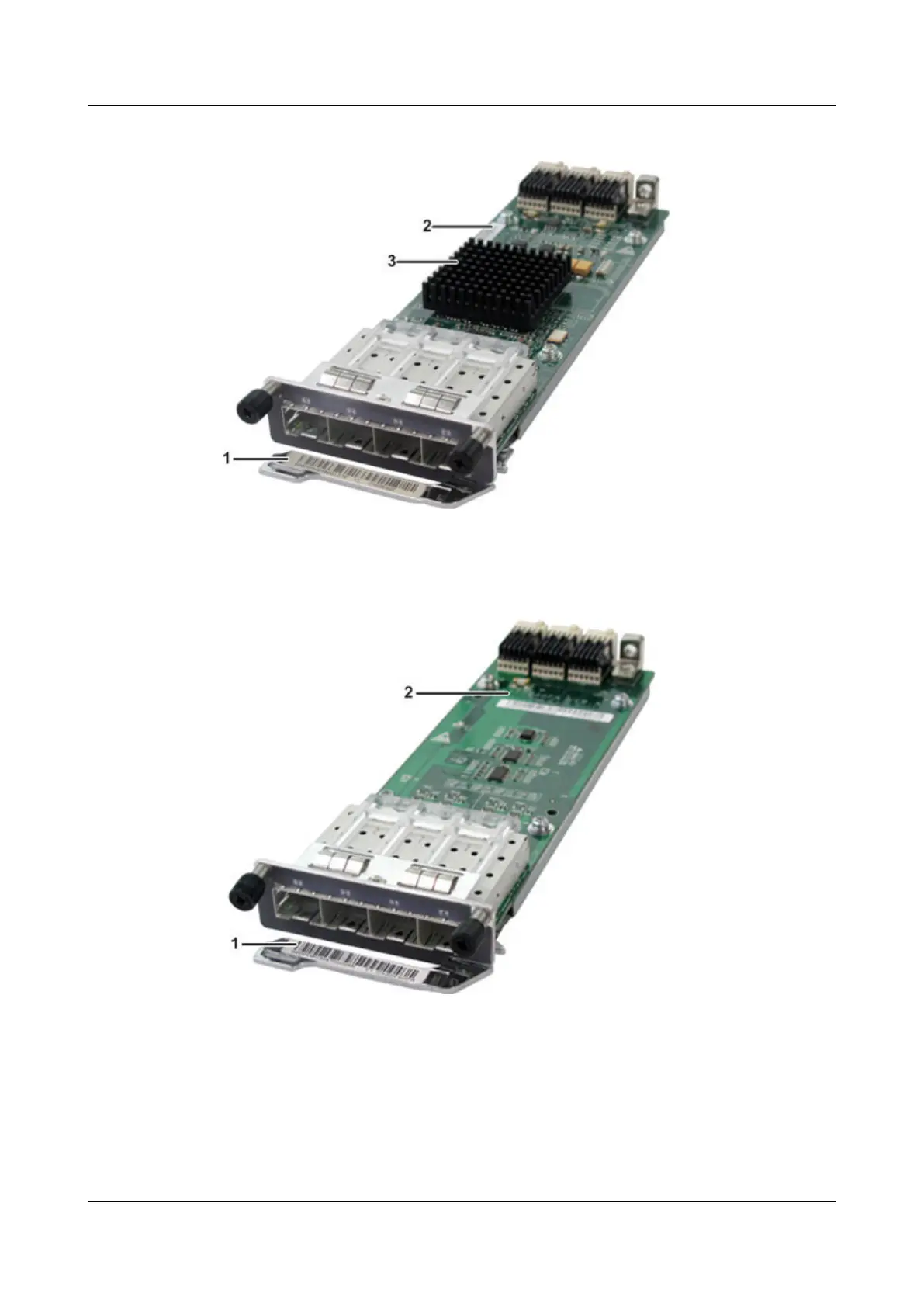

Figure 4-3 Appearance of the E4GF
Figure 4-4 shows the appearance of the E4GFA (applicable to the S5300SI).
Figure 4-4 Appearance of the E4GFA
1. Front panel label
2. Silkscreen and card label 3. Cooling fin
Differences between the E4GF and E4GFA are as follows:
l The labels on the front panels are different. The front panel label of the E4GF is CX22E4GF,
and the front panel label of the E4GFA is CX22E4GFA.
l The silkscreens and bar codes on the front cards are different, as shown in Figure 4-3 and
Figure 4-4. The silkscreens show the card types and versions. The silkscreen of the E4GF
