Huawei SUN2000-3KTL-M1 User Manual

NO TICE
● Cables with high rigidity, such as armored cables, are not recommended as DC
input power cables, because poor contact may be caused by the bending of the
cables.
● Before assembling DC connectors, label the cable polarities correctly to ensure
correct cable connections.
● After crimping the positive and negative metal terminals, pull back the DC
input power cables to ensure that they are securely connected.
● Insert the crimped metal terminals of the positive and negative power cables
into the appropriate positive and negative connectors. Then pull back the DC
input power cables to ensure that they are connected securely.
● If a DC input power cable is reversely connected and the DC switch is turned
on, do not operate on the DC switch or the positive/negative connectors
immediately. Otherwise, the device may be damaged. The caused device
damage is not covered under any warranty. Wait until the solar irradiance
declines at night and the PV string current reduces to below 0.5 A, and then
turn
o the DC switch and remove the positive and negative connectors.
Correct the PV string polarity before reconnecting the PV string to the
SUN2000.
NO TE
● The DC voltage measurement range of the multimeter must be at least 1100 V.
● If the voltage is a negative value, the DC input polarity is incorrect. Correct the polarity.
● If the voltage is greater than 1100 V DC, too many PV modules
congured to the same
string. Remove some PV modules.
● If the PV string is congured with an optimizer, check the cable polarity by referring to
the smart PV optimizer quick guide.

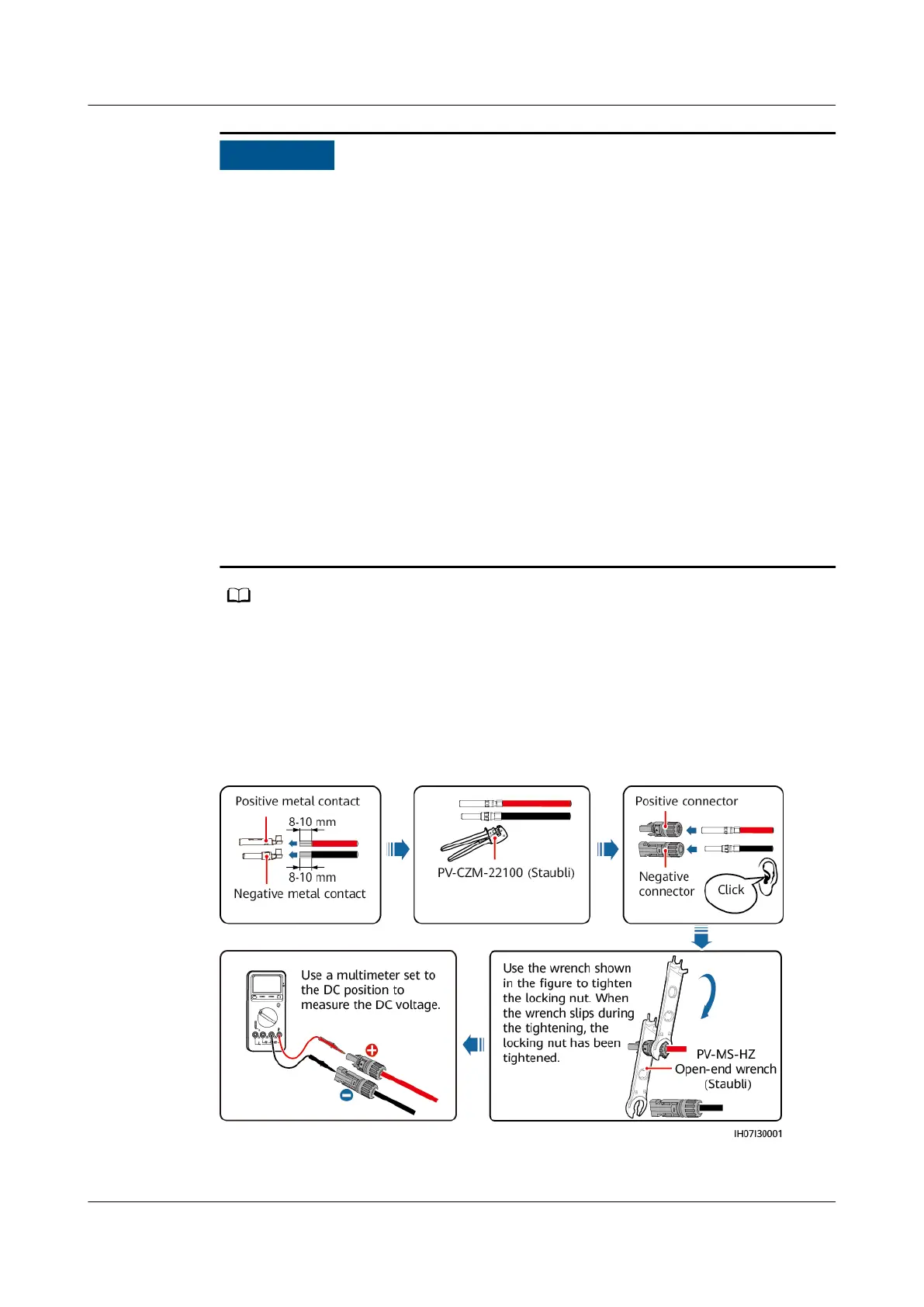

Figure 5-13 Installing DC input power cables
----End
SUN2000-(3KTL-10KTL)-M1
User Manual 5 Electrical Connections
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 43

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
