7.1.3 Creating a PV Plant and a User

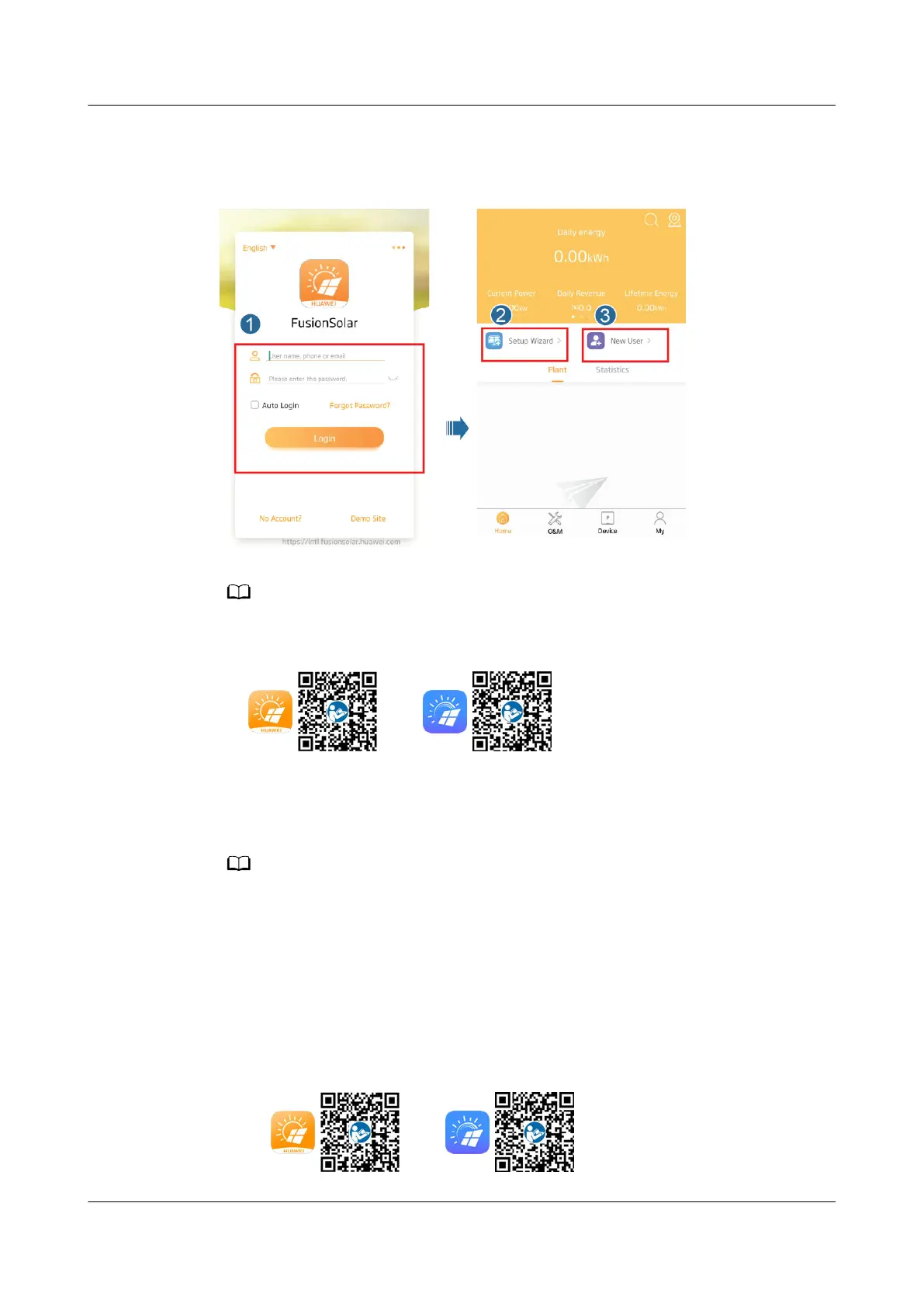

Figure 7-4 Creating a PV plant and a user
NO TE
For details about how to use the site deployment wizard, see FusionSolar App Quick
Guide . During the FusionSolar app upgrade, scan the QR code to download the
correponding quick guide according to the downloaded app version.
7.1.4 (Optional) Setting the Physical Layout of the Smart PV
Optimizers
NO TE
● If smart PV optimizers are congured for PV strings, ensure that the smart PV
optimizers have been successfully connected to the SUN2000 before performing the
operations in this section.
● Check that the SN labels of smart PV optimizers are correctly attached to the physical
layout template.
● Take and save a photo of the physical layout template. Keep your phone parallel to the
template and take a photo in landscape mode. Ensure that the four positioning points in
the corners are in the frame. Ensure that each QR code is attached within the frame.
● For details about the physical layout of smart PV optimizers, see FusionSolar App
Quick Guide . During the FusionSolar app upgrade, scan the QR code to download the
correponding quick guide according to the downloaded app version.
SUN2000-(3KTL-10KTL)-M1
User Manual 7 Man-Machine Interaction
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 69

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
