5 Electrical Connections
5.1 Installation Preparation

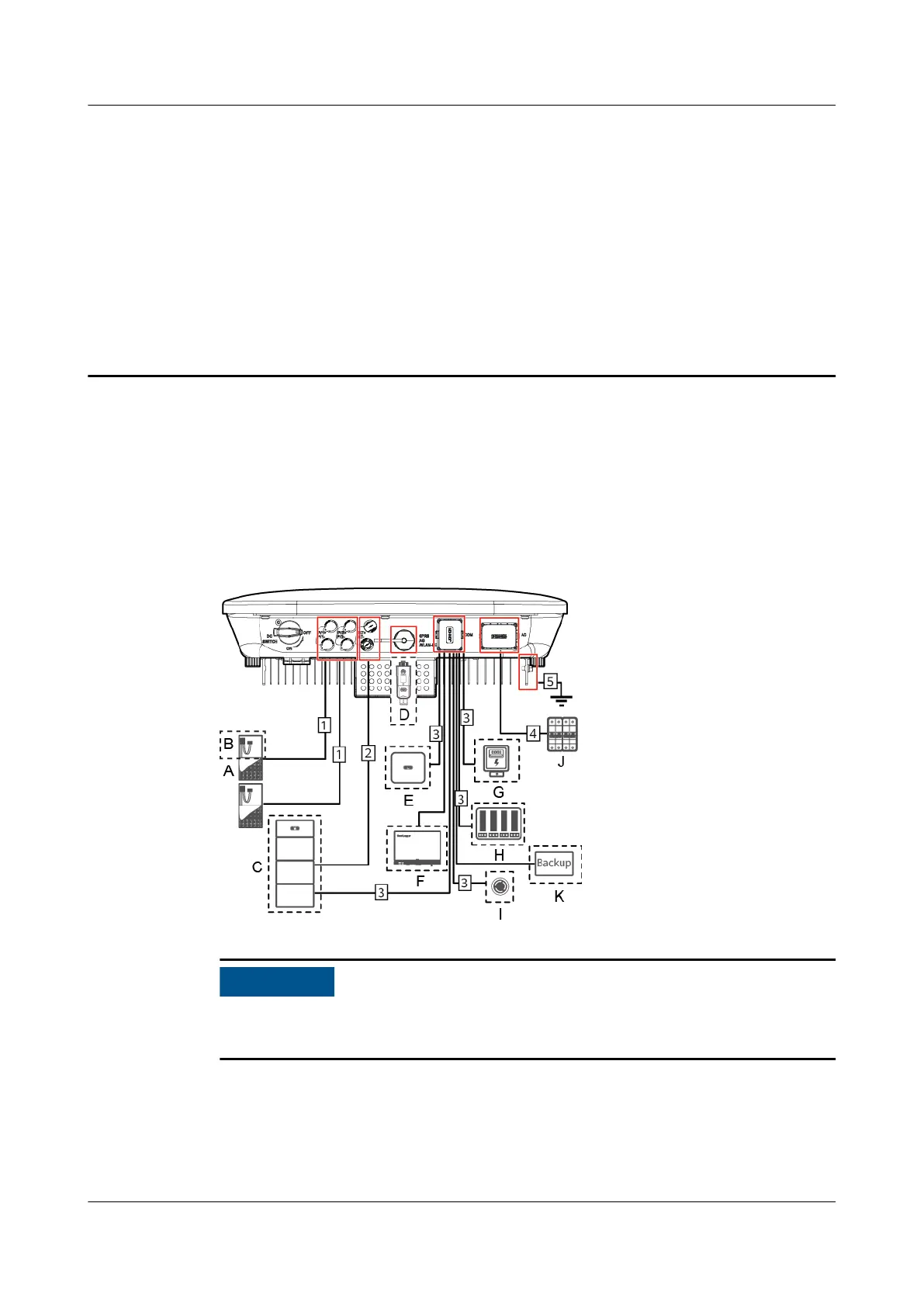

Figure 5-1 SUN2000 cable connections (dashed boxes indicate optional
components)
NO TICE
If a Smart Dongle is congured, it is recommended that you install it before
connecting the signal cable.
SUN2000-(3KTL-10KTL)-M1
User Manual 5 Electrical Connections
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 31
