Huawei SUN2000-3KTL-M1 - Connecting an RS485 Communications Cable (between a Power Meter and a Battery)

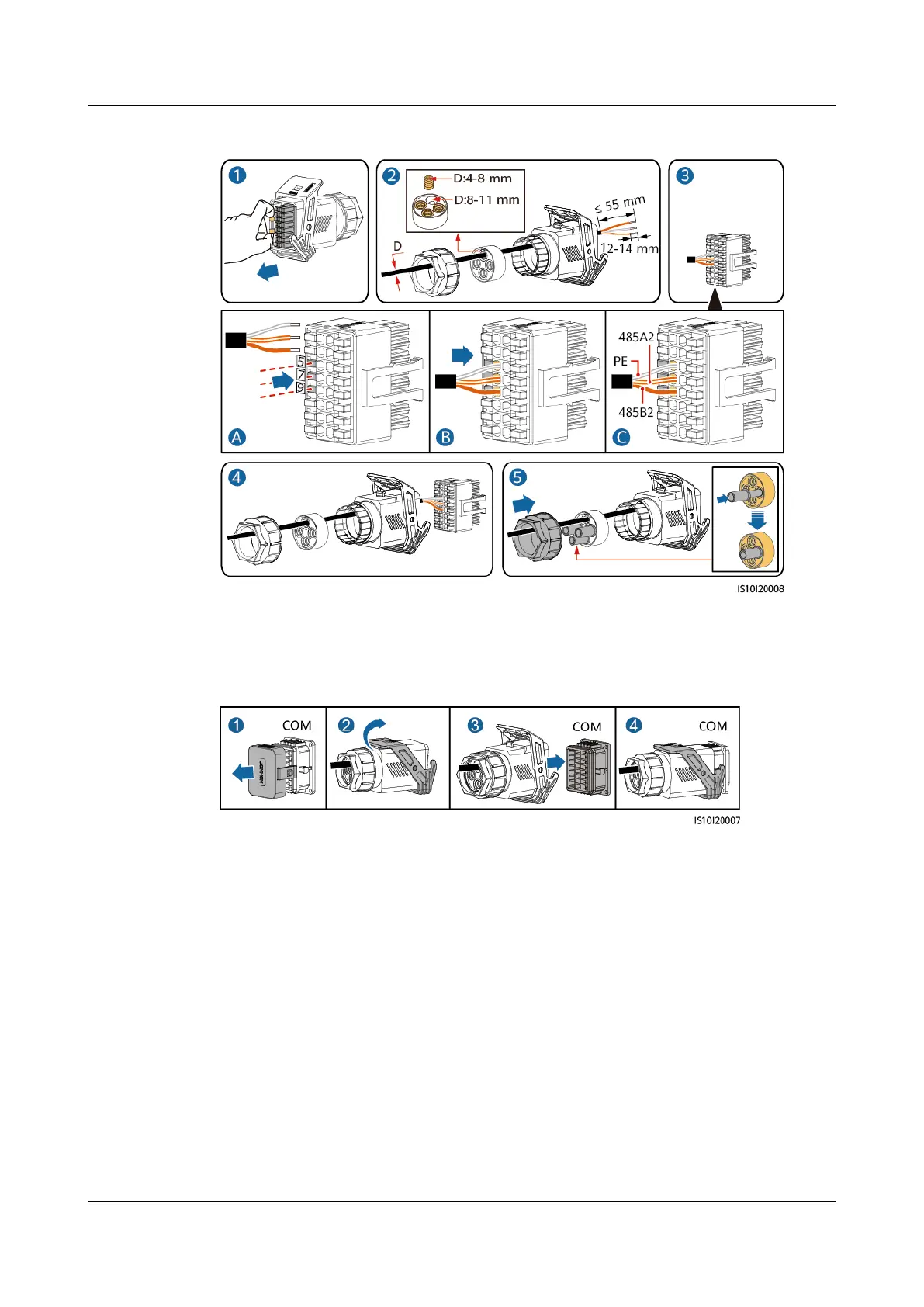

Figure 5-25 Installing the cable
Step 2 Connect the signal cable to the COM port.
Figure 5-26 Securing the signal cable connector
----End
5.7.3 Connecting an RS485 Communications Cable (Between a
Power Meter and a Battery)
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(3KTL-10KTL)-M1
