Huawei SUN2000-3KTL-M1 User Manual

NO TE
● If the built-in WiFi module of the SUN2000 connects to the app, only device commissioning
can be performed.
● In the SUN2000 cascading scenario, the master inverter model can be SUN2000-
(3KTL-10KTL)-M1, and the slave inverter model can be SUN2000-(3KTL-10KTL)-M1,
SUN2000-(5KTL–20KTL)-M0, SUN2000-50KTL/60KTL/65KTL-M0, SUN2000-29.9KTL/36KTL,
or SUN2000-33KTL-A.
Supported Power Grid Types
The SUN2000 supports TN-S, TN-C, TN-C-S, TT, and IT power grids.

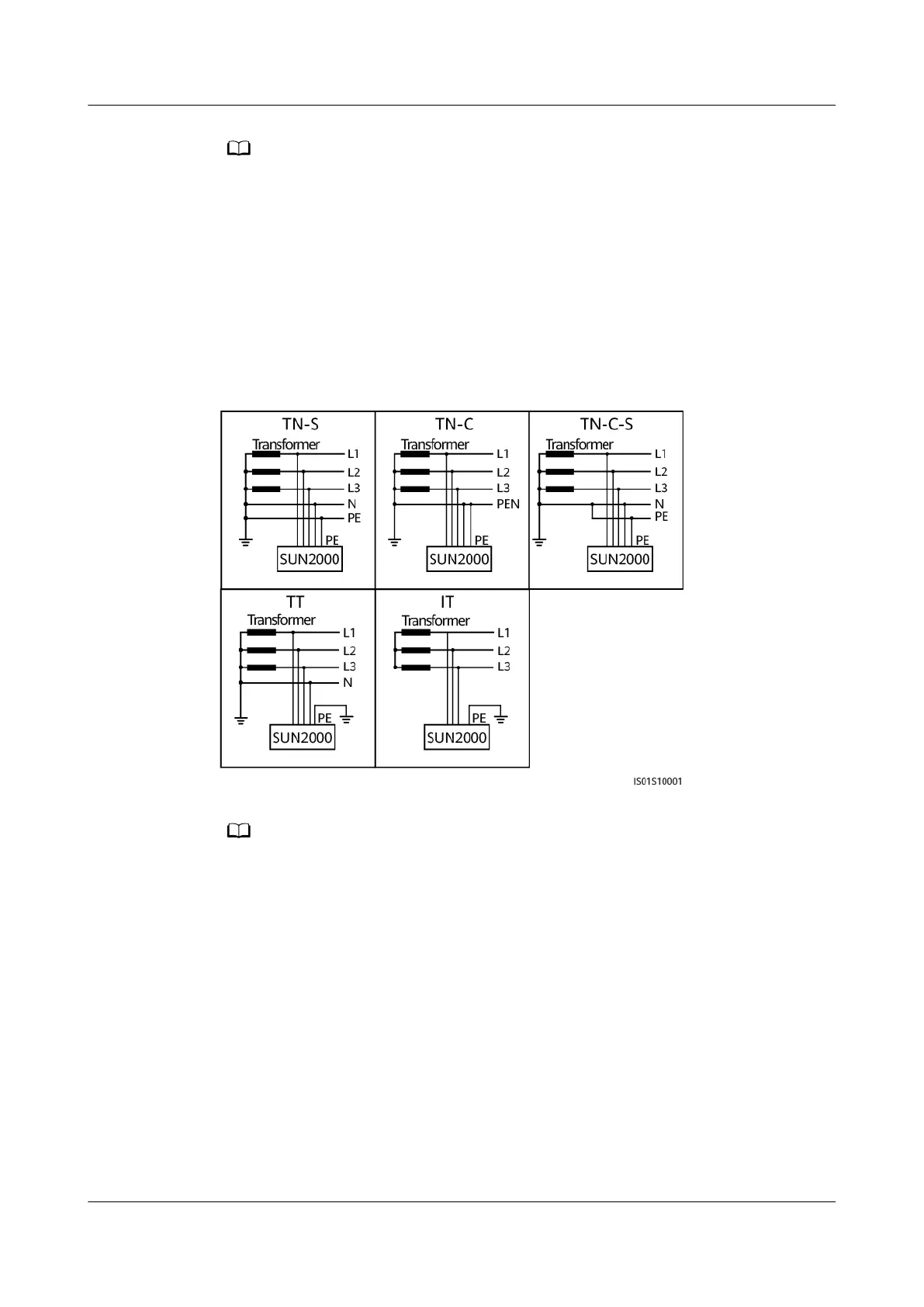

Figure 2-3 Power grid types
NO TE
● When the SUN2000 is used in the TT power grid, the N-to-PE voltage must be less than
30 V.
● When the SUN2000 is used in the IT power grid, set Isolation to Input ungrounded,
with TF.
2.2 Appearance
SUN2000-(3KTL-10KTL)-M1
User Manual 2 Overview
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 9

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
