Huawei SUN2000-3KTL-M1 User Manual

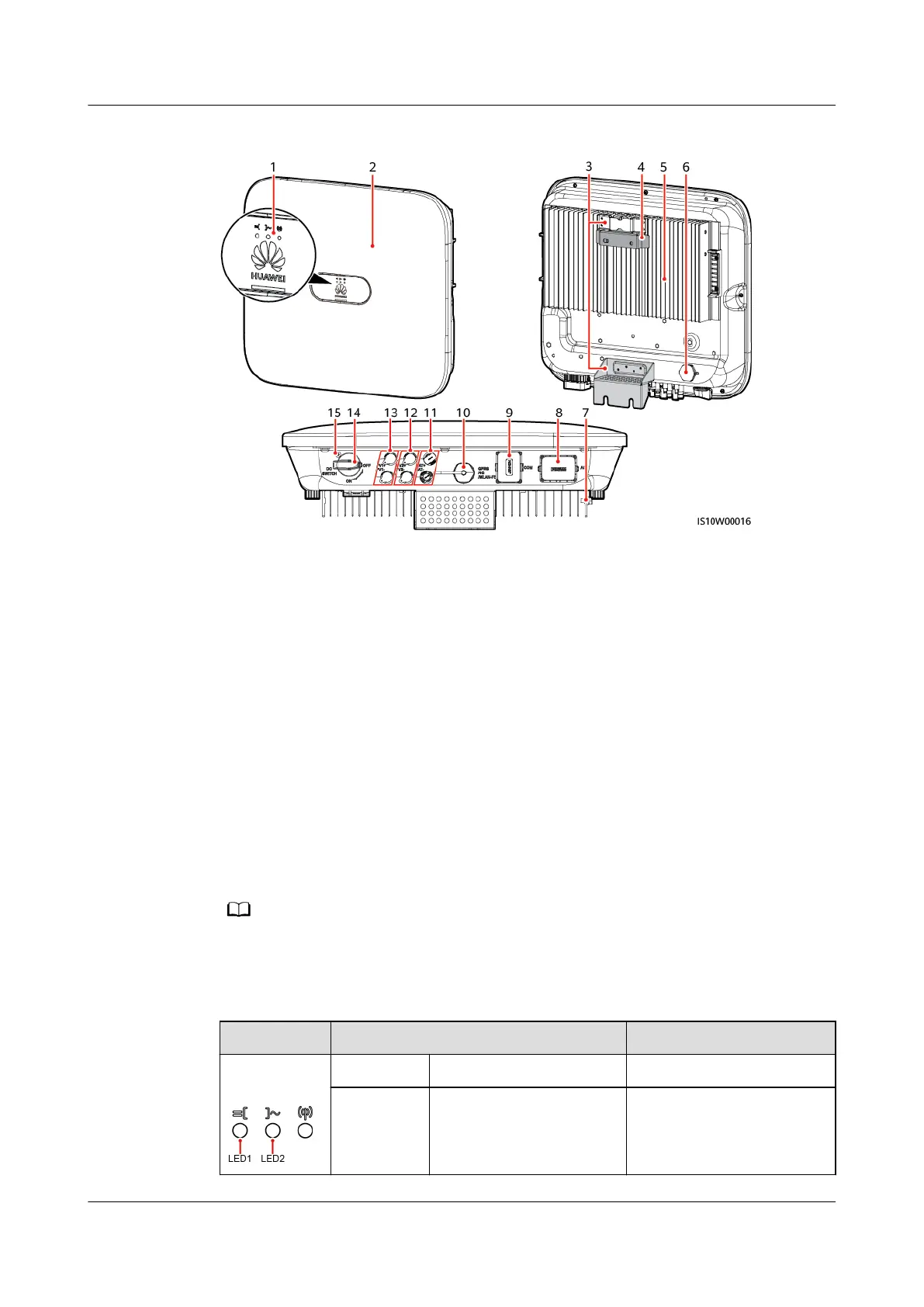

Figure 2-4 Appearance
(1) LED indicator (2) Front panel
(3) Hanging kit (4) Mounting bracket
(5) Heat sink (6) Ventilation valve
(7) Ground screw (8) AC output port (AC)
(9) Communications port (COM) (10) Smart Dongle port (GPRS/4G/
WLAN-FE)
(11) Battery terminals (BAT+/BAT–) (12) DC input terminals (PV2+/PV2–)
(13) DC input terminals (PV1+/PV1–) (14) DC switch (DC SWITCH)
(15) Hole for the DC switch locking screw
NO TE
Two M6 screw holes are reserved on the left and right sides of the SUN2000 for installing
the awning.
Table 2-2 Indicator description
Category
Status Description
Running
indicator
LED1 LED2 -
Steady
green
Steady green The SUN2000 is
operating in grid-tied
mode.
SUN2000-(3KTL-10KTL)-M1
User Manual 2 Overview
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 10

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
