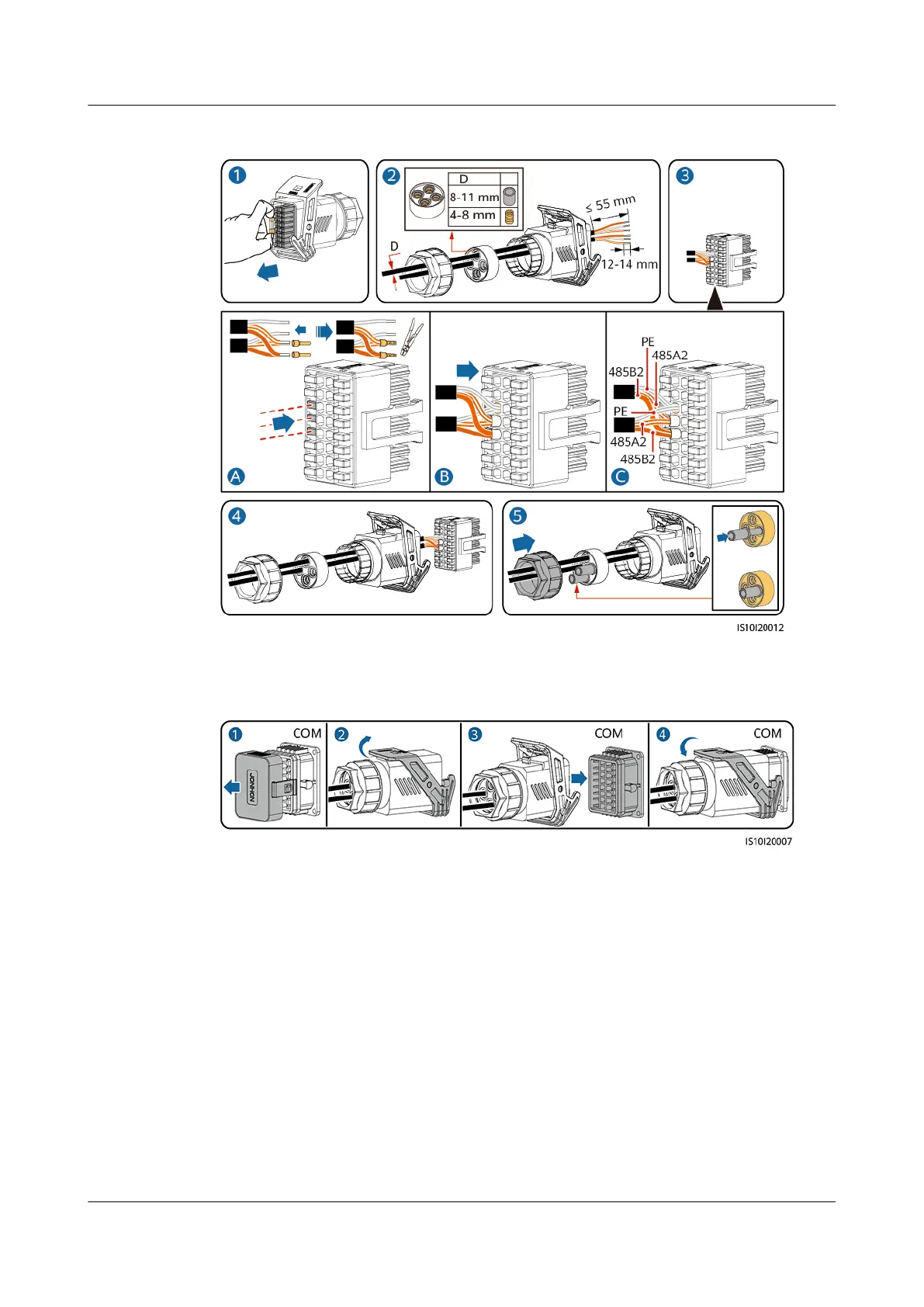

Figure 5-27 Installing the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-28 Securing the signal cable connector
----End
5.7.4 Connecting the Power Grid Scheduling Signal Cable
Cable Connection
The following
gure shows the cable connections between the inverter and the
Ripple Control Device.
SUN2000-(3KTL-10KTL)-M1
User Manual 5 Electrical Connections
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 57
