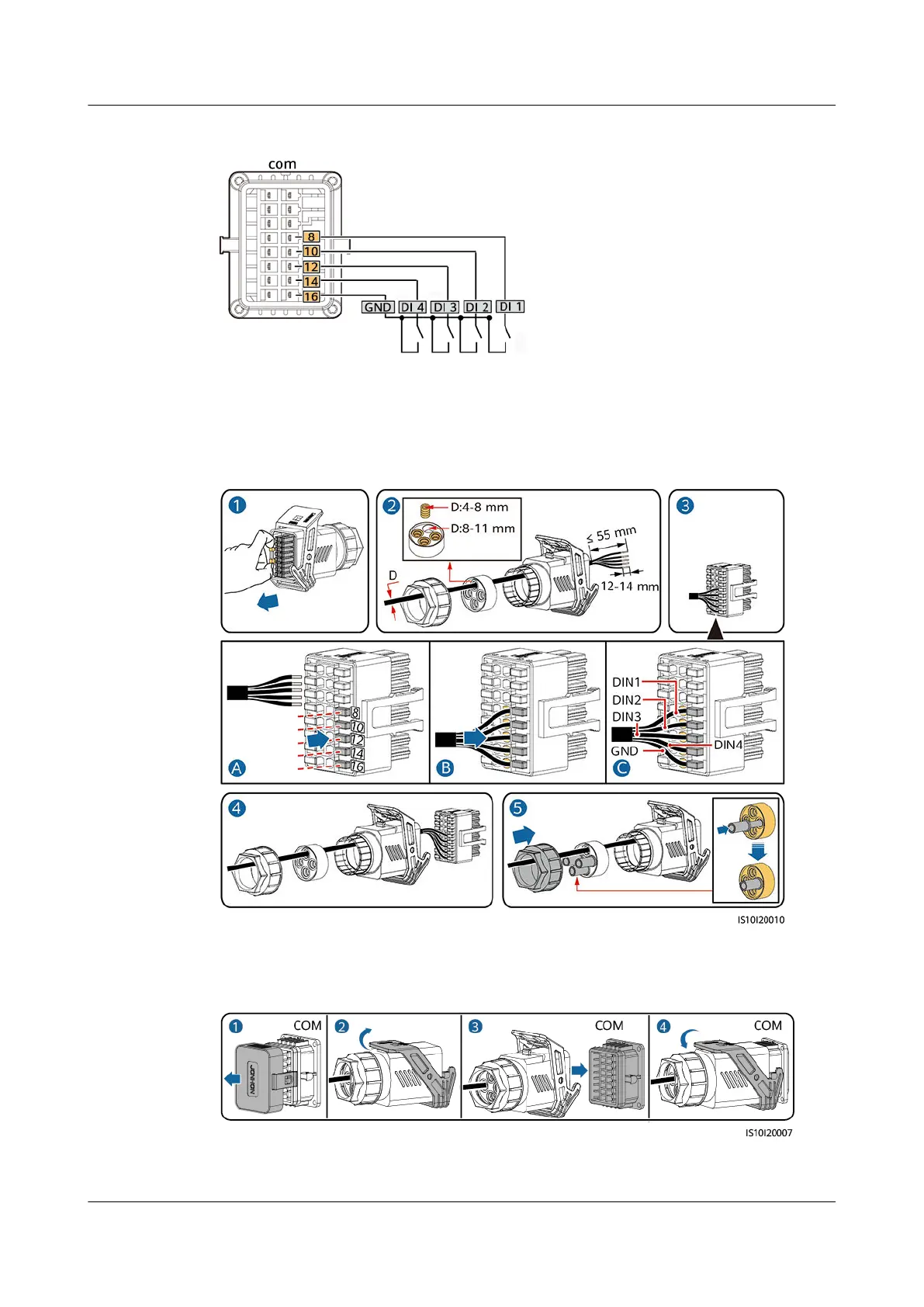

Figure 5-29 Cable connection
Procedure
Step 1 Connect the signal cable to the signal cable connector.
Figure 5-30 Installing the cable
Step 2 Connect the signal cable to the COM port.
Figure 5-31 Securing the signal cable connector
----End
