Huawei SUN2000-3KTL-M1 User Manual

NO TICE
● Prepare an anti-theft lock suitable for the lock hole diameter (Ф8 mm) by
yourself. Ensure that the lock can be installed successfully.
● Outdoor waterproof lock is recommended.
● Keep the key to the anti-theft lock properly.

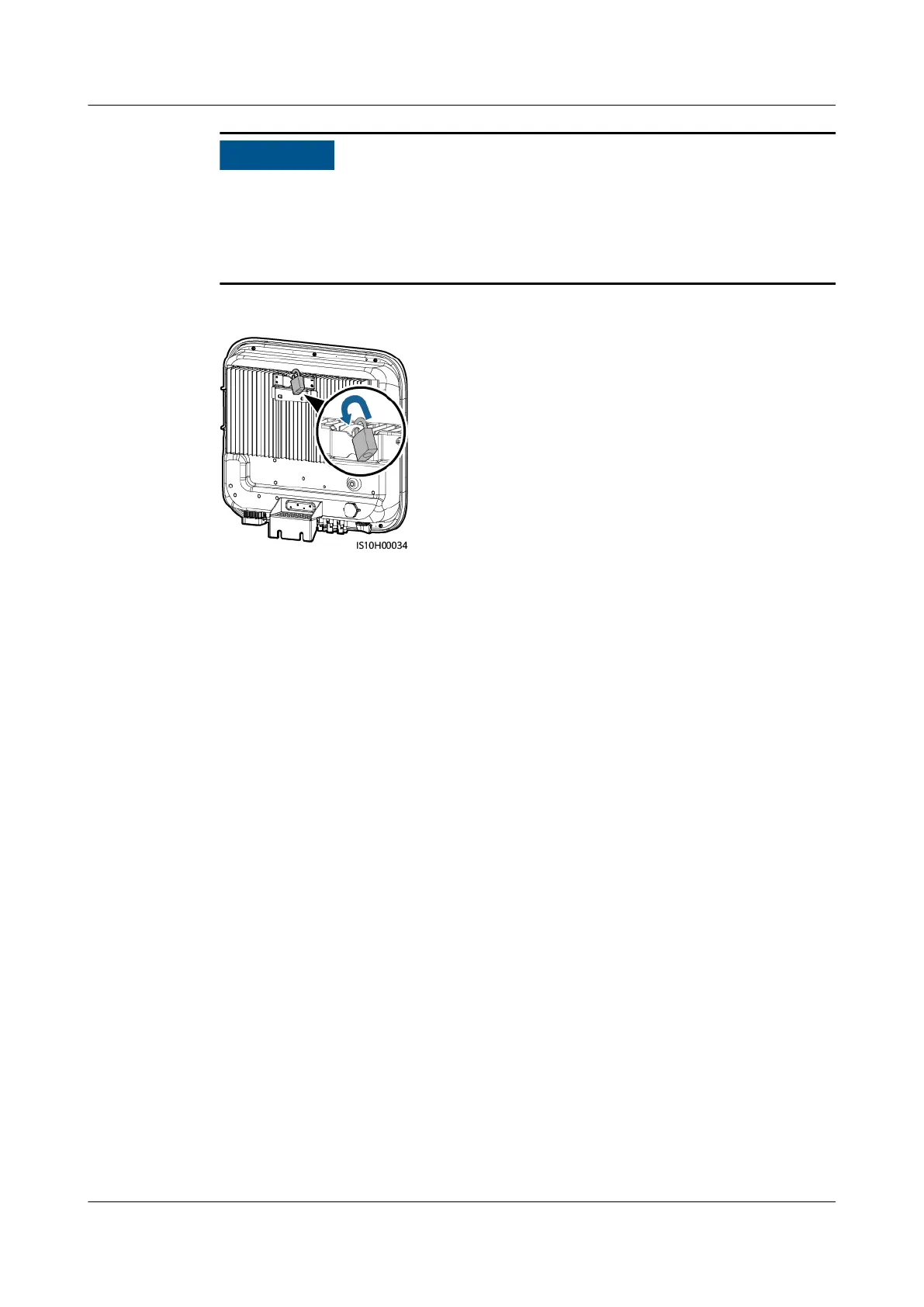

Figure 4-12 Installing an anti-theft lock
----End
4.5.2 Support-mounted Installation
Prerequisites
Prepare M6 stainless bolt assemblies (including
at washers, spring washers, and
M6 bolts) with appropriate lengths as well as matched at washers and nuts
based on the support
specications.
Procedure
Step 1 Determine the hole positions based on the
marking-o template, and then mark
the hole positions using a marker.
SUN2000-(3KTL-10KTL)-M1
User Manual 4 Installation
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 27

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
