Huawei SUN2000-3KTL-M1 - Connecting the RS485 Communications Cable (Smart Power Sensor)

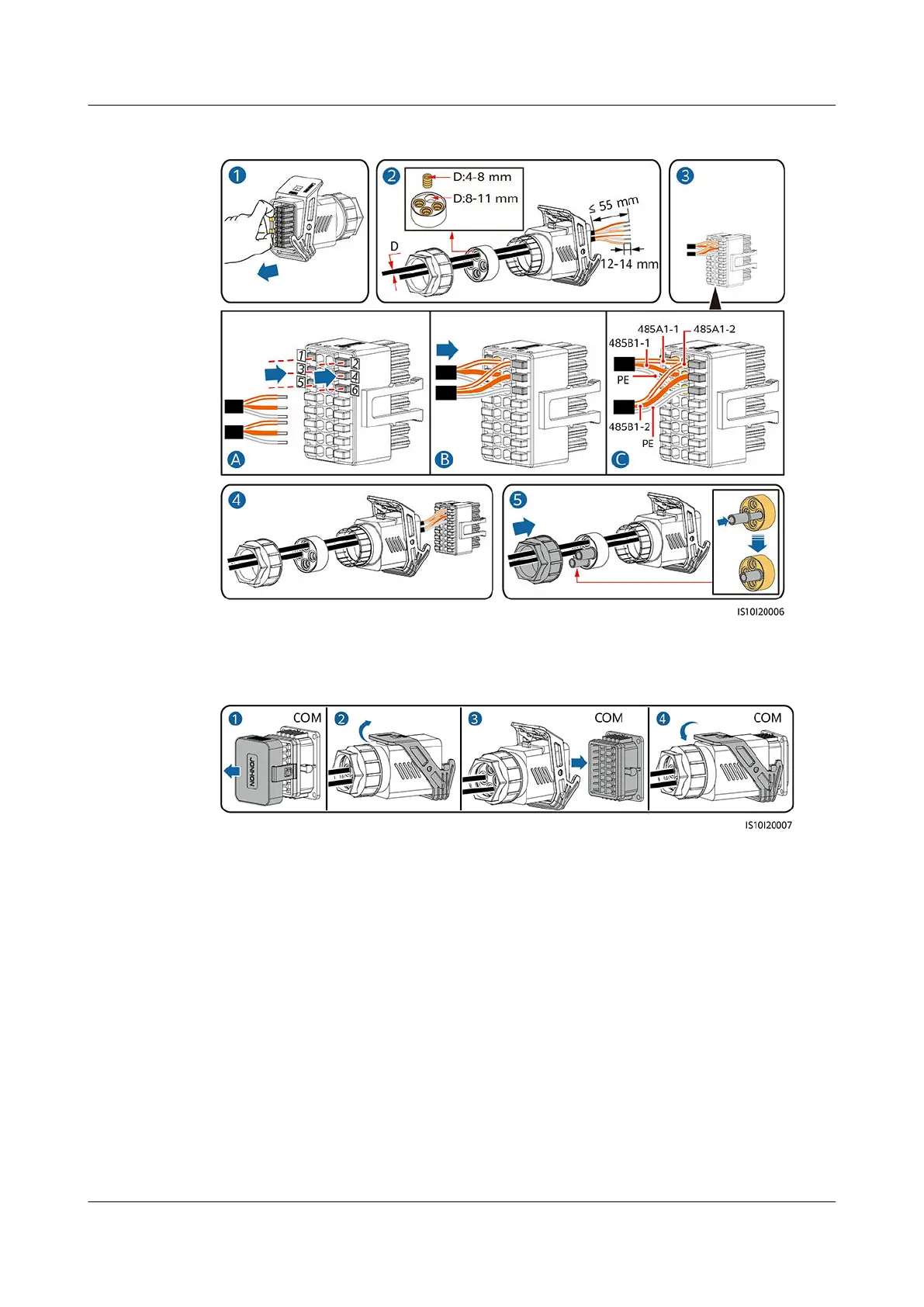

Figure 5-21 Installing the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-22 Securing the signal cable connector
----End
5.7.2 Connecting the RS485 Communications Cable (Smart
Power Sensor)
Cable Connection
The following gure shows the cable connections between the inverter and the
Smart Power Sensor.
SUN2000-(3KTL-10KTL)-M1
User Manual 5 Electrical Connections
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 53
