Type Tool

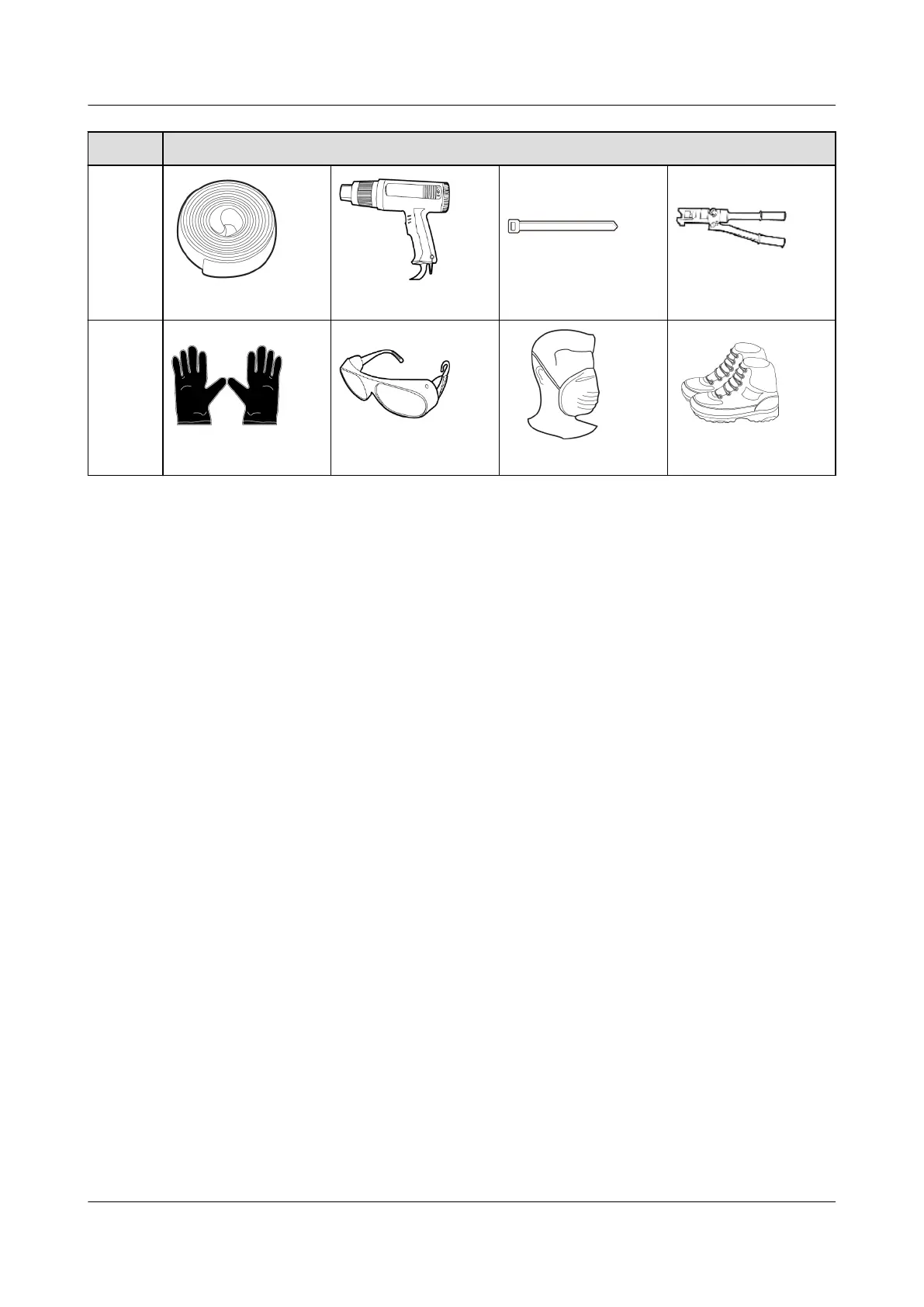

Heat shrink tubing Heat gun Cable tie Hydraulic pliers
PPE
Safety gloves Safety goggles Anti-dust respirator
Safety shoes
4.3 Determining the Installation Position
4.3.1 Environment Requirements
Basic Requirements
The SUN2000 is protected to IP65 and can be installed indoors or outdoors.
Do not install the SUN2000 in a place where personnel are easy to come into
contact with its enclosure and heat sinks, because these parts are extremely
hot during operation.
Do not install the SUN2000 in areas with
ammable or explosive materials.
Do not install the SUN2000 at a place within children's reach.
Do not install the SUN2000 outdoors in salt areas because it will be corroded
there and may cause
re. A salt area refers to the region within 500 meters
from the coast or prone to sea breeze. The regions prone to sea breeze vary
depending on weather conditions (such as typhoons and monsoons) or
terrains (such as dams and hills).
The SUN2000 must be installed in a well-ventilated environment to ensure
good heat dissipation.
Recommended: Install the SUN2000 in a sheltered place or a place with an
awning.
Mounting Structure Requirements
The mounting structure where the SUN2000 is installed must be
reproof.
Do not install the SUN2000 on ammable building materials.
The SUN2000 is heavy. Ensure that the installation surface is solid enough to
bear the weight load.
SUN2000-(3KTL-10KTL)-M1
User Manual 4 Installation
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 20
