Huawei SUN2000-3KTL-M1 User Manual

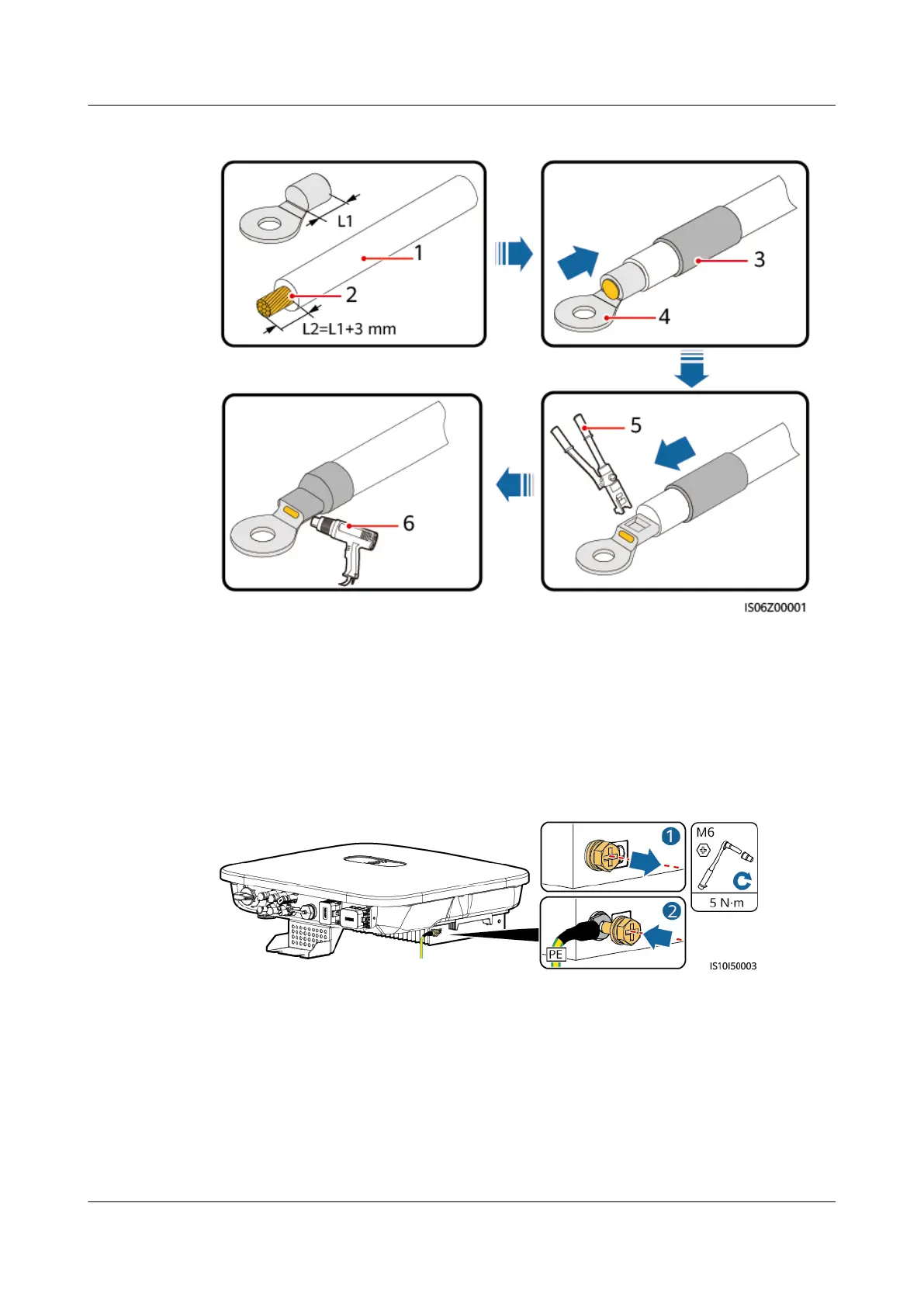

Figure 5-2 Crimping an OT terminal
(1) Cable (2) Core (3) Heat shrink tubing
(4) OT terminal (5) Crimping tool (6) Heat gun
Step 2 Connect the PE cable.
Figure 5-3 Connecting the PE cable
----End
5.3 Connecting the AC Output Power Cable
Precautions
A three-phase AC switch needs to be installed on the AC side of the SUN2000. To
ensure that the SUN2000 can safely disconnect itself from the power grid when an
SUN2000-(3KTL-10KTL)-M1
User Manual 5 Electrical Connections
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 36

Huawei SUN2000-3KTL-M1 Specifications

General

Model	SUN2000-3KTL-M1
Type	String Inverter
Max. DC Input Voltage	600 V
MPPT Voltage Range	90 V - 560 V
Rated AC Output Power	3000 W
Max. AC Output Power	3300 W
Nominal AC Voltage	220 V / 230 V / 240 V
AC Voltage Range	180 V - 280 V
AC Output Frequency	50 Hz / 60 Hz
Max. Efficiency	98.6%
MPPT Trackers	2
DC Inputs per MPPT	1
Max. Input Current per MPPT	11 A
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Max. DC Input Power	4500 W
Communication	RS485
Dimensions (W x H x D)	365 mm x 365 mm x 156 mm
